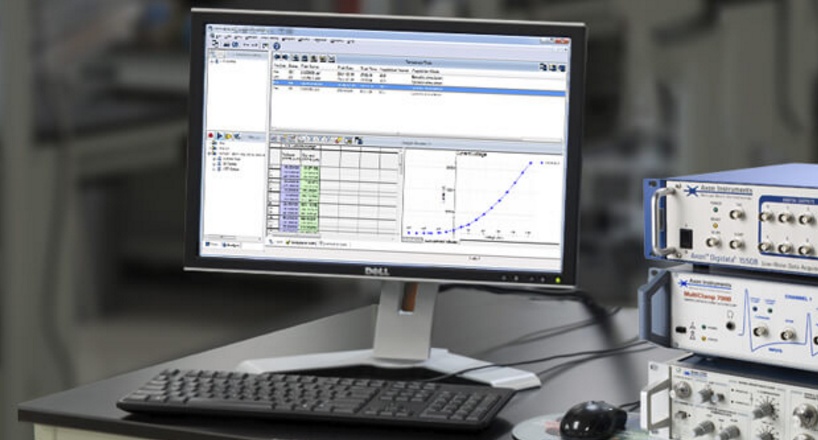

Axon pCLAMP 11 Software Suite

Sophisticated patch-clamp electrophysiology data acquisition and analysis software

Program for Patch-clamp Analysis with the Clampfit Advanced Analysis Module

The industry-leading patch-clamp electrophysiological data acquisition and analysis application, known as the pCLAMP™ Software Suite, is used to control and record voltage-clamp, current-clamp, and patch-clamp investigations. The software bundle comprises of the Clampex 11 data gathering program, the AxoScope 11 background recording software, the Clampfit 11 data analysis software, and the optional Clampfit Advanced Analysis Module.

Create Complex Protocols Quickly

With 50 epochs available instead of 10, the improved protocol editor gives programmers the freedom to create longer, more complex protocols.

Streamline Workflows*

The use of batch analysis macros makes it possible to analyze data files in groups without having to individually declare the parameters for each data set.

Analyze Faster*

Automatic event detection examines post-synaptic data as well as spontaneous and induced action potentials. Determine events using a variety of criteria.

Features

Tools for Extensive Analysis

Many analysis tools are included in the software, such as 24 cursor pairs for searching for locations of interest, graph displaying tools including the I-V plot and histogram, and more.

Enhanced Visualization

Several channels can be controlled more easily thanks to the membrane testwindow's simultaneous display of up to eight channels.

Enhanced Gap-free Mode

A straightforward continuous "chart-recorder" excellent for tracking single channel events, minis, and other unplanned activity. Program digital or analog outputs as well as epochs designed for protocol editors can be used.

Population Spike Analysis*

The amplitude, area under the curve, half-width, decay and rise duration, decay and rise slope, spike coastline, and paired pulses are all automatically calculated by this program.

Action Potential Analysis*

Automatic detection and analysis of amplitude, APD90, rise and decay duration, rise and decay slope, peak-to-peak frequency and time, among other parameters, are provided by this function.

Batch Analysis*

It is not necessary to define parameters for each data set when using macros for batch analysis. Several data sets can be analyzed automatically using saved macros.

*Clampfit Advanced Analysis Module only
