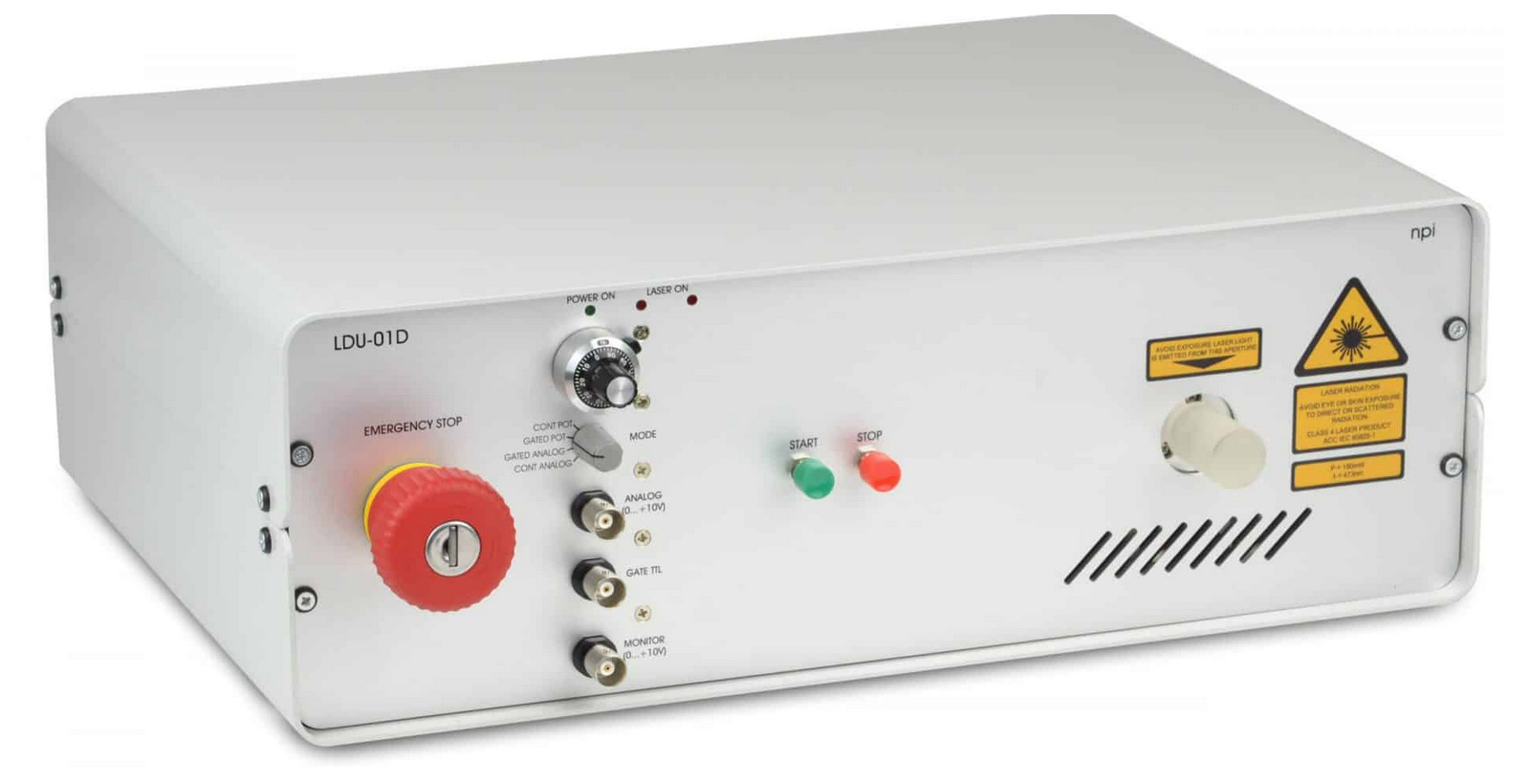

LDU-01D – Laser Driver Unit

Specifications as an example for the 473 nm version:

Wavelength: 473 nm

Laser output power: 200 mW

Analog input: 0…10 V, BNC connector

TTL input: 0…5 V, BNC connector

Monitor output: 0…10 V, BNC connector

Dimensions: (W x D x H) 365 mm x 260 mm x 130 mm

Input power: 12 V, 10 A

Ordering Information

The LDU-01D is available with different laser modules. Each LDU-01D can house one laser module. A complete system consists of the LDU-01D + LDU-L-XXX (with XXX as wavelength in nm).

• LDU-01D: Laser Driver Unit: Desktop housing for solid state laser; Control via TTL, analog input or manually (10-turn potentiometer); Solid state laser needs to be ordered separately
• LDU-L-360: Solid state laser module for LDU-01D; Wavelenght: 360 nm; Power output at fiber end > 70 mW
• LDU-L-473: Solid state laser module for LDU-01D; Wavelenght: 473 nm; Power output at fiber end > 100 mW
• LDU-L-589: Solid state laser module for LDU-01D; Wavelenght: 589 nm; Power output at fiber end > 100 mW
