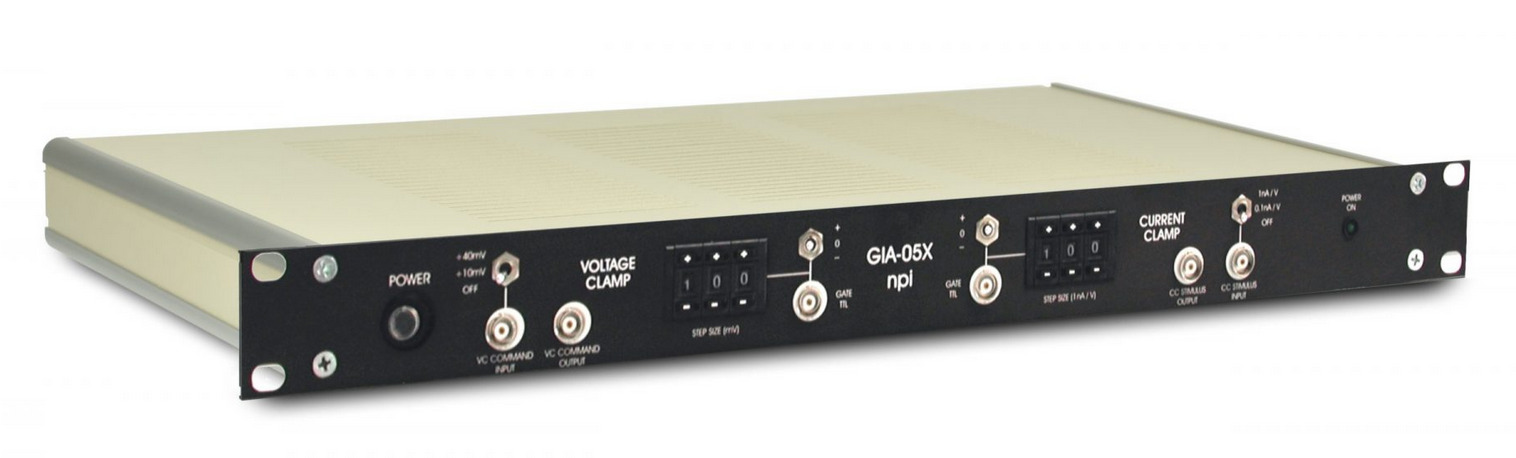

GIA-05X – Gating Unit for SEC-05X

Npi's GIA-05X facilitates straightforward management of voltage clamp and current clamp signals incorporating TTL control into your SEC-05X.

Advantages of the GIA-05X

Incorporate TTL control into your SEC-05X
Facilitates straightforward management of voltage clamp and current clamp signals

Dual channel input unit designed for the SEC-05X or SEC-05LX single electrode amplifier
Enables the gating of a stimulus with an amplitude predetermined by a digital potentiometer
One channel functions as a voltage command in Voltage Clamp (VC) mode
The second channel serves as a current stimulus in Current Clamp (CC) mode
Encased in a compact 19″ rackmount cabinet featuring an integrated power supply
Connected to the input BNCs of the SEC-05 system
Each channel includes an analog input BNC GATE input along with digital control for step size

OPERATING RANGE: ±10 Volt

INPUT: BNC connector, impedance 100 kΩ, maximum voltage ±10 V

SCALING VC: ±10 mV or ±40 mV, selected by toggle switch

SCALING CC: 1 nA/V or 0.1 nA/V, selected by toggle switch

STEP SIZE: VC: 1 mV – 999 mV; CC: 0.01 nA – 9.99 Na

OUTPUT: BNC connector, impedance 50Ω, maximum voltage ±10 V

GATE TTL INPUT: 10 kΩ, LO: <2 V; HI: 3 V – 5 V

DIMENSIONS: 19” rackmount cabinet, 19” (483 mm), 10” (250 mm), 1.75” (44 mm)

POWER REQUIREMENTS: 115/230 V AC, 60/50 Hz, fuse 0.4/0.2 A, slow

SEC-GIA SEC Gating Unit for SEC-05
