EPMS Housing

Advantages of the EPMS housing

• A stable cabinet that supplies power and bus lines for modules
• Facilitates the construction of intricate recording/signal conditioning setups through the use of an internal bus connection
• Includes amplifiers, application systems, stimulators, and signal processing devices

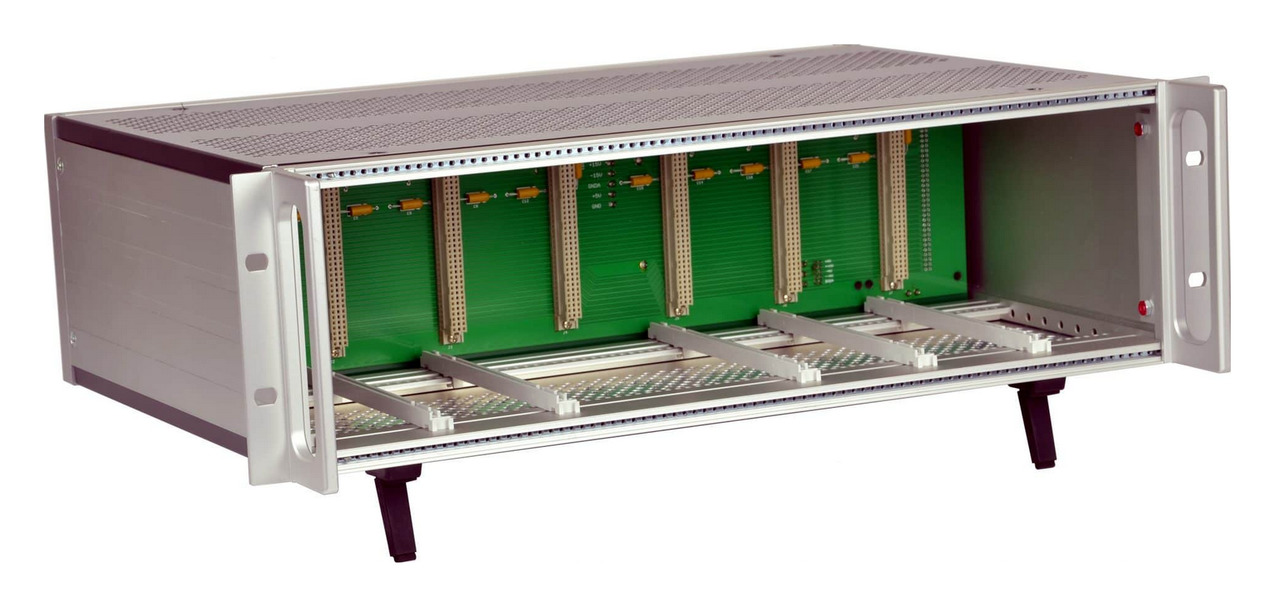

EPMS-07

The EPMS-07 is a modular system designed for the measurement and/or processing of bioelectrical signals in the field of electrophysiology, as well as for the application of substances in pharmacology.

This system is contained within a 19" rackmount cabinet (3U) that includes a power supply and accommodates up to 7 plug-in units, depending on the module width.

Modules can vary in width, being 1, 1.5, 2, or 3 units wide. The total width of modules in a single 19" cabinet must not exceed seven.

The plug-in units connect to the mains via a bus located on the rear panel.

EPMS-H-07

In addition to the standard power supply provided with the EPMS-07, the EPMS-H-07 features an integrated high voltage power supply. This is essential for all MVCS / MVCC modules, including the HVA-100, HV-TR150, and HVC-03M modules. The output voltage is contingent upon the modules being utilized.

EPMS-E-07

This model operates with an external power supply (EPMS-PWR-03D, which must be ordered separately).

EPMS-03

The EPMS-03 is a modular system intended for the measurement and/or processing of bioelectrical signals in electrophysiology and the application of substances in pharmacology.

This system is housed in a unit that includes a power supply and can accommodate up to 3 plug-in units, depending on the module width.

The plug-in units are connected to the mains through a bus located on the rear panel.

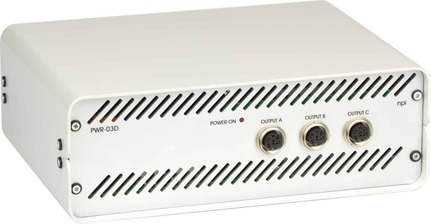

EPMS-PWR-03D

Power supply designated for EMPS-E-07 systems.

The external power supply EPMS-PWR-03D is capable of powering up to three EPMS-E housings. Each housing connects via a 6-pole cable from one of three connectors located on the front panel of the EPMS-PWR-03D to the rear panel of the corresponding EPMS-E housing.
