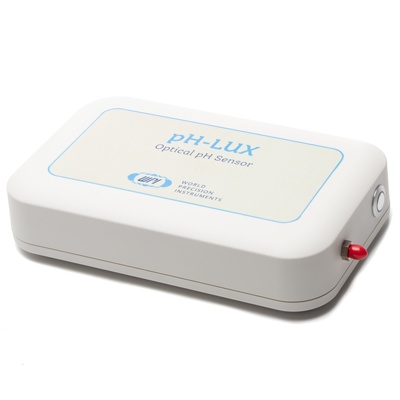

pH-LUX Optical pH Sensor System

This product is discontinued.

The pH??�LUX Optical Sensor System is optimal for measuring pH in the physiological range [5.5-8.5].

The physiological pH range [5.5-8.5] is best measured with the pH-LUX Optical Sensor System.

Features

Rapidity of response
Superior dynamic range compared to current optical technologies
Extraordinary optical sensor with reduced drift
On request, macro and micro tip sizes are available
Immunity to electromagnetic interference (EMI)
Internet-based interface choice and Ethernet connectivity for remote observation

pH transient alterations are captured precisely
Reduced out-of-pocket expenses for a basic optical pH sensor system
Use your computer, phone, or tablet to collect data.
pH profiling in difficult-to-reach locations with a small footprint and micro sensing tips
The pH-LUX system is perfect for measuring neural activity because there is no electrical current at the sensor heads

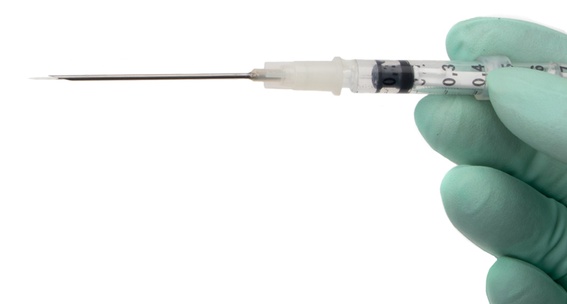

Fixed and retractable sensor configurations with a minimum sensor size of 100 µm in a syringe.

100 µm minimum sensor size in a syringe

Range: pH 4-10

Precision: 1%

Accuracy: 2% of scale

Response time: < 30 seconds

Temperature range: 0-50ºC, probe can have temperature sensor

Salt resistant/non-interfering: up to 1M NaCl or KCl

Theory of measurement: Fluorescent intensity
