Mini DipTip?„? - Smallest Fiber Optic Dipping Probe

Easy measurements of small volumes are made possible by the Mini DipTip™ microliter sample probe.

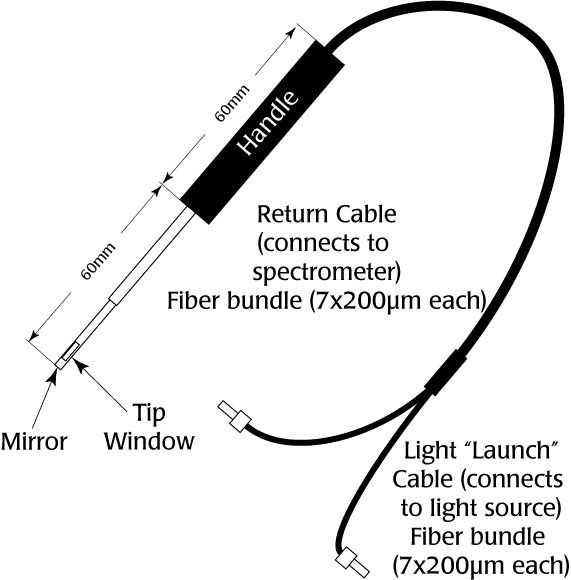

The outside diameter of a Mini DipTip™ is only 1.5 mm, or the same size as a 17-gauge needle. It is a handy instrument for measuring protein and DNA samples and will fit into all micro centrifuge tubes available on the market. A dissolving mechanism can also be employed with the little dipping probe.

The Mini DipTip can be used with one of the following to evaluate microliter samples affordably:

• The Fiber optic-based spectrometer (Tidas-E Base Series Photo Diode Array Spectrometer) and a light source (D2H and FO-6000)
• A spectrophotometer (Tidas S300 Series e.g. pn 505067)

Multi-channel applications work best with the Mini DipTip.

• Compatibility with fiber optic spectrometers, light sources, and spectrophotomers (SMA 905)
• Available light pathlengths are 2, 5, and 10 mm.

Using a Tidas 100 spectrophotometer, DNA samples (with a sample volume of 50 µL within small centrifuge PCR vials) were analyzed in PBS with concentrations ranging from 0 to 43 g/mL.

Benefits

• Connects through a 600 µm connection to the majority of common spectrometers.
• Suitable for mobile applications

Applications

• Protein and DNA sample measurements
• Dissolution system

A tiny transmission probe for microliter spectroscopic sample is called a Mini DipTip™. The tip diameter of the Mini DipTip is only 1.5 mm, about the size of a 17-gauge needle. All commercially available micro centrifuge tubes will accept it. When you use the Tiny DipTip™ along with one of the following, you may analyze microliter samples without incurring large expenses:

• TIDAS E Base with FO-6000 or D4H
• LEDSpec
• TIDAS S300 series
• Suitable with the majority of fiber-coupled spectrometers
• The best for multi-channel applications with LEDSpec
