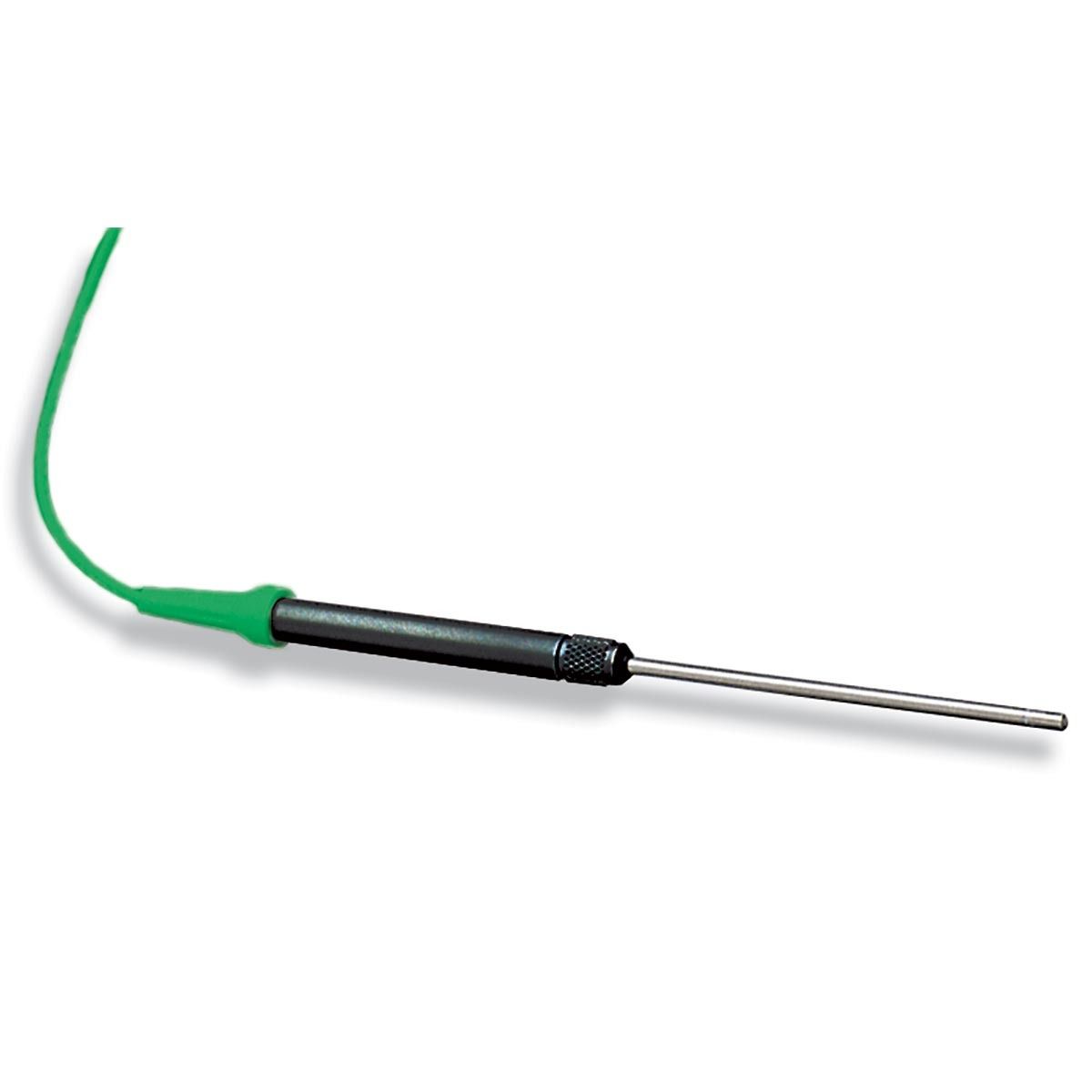

ISO-OXY-2 Oxygen Sensor - 2mm

Analyze biological samples quantitatively and directly.

Key Features

• Liquids, ions, and particulate particles are blocked by a gas permeable polymer membrane sleeve.
• Reference electrode built-in
• For use with Apollo1000, Apollo4000, TBR4100 and TBR1025
• Response Time: < 10s
• Detection Limit: 0.1% to 100%
• Drift: <1%/min
• Package of 1

Benefits

• A Clark type oxygen sensor with a tip size of 2 mm can be used to measure oxygen levels in very small volumes.

Applications

• Cell culture, cell suspensions
• Cell tissue measurements

The oxygen-sensing element and independent reference electrode are included within a single shielded design in this sensor, which uses WPI's own combination electrode technology. The end of the sleeve is fitted with a gas-permeable polymer membrane that allows oxygen to pass through while obstructing liquids, ions, and particulate debris.

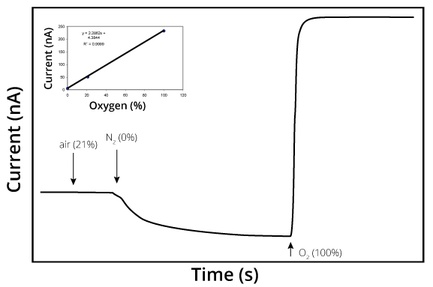

Oxygen permeates the membrane. When the monitoring device is turned on and the sensor is properly connected, the voltage applied to the sensor is maintained at -0.7V. The rate of diffusion through the membrane determines the size of the electrical current that is created. The rate and the partial pressure of oxygen outside the membrane are related. The flow rate is used to calculate the partial pressure of oxygen.

The 2.0 mm stainless steel ISO-OXY-2 sensor has a refillable internal electrolyte (#7326) and interchangeable membrane sleeves (5378).

NOTE: The 10mL filling solution (#7326), 1cc syringe, MF28G67 MicroFil needle, and two extra membrane sleeves are included with the 2mm biosensors.
