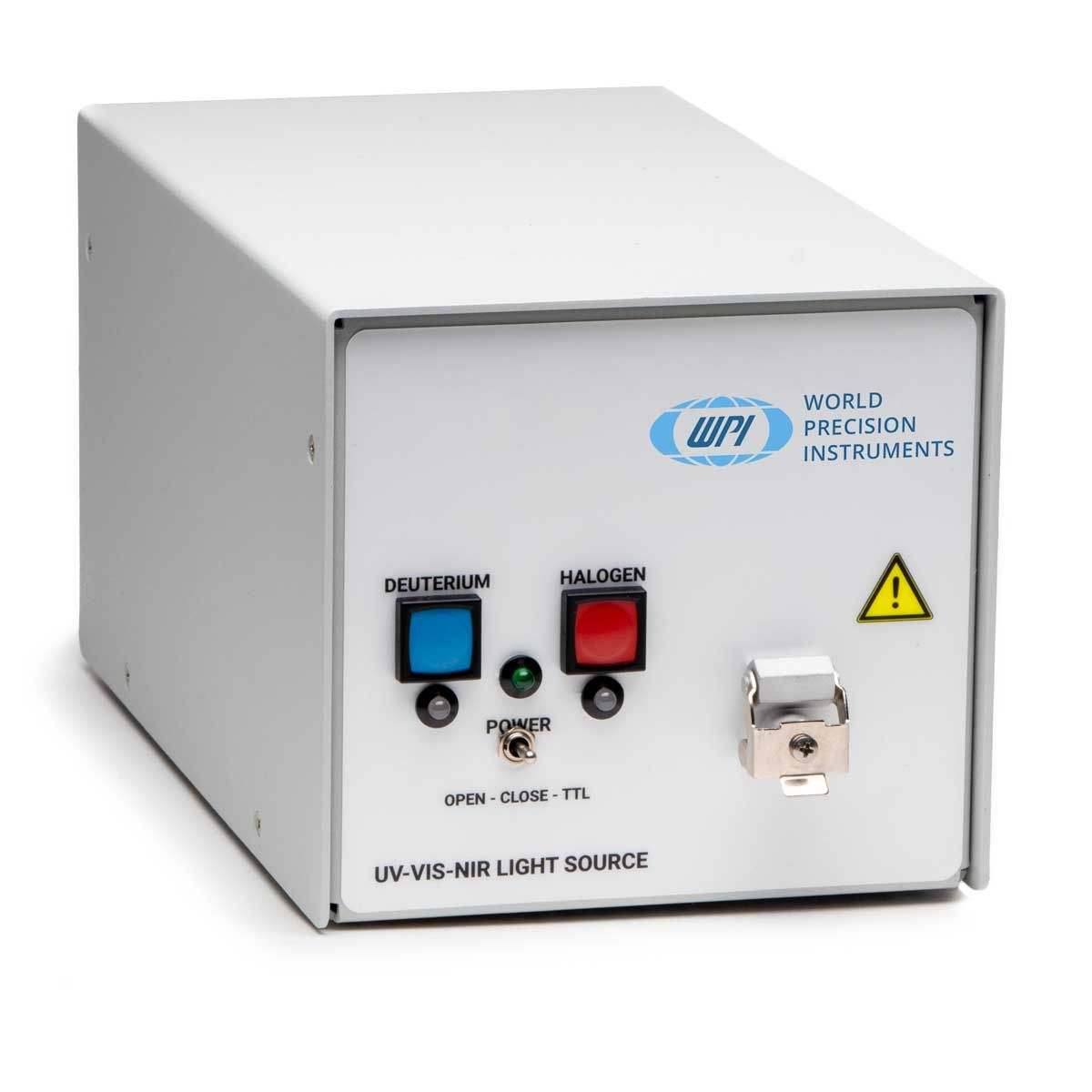

D4H Deuterium/Halogen Fiber Light Source

Key features

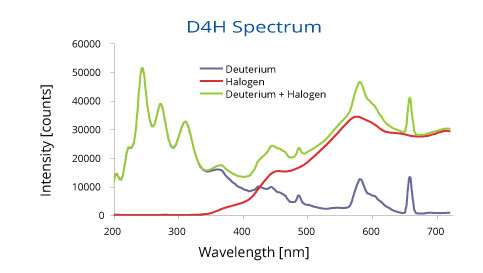

• Constant spectrum between 200 and 1700 nm
• Switch-equipped integrated shutter with TTL control
• Fiber optic connection using SMA
• Control for separate UV and VIS bulbs
• High productivity: twice as intense (compared to conventional models)
• Extreme stability
• 2000 hours for a long life lamp
• External Management
• The Shutter Function

Benefits

• Matched halogen and deuterium bulbs
• Fiber optic probes and flow cells from WPI have matched optical output
• Low drift < 1 mAU/h @ 254 nm
• Easy light bulb replacement

Applications

• UV/VIS/NIR absorbance spectroscopy
• Excitation light source for fluorescence applications
• Colored Dissolved Organic Matter (CDOM) detection in seawater
• Nutrient Analysis in fresh water, drinking water and seawater using WPI's LWCCs
• Protein detection using WPI's V-Vette or DIP UV MINI fiber optic probes

A combined deuterium and halogen light source called the D4H is used in UV/VIS and NIR applications. The spectrometer modules and sample cells from WPI can be used with this light source with no problems. From 200 nm to 1700 nm, it offers a continuous spectrum in the UV, VIS, and NIR ranges. A switch or TTL signal can operate the integrated electrical shutter that is part of the D4H.
