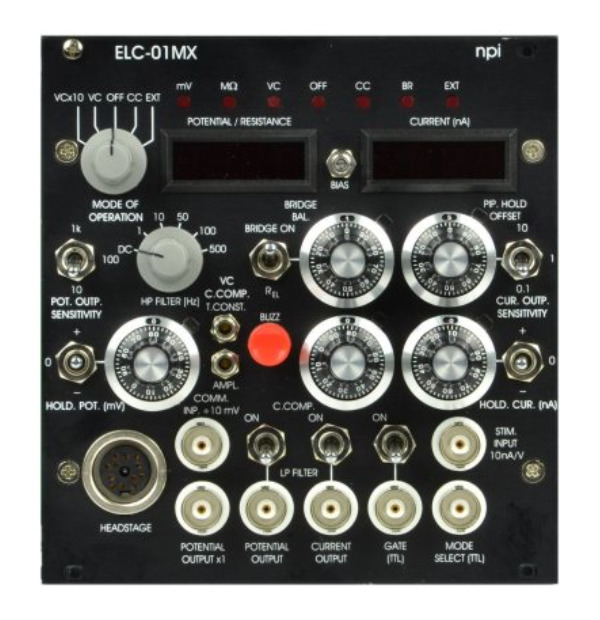

Specifications of the ELC-01MX
Input voltage range: ±12 V
Operating voltage: ±15 V
Enclosure: Size: 23 x 70 x 26 mm, grounded
Dovetail: Size: 70 mm x 17 mm x 3 mm
Electrode connector: BNC with driven shield
REF connector: SMB connector
Ground connector: 2.4 mm connector
Input resistance (CC): >1013 Ω (internally adjustable)
Current range:
- ±100 nA max. (100 MΩ feedback, x1 range)
- ±1.0 µA max. (10 MΩ feedback, x10 range)
- ±10 µA max. (1 MΩ feedback, x100 range)
- ±10 nA max. (1 GΩ feedback, x0.1 range)
OFFSET: range ±100 mV, ten-turn control
CAPACITY COMPENSATION: range 0 – 30 pF, ten-turn control
BIAS: range ±100 pA, ten-turn control
BRIDGE BALANCE: 0-100 MΩ, adjustable with ten-turn control
Sensitivity 1 mV / MΩ application of square current pulses ±1 nA
Display: 3 ½ digit, XXX MΩ, activated by key switch (same as POTENTIAL display)
Full power bandwidth (REL = 0 MΩ): 25 kHz
rise time (10% – 90%):
- <15 µs (REL = 100 MΩ)
- <8 µs (REL = 5 MΩ)
Output impedance: 50 Ω
Max. voltage: ±12 V
Current output: BNC connector, sensitivity 10…10 V/nA,
Current output sensitivity: 3-position switch 10, 100, 1k V/nA
Current display: 3 ½ digits, XX.XX nA, resolution 10 pA
Current LP filter: 1-pole BESSEL filter
attenuation: -6 dB/octave
corner frequencies (Hz): 2k
Potential output x1: BNC connector, sensitivity 1 V/V
Potential output: BNC connector, sensitivity 10…1k V/V
Potential output gain: Rotary switch, 10, 20, 50, 100, 200, 500, 1k
Potential output resolution in AC: 50 µV
Potential LP filter: 1-pole BESSEL filter
attenuation: -6 dB/octave
corner frequencies (Hz): 2k
Potential HP filter: 1-pole filter, (other options available)
attenuation: -6 dB/octave
corner frequencies (Hz): DC, 1, 10, 50, 100, 500
Display mV/MΩ: 3 ½ digits, XXXX mV or XXX MΩ
Display current: 3 ½ digits, XX.XX nA
Input impedance analog: 100 kΩ
Input range: ±12 V
Input impedance digital (TTL): 10 kΩ
Input range TTL: 0-5 V
Current stimulus input CC: via BNC connectors, sensitivity 10 nA / V
Step gate input: via BNC connector (TTL)
Gated stimulus CC: with ten-turn control of holding current resolution: 100 pA, range: ±100 nA
Polarity: selectable with toggle switch
Voltage command input VC: via BNC connectors, sensitivity: ÷10 mV
Voltage command input VCx10: via BNC connectors, sensitivity: ÷1 mV
Step gate input: via BNC connector (TTL)
Gated stimulus VC: with ten-turn control of holding potential resolution: 1 mV, range: ±1 V
Gated stimulus VCx10: with ten-turn control of holding potential resolution: 10 mV, range: ±10 V
Polarity: selectable with toggle switch
Dimensions: Module for EPMS-07 system, width: 2 U
Power requirements: Supply power is provided by EPMS-07
Ordering Information
- ELC-03XS Universal Amplifier
- ELC-MOD Cell Model Circuit for ELC System (passive)
- ELC-PRS Remote Switch for Penetration Unit
- ELC-EH-SET Electrode Holder Set for ELC Amplifiers
- ELC-EH Standard Micro-/Patch Electrode Holder
- ELC-HS ELC Headstage
- ELC-DIFF Surplus for Differential Headstage for ELC Amplifiers
- ELC-SWI-M Surplus for switchable Headstage, x1/x100
- ELC-MINI Miniature headstage for ELC-series amplifier. Many different configurations available for in-vivo or in-vitro use, housing and cable options.
Please contact us for further information and prices.
