TMR-01B – Timer

Npi's TMR-01B timer generates a (periodic) TTL output signal pattern, allowing the user to modify the initial delay, number of cycles, pulse/burst duration, and burst frequency.

Overview
Specifications
Links

Advantages of the TMR-01B

No requirement for a PC
Ability to program protocols for stimulation or electroporation
Simple selection for the number of cycles

Versatile Timer

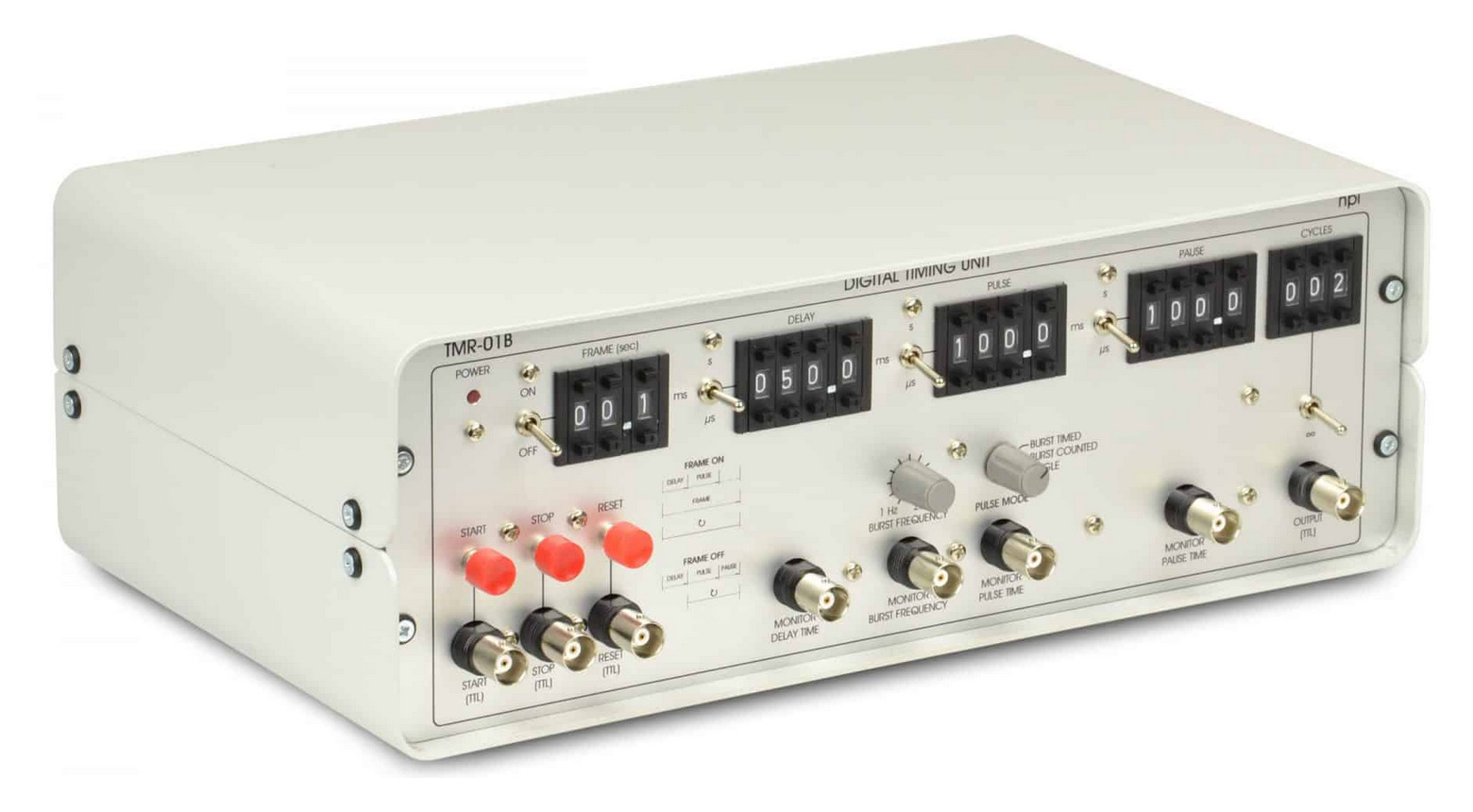

The TMR-01B has been crafted as a user-friendly device for producing rectangular pulses of consistent amplitude. This timer generates a (periodic) TTL output signal pattern, allowing the user to modify the initial delay, number of cycles, pulse/burst duration, and burst frequency.

Features

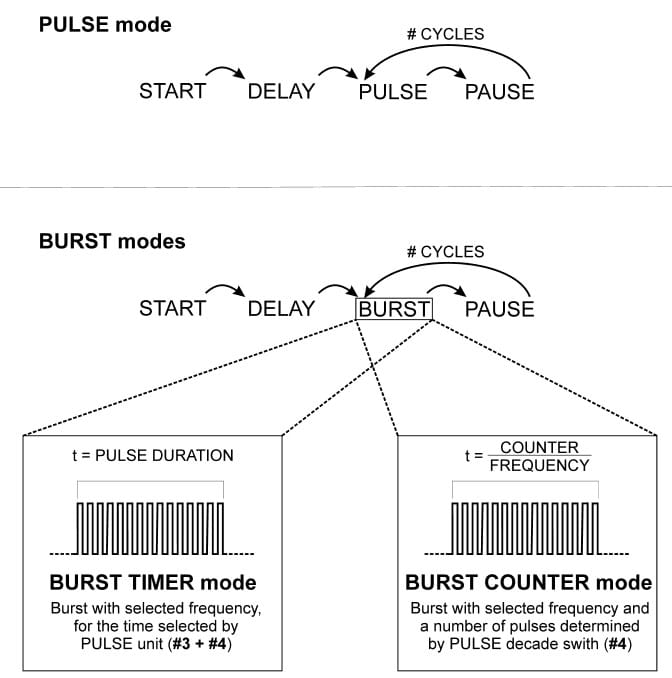

PULSE or BURST
Two timing modes:
- Fixed cycle length
- Adjustable PULSE + PAUSE
Monitors DELAY TIME, BURST FREQUENCY, and PULSE TIME
Manual or TTL-controlled START, STOP, and RESET
Timing configured through digital push button controls
Ability to cascade multiple TMR-01B units for intricate stimulation patterns
Perfect for gating stimulation, amplifiers, iontophoretic, and pneumatic drug delivery systems

Specifications of the TMR-01B

Input: TTL (0 … 5V), impedance: 10kΩ

Output: TTL (0 … 5V), impedance: 50kΩ

Burst Frequency: 2 … 200Hz

Timing error: max. 1 digit

Power requirements: 9 … 12V DC, 1A min.; power supply (provided)

Dimensions: 305 x 180 x 105 mm3 (W x D x H)

Ordering Information

EXB-EXT-02B EXT-02B Two Channel Low-cost Extracellular Amplifier (master version)
EXB-EXT-02BS EXT-02B Two Channel Low-cost Extracellular Amplifier (slave version)
EXB-HS Standard Headstage for EXT-2B Amplifier
EXB-AUDIS-08B AUD-08B Audio Monitor System for EXT-02B
EXB-RES-08B REL-08B Electrode Resistance Meter for EXT-02B
TMR-01B TMR-01B Low-cost Digital Timer Unit (desktop)
ISO-01B ISO-STIM-01B Low-cost Isolated Stimulator Unit (desktop, needs battery pack)
ISO-01BP ISO-STIM-01B Low-cost Isolated Stimulator Unit (desktop, needs power supply)
ISO-01B-ACCU Battery Pack (80 V) with charger
ISO-01B-PWR Power Supply for ISO-01B
