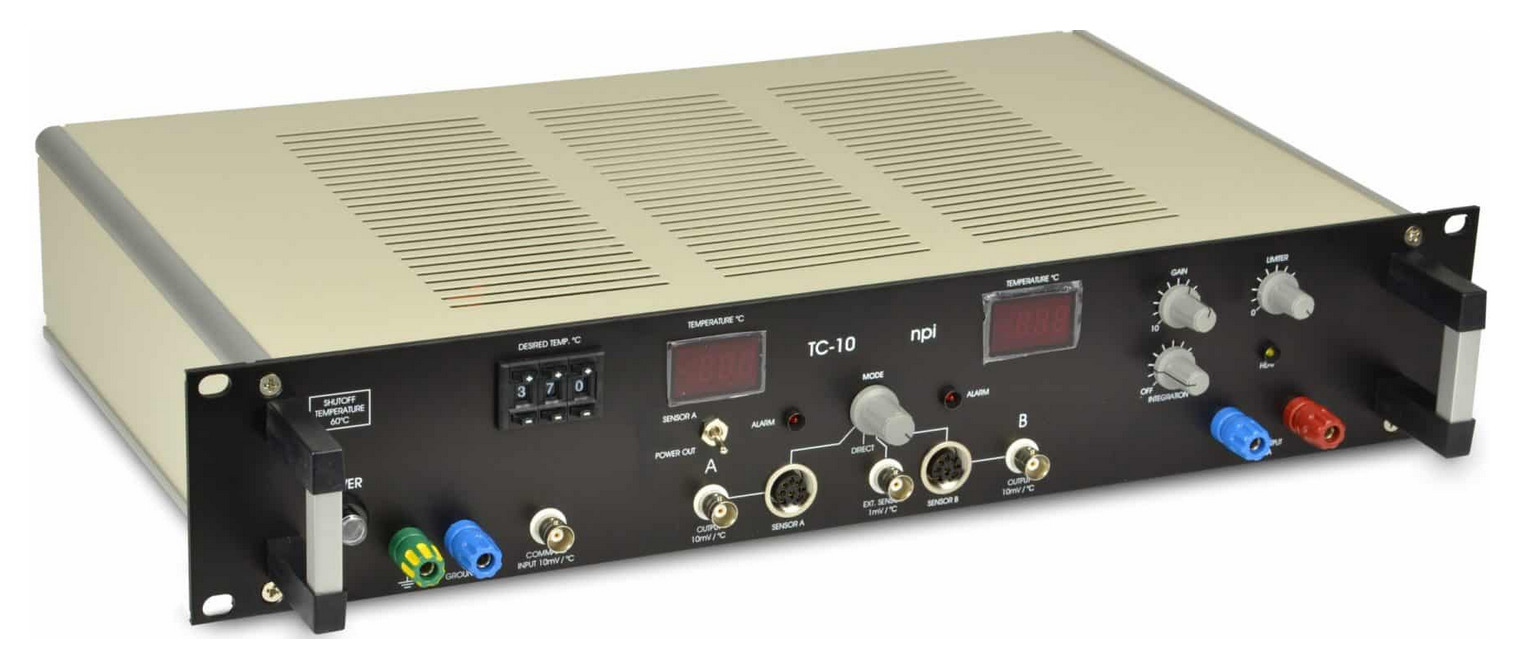

TC-10/20 – Temperature Controller

Npi's TC-10/20 is a single/dual channel temperature controller for heating only in electrophysiological experiments.

Overview
Specifications
Links

Advantages of the TC-10/20

Temperature regulation in delicate electrophysiological recordings
No switching artifacts due to analog control
No electrical interference from linear power supply
Compatible with a wide range of devices – adjustable feedback speed

Single/Dual Channel Temperature Controller for Heating Only

The TC-10 and TC-20 temperature control systems are specifically designed for heating applications in electrophysiological experiments. The TC-10 features one temperature control channel along with an additional thermometer, while the TC-20 offers two independent temperature control channels. Both systems are housed in standard 19" cabinets, equipped with built-in power supply and cooling components for the power devices. The TC-10/20 system ensures low noise operation and includes special protective features to safeguard the preparation from damage.

Each system includes two electronic thermometers for small temperature sensors (the standard is R2252, meaning the sensor has a resistance of 2252 Ω at 25 °C, or optional PT100, which has a resistance of 100 Ω at 0 °C), two digital temperature displays (XX.X °C), a set-point control with direct readout (XX.X °C), a PI (proportional-integral) controller with adjustable parameters, an output power control unit, and a high-power output stage (DC, continuous operation) for resistive (i.e., heat only) loads with electronic protection circuits. The power outputs are protected against short circuits, and the output power is electronically limited. The maximum output voltage is approximately 12 V, with a current limit of 2 A.

The system can be connected to the thermistors/heating elements in two ways:

Using separate cables for the sensors and the heating element, or
Using the ALA DIN cable assembly that connects both sensors and heating elements, for example, ALA HPC-G.

The TC-20 controller is supplied with a power cord and a user manual. Sensors must be acquired separately.

Features:

Low-noise temperature regulators
exclusively for heating
Available in single-channel and dual-channel configurations
19-inch rackmount enclosure
DIN connector compatible with ALA scientific heating equipment

Specifications of the TC-10/20

SENSOR INPUT: for semiconductor 2252 Ω at 25 °C (standard) or platinum 100 Ω at 0 °C, accuracy typically 0.1 °C at 25 °C, with electronic protection

SENSOR INPUT (EXT. Mode):1 mV / °C

ALARM and SHUTOFF: disconnects POWER OUTPUT if temperature is below +3 °C (not connected or broken sensor) or above +60 °C (short circuited sensor)

DIGITAL DISPLAYS: 3 1/2 digits, XX.X °C (temperature of SENSOR A or B) or XX.X V (voltage at power output)

COMMAND INPUT: analog input, 10 mV / °C, via BNC connector

SET VALUE CONTROL: digital control, range 5-60 °C, XX.X °C or 0-100% of output voltage (DIRECT mode)

TEMPERATURE OUTPUT (A, B): analog outputs, 10 mV / °C, via BNC connector, output impedance: 250 Ω

POWER OUTPUT:

12 V / 2 A, short circuit protected, continuous DC (TC-20)
12 V / 2.5 A, short circuit protected, continuous DC (TC-10)

LIMITER: control for the output voltage with a linear range from 0 – 100 %

CONTROL: PI (proportional-integral) controller, accuracy typically ±0.2 °C, gain range 10-10k, integration time 50 ms – 20 s (logarithmic scale)

MEASURING ACCURACY: 0.1 °C at 25 °C

POWER REQUIREMENTS: 115 / 230V AC, 60 / 50 Hz,

DIMENSIONS: 19″ rackmount cabinet 19″ (483 mm), 10″ (250 mm), 3.5″ (88 mm).

Ordering Information

TC-10 One channel temperature controller, for heating
TC-20 Two channel temperature controller, for heating
TS-100 Temperature sensor for TC/PTC/MTC systems
