Advantages of the MTC-20/2SD
- Temperature regulation in delicate electrophysiological recordings
- Absence of switching artifacts owing to analog control
- No electrical interference due to linear power supply
- Simplified perfusion heating

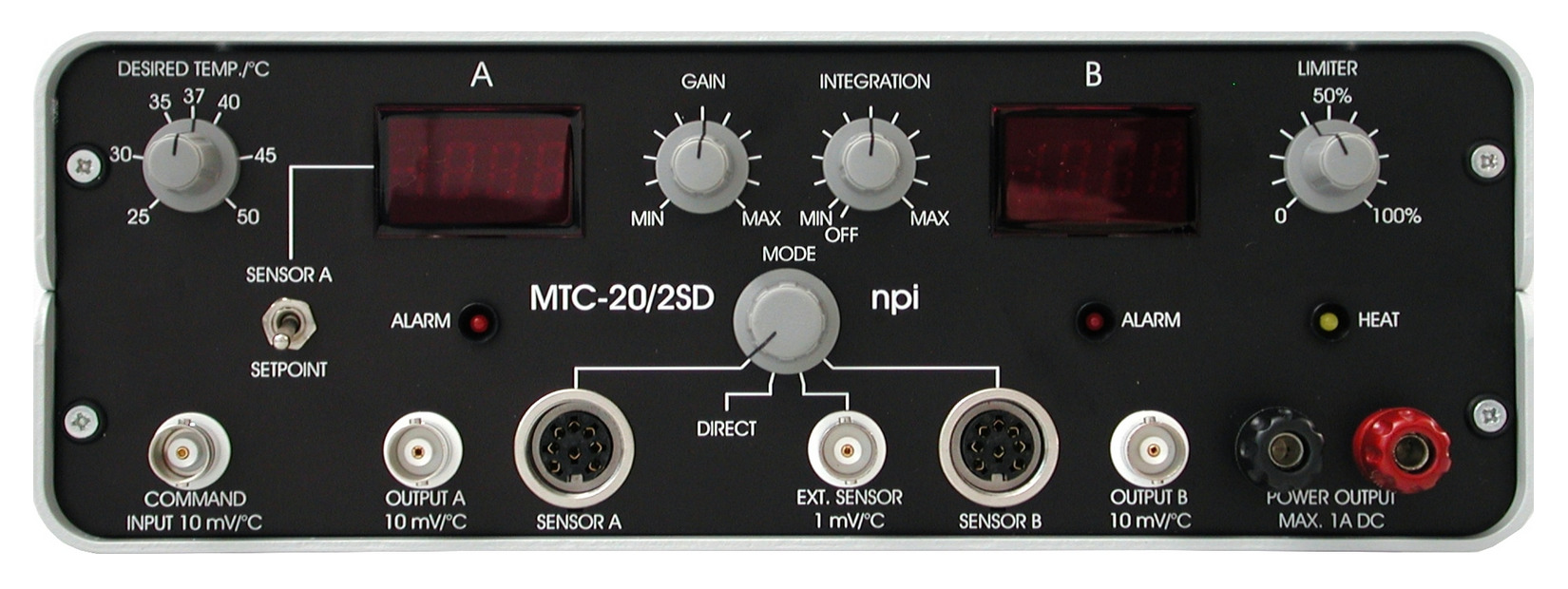

Desktop Temperature Controller
The MTC-20/2SD serves as a single-channel temperature regulator designed for heating in electrophysiology experiments. It resembles the TC-10, differing with reduced output power and a more affordable price.
Specifications of the MTC-20/2SD
Sensor input: for semiconductor 2252 W at 25 °C (standard), accuracy typically 0.1 °C at 25 °C, with electronic protection
Sensor input (EXT. Mode): sensitivity: 1 mV/°C
ALARM and SHUTOFF: disconnects POWER OUTPUT if temperature is below +3 °C (not connected or broken sensor) or above +60 °C (short circuited sensor)
Digital displays: 3 1/2 digits, XX.X °C (temperature of SENSOR A or B) or XX.X V (voltage at POWER OUTPUT)
COMMAND INPUT: BNC connector, analog input, sensitivity. 10 mV/°C
Set value control: potentiometer, range: up to 50.0 °C, XX.X °C
Temperature OUTPUT (A, B): BNC connector, analog outputs, sensitivity. 10 mV/°C, output impedance: 250 W
POWER OUTPUT: 12 V / 1 A, short circuit protected, continuous DC
Limiter: potentiometer for the maximum output voltage with a linear range from 0 – 100 %
Control: PI (proportional-integral) controller, accuracy typically ±0.2 °C
GAIN: potentiometer, logarithmic scale, range: 10-10k
INTEGRATION: potentiometer, logarithmic scale, time range: 50 ms – 20 s
Measuring accuracy: 0.1 °C at 25 °C
Power requirements: 115V / 230V AC, 60 / 50 Hz, fuse 0.8A / 0.4A slow
Dimensions: desktop cabinet, 246 mm, 260 mm, 90 mm
Ordering Information
- MTC-20/2SD MTC-20/2SD Microscope Stage Temperature Controller
- TS-100 Temperature sensor for TC/PTC/MTC systems
