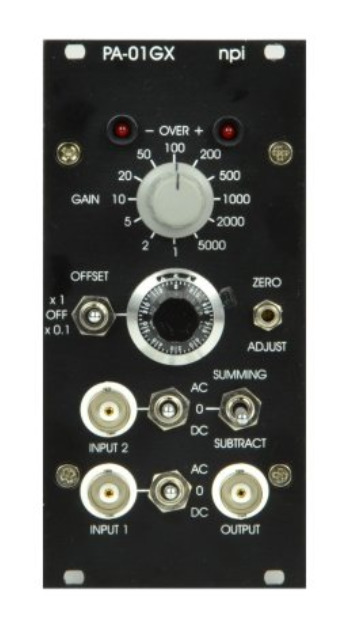

PA-01GX – Summing/Subtraction Amplifier

Npi's PA-01GX serves as a summing and subtraction amplifier module utilized in diverse online analysis methods.

Benefits of the PA-01GX

NPUT RANGE: ±12 V

INPUT IMPEDANCE: 1 MΩ related to ground

input capacitance: 30 pF

AC-COUPLING AT INPUT: Corner frequency of 1 Hz

OFFSET COMPENSATION: ±1 V (x1) or ±100 mV (x0.1)

GAIN: Rotary switch: 1-2-5-10-20-50-100-200-500-1000-2000-5000

OUTPUT IMPEDANCE: range: ±12 V into 1 kΩ / ±1 V into 50 Ω

DIMENSIONS: front panel 12 HP (60.6 mm) x 3U (128,5 mm), 7″ (175 mm) deep
