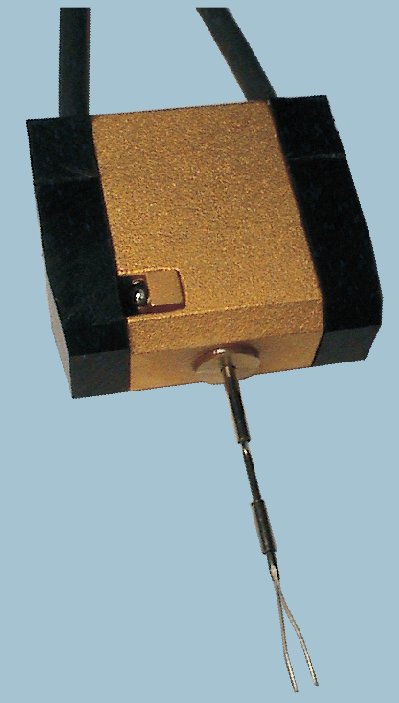

SI-H Force Transducers

This product is discontinued.

KG series mechanical sensors are designed to measure force over a wide range. A resolution of 0.2 ?�N makes it possible to measure the force exerted by an individual cardiomyocyte.

Overview
Specifications

Features:

For use with the SI-BAM21-LC or SI-BAM21-LCB ONLY
For use with the SI-H line of muscle testers
Nearly insensitive to light and temperature
Incredibly linear
Practically unbreakable under typical use

See Options for part numbers

For specific optical transducer force ranges, get in touch with WPI.

At the push of a button, different transducer bodies can be switched out, set, and zeroed to the same bridge amplifier. The system is ready for operation after a quick calibration using a suitable weight.

Options

Order code	Size
SI-KG2	0-2N, 0-200g
SI-KG4	0-50mN, 0-5g
SI-KG4A	0-20mN, 0-2g

Mounting Devices

There are several practical fiber mounting tools offered in two lengths and two shaft sizes.

Length:

For conventional, isometric forces, the 32mm length is perfect.
When working with a motor, go with the 22mm length.

Shaft diameter :

Use the 0.8mm for the KG4 and KG7B force transducers.
Use the 0.5mm for the KG4A and KG7.

The KG2 have special mounting hardware.

	Range	Range (g)	Noise (μN)	Compliance (µm/mN)	Resonance Frequency	Compatible Systems
SI-KG2	0-2 N	0-200	250	0.15	1.3 kHz	SI-H only
SI-KG2B	0-0.2 N	0-20	80	0.15	590Hz	SI-H only
SI-KG4	0-50 mN	0-5	15	0.5	1.2 kHz	SI-H only
SI-KG4A	0-20 mN	0-2	4	1	1.2 kHz	SI-H only
