Radnoti Organ Bath Systems

Radnoti systems for isolated tissue/organ studies are a standardized technique and are frequently cited in the literature. These systems allow a wide range of experiments on isolated organs and tissues.

Overview
Specifications
Links

Utilizing the Radnoti Tissue-Organ Bath Apparatus in conjunction with the ADInstruments PowerLab data collecting equipment, Bridge Amplifier, Isometric Transducers, and LabChart software. These student organ bath systems offer a controlled setting free from the interference of in vivo systemic factors for conducting isolated tissue research. Also, these systems include all the necessary elements for collecting and interpreting data from isolated tissue experiments for use in pharmacology and related fields.

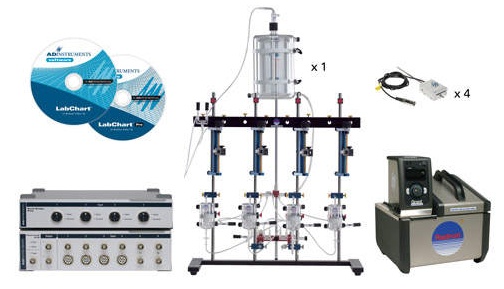

Organ Bath System Components:

PowerLab
LabChart Pro software, including the Dose Response Add-On
Bridge Amp
Force Transducer (20 g)
Radnoti Thermal Bath/Circulator
Radnoti 4, 8 or 16 Chamber Tissue-Organ Bath

Configurations

Radnoti 16 Chamber Tissue-Organ Bath System

PL3516B62/C-V

Combines a PowerLab 16/35, Bridge Amp, Isometric Transducers and LabChart with a Radnoti 16 Chamber Tissue-Organ Bath Apparatus. Includes a Radnoti 4 to 8 Chamber Conversion Kit.

Radnoti 4 Chamber Tissue-Organ Bath System

PL3508B60/C-V

Combines a PowerLab 8/35, Bridge Amp, Isometric Transducers and LabChart with a Radnoti 4 Chamber Tissue-Organ Bath Apparatus.

Radnoti 8 Chamber Tissue-Organ Bath System

PL3508B61/C-V

Combines a PowerLab 8/35, Bridge Amp, Isometric Transducers and LabChart with a Radnoti 8 Chamber Tissue-Organ Bath Apparatus. Includes a Radnoti 4 to 8 Chamber Conversion Kit.

Features

Simple updating/substitution of various chamber sizes is made possible by modular structure.
Water-jacketed tissue chambers guarantee even heating and circulation.
Suitable for single-pass or recirculating flow modes.
"Quick Disconnect" fittings that are simple to use
There are seven different chamber sizes: 5, 10, 25, 50, 100, 200, or 300 ml.

Ordering Information:

When ordering one of these systems (for example, PL3516B62/C-V), please specify the following:

Tissue Chamber size (C) = 5, 10, 25, 50, 100, 200 or 300 ml
Mains Power (V) = 115 for 110-115 V or 220 for 220-240 V

Thermo Bath/Circulator:

Reservoir Volume: 17 Liters (4.5 Gallons)
Temperature range: +12 °C to +200 °C
Temperature Stability: ±0.01 °C
Maximum Pump Flow Rate: 15 L/min
Bright, LED digital display
Stainless steel reservoir with drainage
Low water level safety shutoff
2 year parts and labor warranty

Note:

Countries with 115 V power service, the Thermal Circulator Pump requires a 20 AMPS outlet.

Countries with 220 V power service, the Thermal Circulator Pump requires a 15 AMPS outlet.

Product Codes

PL3516B62/C-V Radnoti 16 Chamber Tissue-Organ Bath System
PL3508B60/C-V Radnoti 4 Chamber Tissue-Organ Bath System
PL3508B61/C-V Radnoti 8 Chamber Tissue-Organ Bath System
