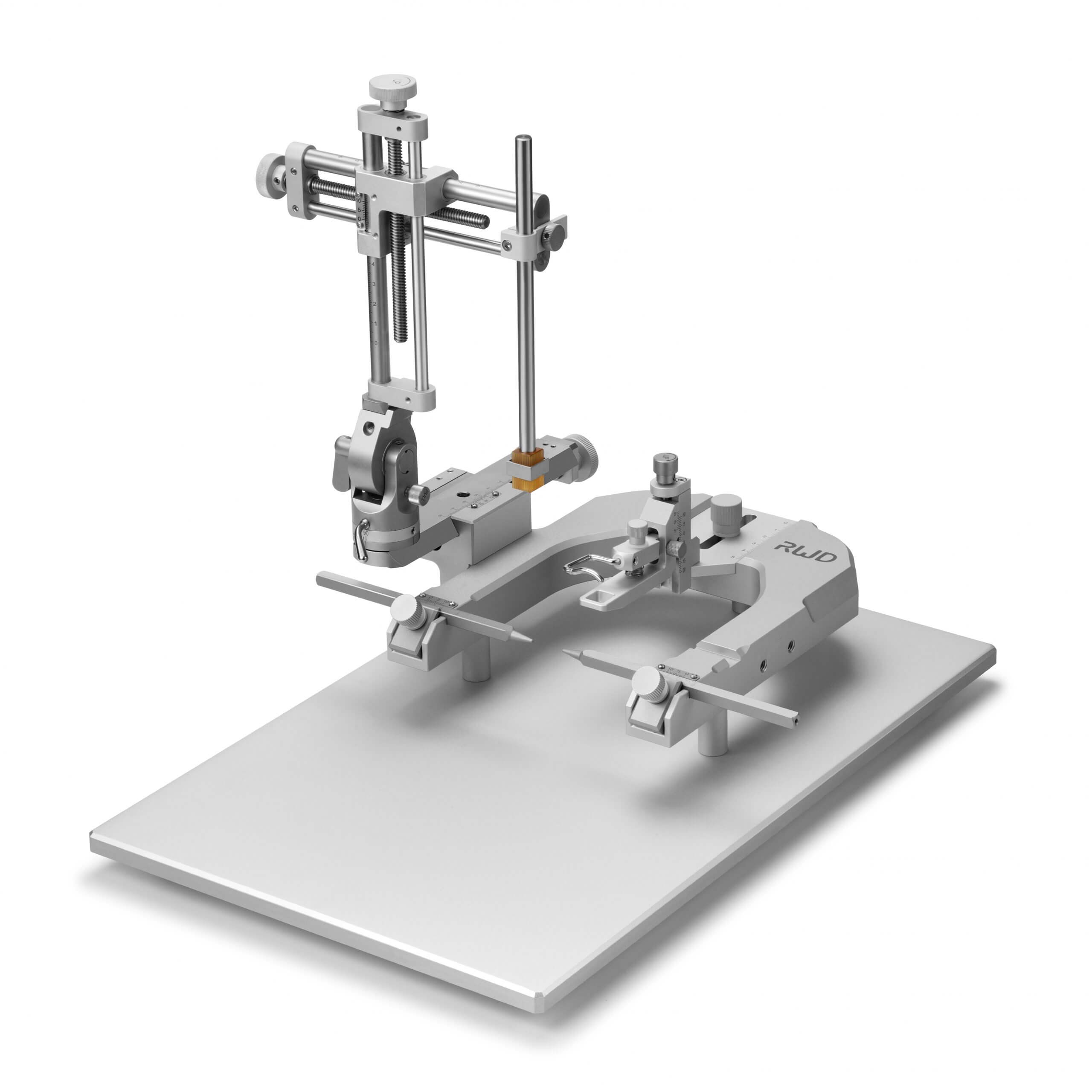

Standard Stereotaxic Instruments

Standard stereotaxic RWD instruments are basic equipment for neurobiological research. They have a resolution of 100 microns and have a U-shaped frame design. A wide range of adapters for different animals.

Overview
Specifications
References
Links

The fundamental tools for conducting brain research (with a 100 micron resolution) are RWD Standard Stereotaxic Instruments. Stability is guaranteed by the "U"-shaped frame design. To understand where the rat and mouse's brain areas are located, swap out the rat and mouse adaptor.

Features:

Distinctive UP indicator to guard against improper use
More accurate and stable functioning thanks to the double-lead screw design
Relieve eyestrain by interrupting the light
Strongly securing the animal with a curved nose clamp
Rat, mouse, bird, cat, and other animal adaptors are optional

Technical Parameters

Rat, mouse, rabbit, guinea pig, and other adaptors are available.
Each dimension's working distance is 80 mm, and alignment accuracy is 0.1 mm.
Vertical rotation and locking at any angle of 180 degrees.
Rotate 360 degrees in the horizontal direction and lock at any angle.
Screws with two leads ensure steady, precise, and fluid manipulation.
Variable temperatures can be maintained while preserving accuracy and flexibility.
A range of animal sizes can use the extended base plate (400mm x 255mm).
The knob's distinctive UP symbol, carved in the anti-clockwise direction, prohibits misuse.
To guarantee proper operation at any angle, the vertical lock and fixation knob are separated.
The knob is 28mm from the U-shaped frame to ensure an exact intended lateral rotation operating space.
Scales with laser engraving make reading them comfortable.
Animal heads are secured with a curved nose clasp.
Ear bar locked plate pushing rather than clamping provides greater stability.
The devices have attachment points for a drill, tiny camera, and syringe pump.

Model Information

Category	Model	Product Description	Remark
Stereotaxic host (without accessories)	68801	Standard Stereotaxic Instrument, SGL M	Standard configuration, contains 68861N base, 68401 3-axis manipulator-left, without adaptor, ear bars, holder and mask.
Stereotaxic host (without accessories)	68802	Standard Stereotaxic Instrument, Dual M	Standard configuration, contains 68861N base, 68401 3-axis manipulator-left and 68402 3-axis manipulator- right, without adaptor, ear bars, holder and mask.
Required accessories (optional)*	68055	Mouse Adaptor
	68030	Mouse/Neonatal Rat Adaptor
	68057	Mouse Anesthesia Adaptor
	68021	Rat Adaptor
	68053	Rat Anesthesia Adaptor
	68301	Rat 18° Ear Bars
	68306	Mouse 60° Ear Bars
	68201	Standard Probe Holder-Corner, clamping range: 0.3-1.5mm.
	68217	Cannula Holder, clamping diameter: 3.5mm.	The clamping part is made of plastic.
	68205	Cannula Holder, clamping diameter: 3.5mm.	The clamping part is made of metal.
	68214	Ceramic Ferrule Holder, clamping diameter: 1.25mm.
	68215	Ceramic Ferrule Holder, clamping diameter: 2.5mm.
	68206	General Probe Holder, clamping range: 3-12mm.
	68218	Syringe Holder, the syringe barrel clamping range is 6mm-12mm, and the syringe needle clamping range is 0.3mm-1.5mm.
	68605	Microdrill Holder, clamping diameter: 14.5mm.	Suitable for 78001 microdrill.

*Indicates that other specifications can be selected, which can be viewed from the product catalog of RWD.

The instrument was used in these investigations:

Impaired meningeal lymphatic drainage in patients with idiopathic Parkinson
Ding X B, Wang X X, Xia D H, et al.
Nature Medicine, 2021, 27(3): 411-418.
Sound induces analgesia through corticothalamic circuits.
Zhou W, Ye C, Wang H, et al.
Science, 2022, 377(6602): 198-204.
BOD1 regulates the cerebellar IV/V lobe-fastigial nucleus circuit associated with motor coordination.
Liu X X, Chen X H, Zheng Z W, et al.
Signal Transduction and Targeted Therapy, 2022, 7(1): 1-14.

You can also visit site of the manufacturer.
