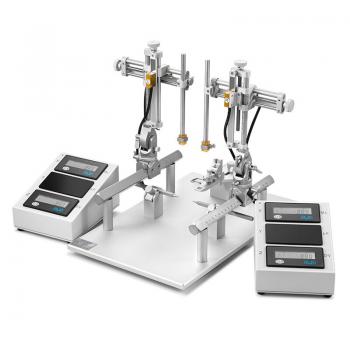

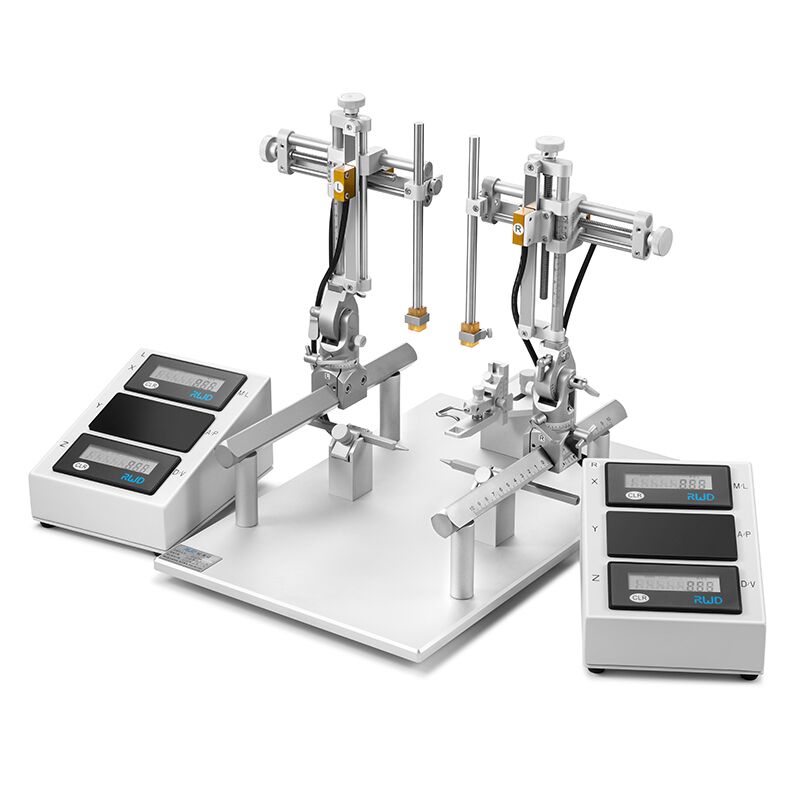

Rail-mounted Rat Stereotaxic Instruments

Technical Parameters

1. Rat, mouse, rabbit, guinea pig, and other adaptors are available.
2. Longer movement range: ±100mm, 1mm resolution; Y-axis slide design. Optional AP Micro-driver, 50 μm resolution enhancement of the Y-axis
3. Working distance in the X and Z axes is 80 mm, and alignment accuracy is accurate to 0.1 mm.
4. Vertical rotation and locking at any angle of 180 degrees.
5. Rotate 360 degrees in the horizontal direction and lock at any angle.
6. Screws with two leads ensure steady, precise, and efficient manipulation.
7. At various temperatures, accuracy and flexibility can be preserved.
8. Several sizes of animals can fit on the extended base plate (400 x 255 mm).
9. A distinctive UP symbol in the knob's anti-clockwise direction prevents improper rotation.
10. To guarantee proper operation at any angle, the vertical lock and fixation knob are separated.
11. Replace the U-frame for a larger, more reliable and cost-effective working area.
12. Scales with laser engraving make reading them comfortable.
13. Animal heads are secured with a curved nose clasp.
14. Ear bar locked plate pushing rather than clamping provides greater stability.
15. The devices have attachment points for a drill, tiny camera, and syringe pump.
