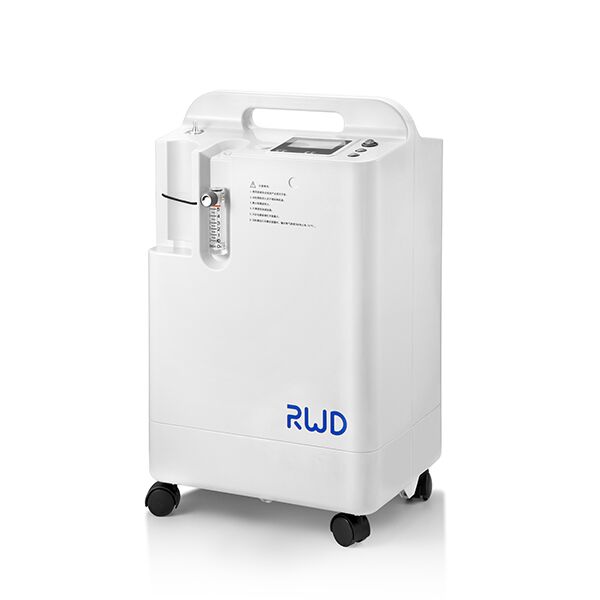

ROC-5A Veterinary Oxygen Concentrator

The RWD ROC-5A/ROC-8A Veterinary Oxygen Concentrator is designed specifically for veterinary applications. High-purity oxygen is extracted from the air using pendular adsorption technology (PSA) on a molecular sieve.

Overview
Specifications
Links

ROC-5A/ROC-8A RWD's the Veterinary Oxygen Concentrator is intended for for use by veterinarians. Through the use of molecular sieve pressure swing adsorption (PSA) technology, the air is separated from the high purity oxygen.

Features & Benefits

One for Multi-use

Oxygen delivery at a flow rate of 5L/min for anesthesia, postoperative recovery, ICU, first aid, and other uses.

Cost-effective

It pulls in and produces medical-grade oxygen (USP93%) using only ambient air and never runs out of oxygen.

Quart-filtration System

Ceramic fiber, a cloth intake filter, an integrated filter, and a humidifier bottle: bacteria, viruses, and odours can be efficiently eliminated in 99.999% of cases.

Time Preset

Support setting a timer for the oxygen-producing process, which will shut off when the timer expires.

Alarm

Alerts for low oxygen levels and atypical alarms.

Quiet design

Silent design to give you a peaceful and relaxing workspace.

Technical Parameters

Cat No.	ROC-5A	ROC-8A
Flow Rate	0-5L/min	0-8L/min
Net Weight	22kg	24kg
Power Rating	320VA	550VA
Veterinary Oxygen concentration	93%±3%
Working voltage	~230 V/50Hz??� ~110V/60Hz
Outlet pressure	40-70kpa
Dimension	300360600mm
Noise	≤43dB
Oxygen Tubing	2m*2

Model Information

JAY-5BW Oxygen Generator (Main Body)
R510-25-86 9/16 TO Φ8 Cone Connector (1 piece)
R-ST-60A Silicone Tubing – ID:6.0,OD:10.0mm
A5 User Manual
V-1 Air Filter

You can also visit site of the manufacturer.
