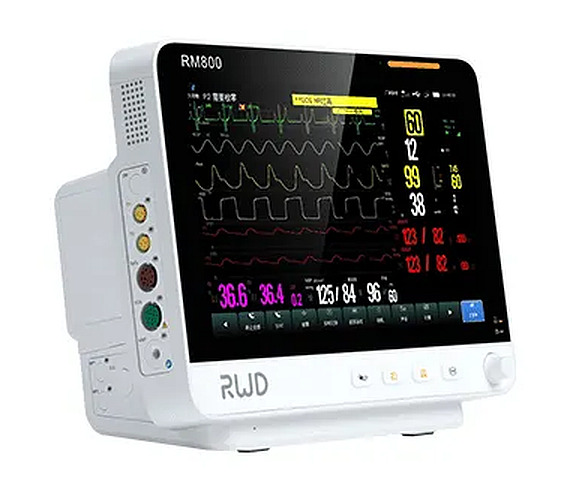

RM700/RM800/RM800T Veterinary Monitor

The RM700/RM800/RM800T Veterinary monitor tracks multiple parameters, including SpO₂, ECG, NIBP, TEMP, RESP, and Microflow ETCO₂.

Overview
Specifications
Links

The RM700/RM800/RM800T Veterinary monitor is designed with veterinary-specific algorithms and a compact structure. It meets your essential needs across various scenarios for veterinary patients. The monitor tracks multiple parameters, including SpO₂, ECG, NIBP, TEMP, RESP, and Microflow ETCO₂.

Features

A 12.1-inch TFT LCD screen that displays all parameters clearly.
Microflow EtCO2 technology, featuring a minimal sampling rate for enhanced data accuracy. (Optional)
A compact design with a back cabinet for convenient accessory storage and a weight of less than 4kg.
An innovative animal blood pressure algorithm that allows for rapid and precise measurements.
Multi-lead synchronized ECG signal analysis for improved detection, utilizing 5 leads.
The IP perfusion index is measurable for more precise SpO2 readings.

Specifications of RM700/RM800/RM800T Veterinary Monitor

Display: RM700-10.1 inches TFT LCD screen, RM800 -12.1 inches, RM800T-12.1 inches touch screen; Resolution:1280×800 pixels

Size: 198mm(H) * 320mm(W)* 262mm(L)

Weight: ＜4kg

Data Storage:

Trends: 180 hours
Parameter alarms: 3000
NIBP measurements: 2400 sets
Full-disclosure waveforms: 72 hours at maximum

ECG

Input mode: 5 leads

HR range: 10-350bpm

SpO2

Measuring range: 0~100%

Accuracy:

At 70~100%, ±2%
At 0~69%, unspecified

PI measurement range: At least 0.05~20.00%

EtCO2

Measurement method: Microflow

Sample flowrate: 50±10mL/min

EtCO2/FiCO2 measurement range: 0%～19.7% (0mmHg～150mmHg)

NIBP

Operation mode: Manual, Auto, STAT, Sequence

Measurement method: Automatic Oscillometry

Cuff pressure measuring range: 0~300mmHg

Measurement parameters: SYS, DIA, MAP,PR

TEMP

Measuring range and accuracy: 0.0~50.0℃ (32℉~122℉), 0.1℃ or 0.1℉

RESP

Measurement range: 0~150 rpm

Accuracy: ±2 rpm or ±2%, whichever is greater

Ordering Information

RM700 Veterinary Monitor with 10.1 inches screen, SpO2,ECG,RESP,HR,NIBP and TEMP
RM800 Veterinary Monitor with 12.1 inches screen SpO2,ECG,RESP,HR,NIBP , TEMP and Microflow CO2
RM800T Veterinary Monitor with 12 inches touch screen SpO2,ECG,RESP,HR,NIBP, TEMP and Microflow CO2
