The RWD veterinary monitors are designed for use in special procedure labs and veterinary clinics. Electrocardiography (ECG), respiration (Resp), non-invasive blood pressure (NIBP), pulse oximetry (SpO2), temperature (Temp), and end-tidal carbon dioxide (EtCO2) are among the monitoring parameters of the RM monitor series.
Features & Benefits
- 10.4′′ Color TFT-LCD screen with simple and straightforward controls.
- Has the ability to display trend data and trend graphs and can save trend data for 120–168 hours.
- Reviewing alarm event function; 1000–1800 pieces of alarm events can be stored.
- Digital blood oxygen saturation measurement with anti-perfusion that is accurate and sensitive.
- The following various measuring techniques are used: 5-lead ECG/HR, RESP, TEMP, SpO2/Pulse, and NIBP.
- The fully integrated module architecture guarantees dependable performance, simple replacement, and routine maintenance.
- A variety of display options to suit different demands.
- Equipped with 5 cuffs in 5 different sizes to accommodate diverse body types' measurement demands.
- A special all-lead ECG on a single screen display that makes it easier to diagnose and analyze heart illness.
- Defibrillation effects and high-frequency electro tome resistance.
- It is clearer with a 270° view alarm light design and 3 levels of alarm.
Specifications of RWD Veterinary Monitors
Size and Weight
Size: 318 mm×264 mm×152 mm
Weight: 4.5 kg
Power supply
Power Voltage: AC 100-240V
Frequency: 50/60Hz
Input current: 0.6A -0.3A
Fuse: T 2A/250V, integrated in the power module
Earth leakage current: <0.3 mA
Safety class: Category I
Display
LCD
- Size: 12.1″
- Type: Color TFT-LCD
- Resolution: 800×600 pixels or higher
Indicators:
- Physiological alarm LED: 1(Yellow/Red)
- Technical alarm LED: 1(Blue)
- AC Power LED: 1 (Green/Orange)
- Battery Charge LED: 1 (Yellow)
Interface
Power: 1 AC power inlet
Wired network: 1, standard RJ45 socket
Equipotential grounding terminal: 1
Battery
Type:
- Rechargeable Lithiumion battery
- 11.1V/4.0AH
Charge time: ≤6 hours (2 batteries for 12 hours)
Operating period with standard use and a full charge:
- ≥240 minutes(2 batteries for 480 minutes)
- At 25°C ambient temperature, a brand-new, fully charged battery is used with NIBP running in AUTO mode for 20 minutes interval.
Operational time if the battery is low after the initial alarm: ≥10 minutes
SpO2
BLT-SpO2
Measurement Range: 0~100%
Resolution: 1%
Accuracy:
- At 70~100%, ±2%
- At 0~69%, unspecified
Data update period: <13s
Alarm: User-selectable upper and lower SpO2 limits
PR
Measurement Range: 25~250 bpm
Resolution: 1 bpm
Accuracy: ±1% or ±1 bpm, whichever is greater
Data update period: <13s
Alarm: User-selectable upper and lower pulse rate limits
EtCO2 (Sidestream???BLT)
Measure method: Infrared spectrum
Measure mode: Sidestream
Measurement Range: 0.0~13.1% (0~99.6 mmHg)
Resolution: 1 mmHg
Unit: %, mmHg, kPa
Accuracy:
- At <5 % CO2???±0.3% (±2.0 mmHg)
- At ≥5 % CO2, < ±10 % of reading
Range of respiration rate measurement: 3~150 rpm
Calibration:
- Offset calibration: auto, manual
- Gain calibration
Range of alarm: 0.0~13.1 % (0~99.6mmHg), continuously adjustable between upper limit and lower limit
Alarm indication: Sound and light indication
EtCO2 (Mainstream???CAPNOSTAT5)
Measure method: Infrared spectrum
Measure mode: Mainstream
Warm up time: Capnogram displayed in less than 15 s, At an ambient temperature of 25 ?„? , full specifications
within 2 minutes.
CO2Measurement Range: 0 ~ 19.7%(0 ~ 150 mmHg)
CO2 Resolution: 1mmHg
CO2 Accuracy:
- 0 ~ 40 mmHg, ±2 mmHg
- 41 ~ 70 mmHg, ±5% of reading
- 71 ~100 mmHg, ±8% of reading
- 101 ~ 150 mmHg, ±10% of reading Temperature at 35?„?.
CO2 Stability: Short-Term Drift: Drift over four hours≤0.8 mmHg. Long-Term Drift: Accuracy specification will be maintained over a 120 hours period.
Rise time: ???60ms
unit: %, mmHg, kPa
Respiration Rate Range: 0~150 rpm
Respiration Rate Accuracy: ±1 rpm
Alarm indication: Sound and light indication
Recorder (optional)
Type: Thermal dot array
Paper width: 50 mm
Recording waveform: Single track, 3 tracks
Recording speed: 12.5mm/s, 25mm/s, 50mm/s
Ordering Information

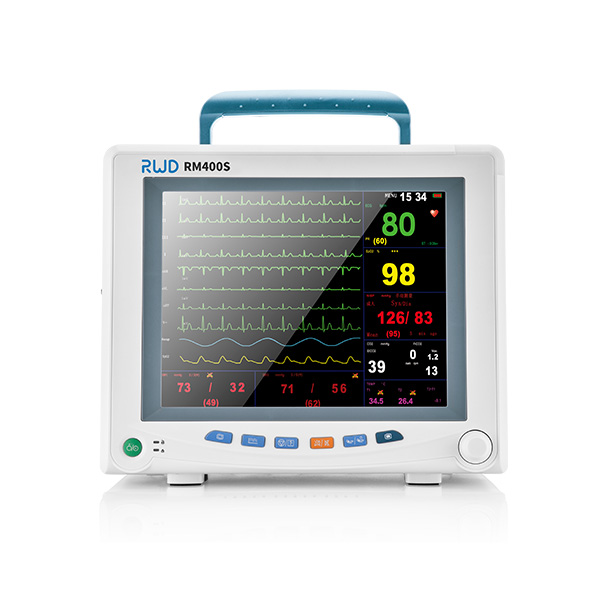

- RM300 Veterinary Monitor with SpO?‚‚, ECG, RESP, NIBP,TEMP and HR
- RM400M Veterinary Monitor with SpO?‚‚,ECG, RESP, HR, NIBP, TEMP, and EtCO?‚‚ (Mainstream)
- RM400S Veterinary Monitor with SpO?‚‚, ECG, RESP, HR, NIBP, TEMP and EtCO?‚‚(Sidestream)
