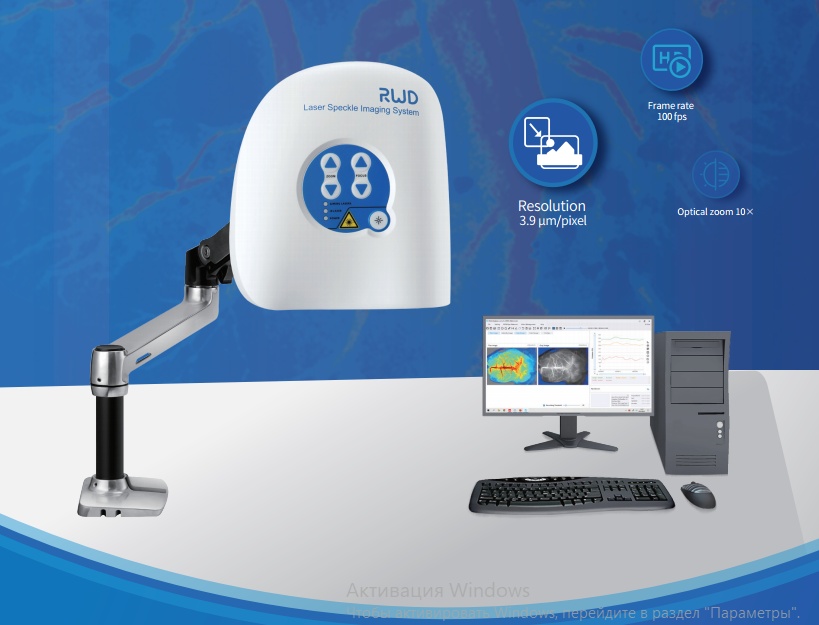

RFLSI ZW Laser Speckle Imaging System

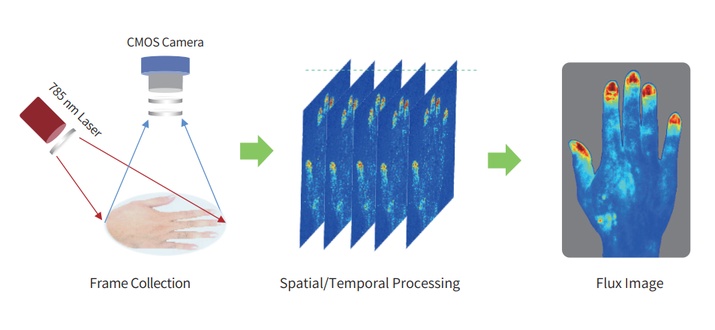

Based on laser speckle contrast imaging technology, the RWD RFLSI ZW laser speckle imaging system provides an even superior instrument for microcirculation research (LSCI). The RFLSI ZW exhibits enhanced performance in imaging field size, image quality, full-field frame rate, and optical resolution due to its improved optical design and image processing algorithm. It also offers a strong and effective method for measuring tissue microcirculation.

Features:

• Agent-dependent non-contact, non-contrast measurement
• With the highest optical resolution of 3.9 μm/pixel, tissue structures are shown in greater detail.
• Maximum frame rate (full field), capturing real-time changes in bigger regions, is up to 100 fps.
• The all-in-one imager's image size spans from 0.57x0.75 to 22.5x30 cm2, covering a variety of research applications.
• Quick auto and precise manual focus, increasing focus effectiveness and precision on different tissues
• The ideal lens assembly filters ambient light and reflects light.
• Measurement and indication lasers of class 1, safe for use without goggles
• Calibrating the system using a calibration box
• Activate In/Out BNC connections for external device connectivity.
• Installing analysis software on a computer indefinitely

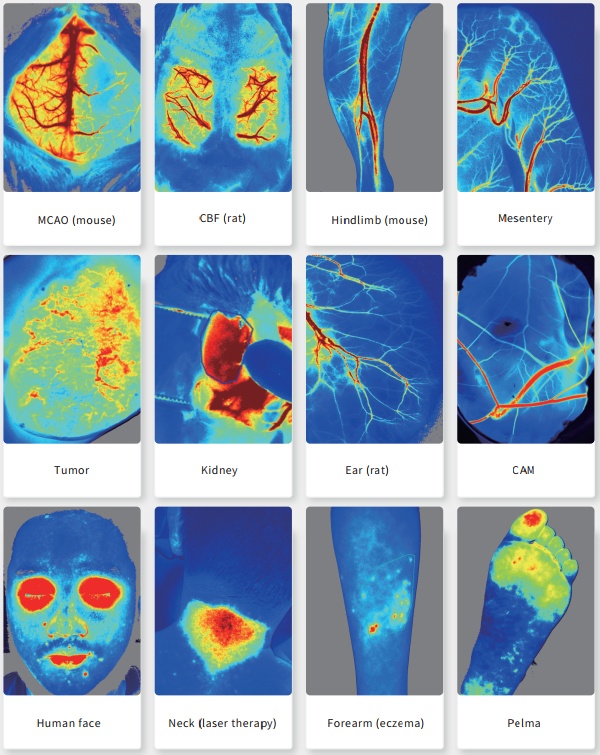

Popular Applications
