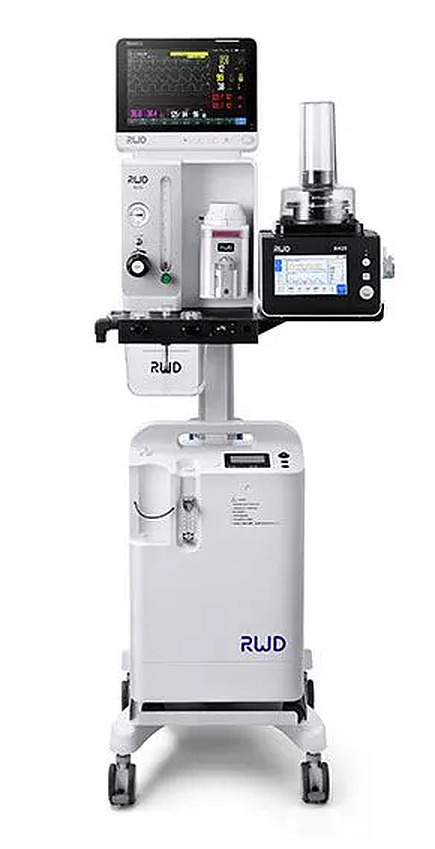

In line with the goal of enhancing the safety, simplicity, and reliability of animal anesthesia, the RWD R650 Veterinary Anesthesia Machine is dedicated to providing a groundbreaking experience in veterinary anesthesia.
This machine is suitable for the clinical anesthesia of various animals, including dogs, cats, pigs, monkeys, rodents, reptiles, birds, and more.
Features of R650 Veterinary Anesthesia Machine
- High-accuracy Vaporizer: Each unit is subjected to thorough factory inspections to guarantee the highest level of precision.
- One-click operation: The APL valve can be closed with a single click, and the breathing circuit can be switched with just one click.
- The arrangement of function keys is user-friendly, with the airway pressure gauge, APL valve, and other controls all located on the front panel for easy visibility.
- Safety pressure warnings are highlighted with green, yellow, and red indicators, facilitating the identification of excessive system pressure in both circuits.
- The installation of the monitor, ventilator, oxygen concentrator, and other components is compact.
- The pipeline arrangement is concealed, reducing the risk of exposure and leakage.
Specifications for R650 Veterinary Anesthesia Machine
Vaporizer: Output concentration: 0-5vol,%( Isoflurance); 0-8vol,%( Sevoflurance)Working temperature: 10-35℃Capacity: 120Mbetween highest and lowest mark
Oxygen flowmeter: 0.1-4L/min
Pressure Gauge: -20cmH2O-100cmH2O
CO2 absorber: 2.1L
APL valve: 0-70cmH2O
Oxygen supply pressure: <0.5Mpa
Waste gas canister: Net Weight 800 g, can absorb 200 g
Oxygen flush: 10-15L/min
