Veterinary R620-S1

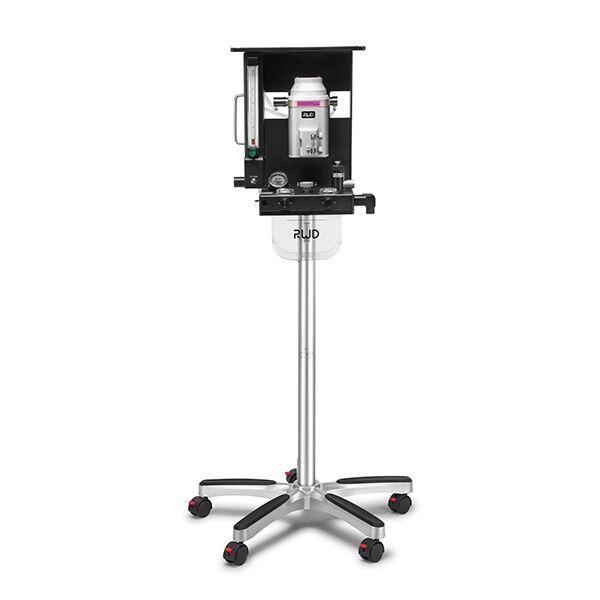

R620-S1 Veterinary Inhalation Anesthesia Machine

The RWD R620-S1 veterinary inhalation anesthesia machine is a popular model designed for animals weighing up to 100 kg, such as dogs, cats, pigs, monkeys, rodents, reptiles, birds, etc.

Among the 30,000+ veterinarians worldwide, the RWD R620-S1 is one of the models that is most frequently used for veterinary use on animals weighing less than 100 kg, including dogs, cats, pigs, monkeys, rodents, birds, etc. The veterinarian will feel simple, secure, and dependable performing surgery on animals is possible with minimal operation design.

Features and Benefits

  • High precision vaporizer, each with a distinct report
  • Quick-occlusion APL valve, useful for intraoperative emergencies
  • CO2 absorber installed on a rail that is simple to setup and disassemble
  • Red cylindrical flow meter with a reading range of 0 to 4 liters per minute
  • Remove waste anesthetic gases from the operating room with a good waste gas scavenging device
  • Able to switch between circuit configurations for rebreathing and non-rebreathing simultaneously
  • Two possibilities for pole mounts: five-foot base/H-base
  • Hold up the hanging E-type oxygen cylinder
  • Practical monitor shelf
  • 3-year limited warranty

Technical Parameters

  • Animals up to 100 kg in weight are eligible.
  • 0.1 to 4 L/min O2 flowmeter
  • 10L/min O2 flush.
  • One button can swiftly close an APL valve.
  • 2100cc CO2 absorber.
  • Three sorts of filling type vaporizer which are accessible - Pour Fill, Simple Fill and Key Fill.
  • Work temperature: 10-35?„?.

Model Information

  • R620-S1-A R620-S1 Series Mounting Assembly with O?‚‚ Flowmeter (0.1-4LPM)_EN
  • R580S Vaporizer- Pour Fill- Cagemount (Can  be  changed  to  other  vaporizer)
  • R580-IO Vaporizer Endcaps (1 pair)
  • R510-31 Gas Filter Canister, Large
  • R600-ET Cuffed Endotracheal Tubes (1 set)
  • R600-NL-0.5L Reusable Non Latex Breathing Bag, 0.5L
  • R600-NL-1L Reusable Non Latex Breathing Bag, 1L
  • R600-NL-2L Reusable Non Latex Breathing Bag, 2L
  • R-BC-DL Breathing Circuit Duo-limb, 22mm(M)/15mm(F), 1.5m
  • R-NBC-F(JR) Mapleson F Non-rebreathing Circuit (Jackson-Rees)
  • R-CT-18 Corrugated Tube – ID 22.0mm, L1.2m

You can also visit site of the manufacturer.
