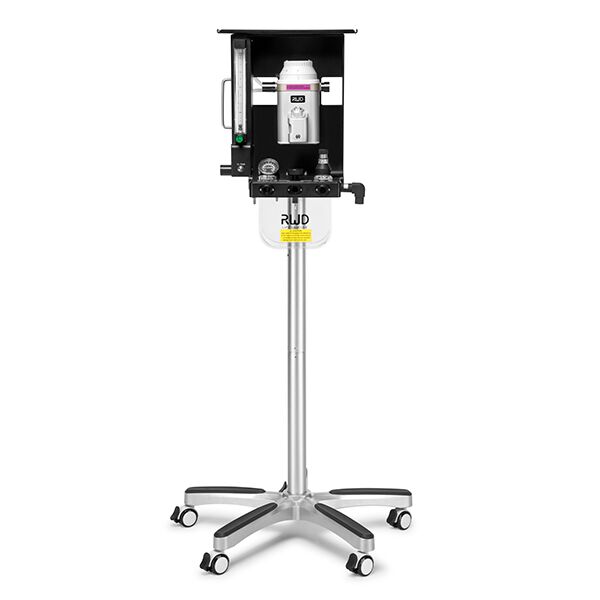

R620-MRI Veterinary Anesthesia Machine

The RWD's R620-MRI veterinary anesthesia machine is suitable for use in magnetic resonance imaging environment within 3T. Supports operation with both breathing and non-rebreathing circuits.

Overview
Specifications
Links

Shenzhen Institutes of Advanced Technologies has tested RWD R620-MRI. It has been shown that R620-MRI will not cause displacement or have an impact on the use of magnetic equipment or imaging at 3T in a magnetic environment.

Key Features:

Utilizable in a 3T magnetic resonance imaging setup
Complete operation including circuits for both breathing and non-rebreathing

Technical Parameters

Apply to a 3T environment for magnetic resonance imaging
Standard breathing loop with a closed circuit
Animals up to 100 kg in weight are eligible
1 to 4 L/min O2 flowmeter
With a 10L/min oxygen flushing mechanism
2100cc CO2 absorber
Pour Fill is a single filling-style vaporizer

Model Information

R580S-MRI Vaporizer – Pour Fill – Cagemount-MRI
R510-31 Gas Filter Canister, Large
R600-ET Cuffed Endotracheal Tubes (1 set)
R600-NL-0.5L Reusable Non Latex Breathing Bag, 0.5L
R600-NL-1L Reusable Non Latex Breathing Bag, 1L
R600-NL-2L Reusable Non Latex Breathing Bag, 2L
R-BC-DL Breathing Circuit Duo-limb, 22mm(M)/15mm(F), 1.5m
R-NBC-F(JR) Mapleson F Non-rebreathing Circuit (Jackson-Rees)
R-CT-18 Corrugated Tube – ID 22.0mm, L1.2m
R-AH-MRI Air Hose,ID8.0-9/16(SGL),5m???MRI-Compatible
R580-IO-MRI Vaporizer Endcaps (1 pair) – MRI

You can also visit site of the manufacturer.
