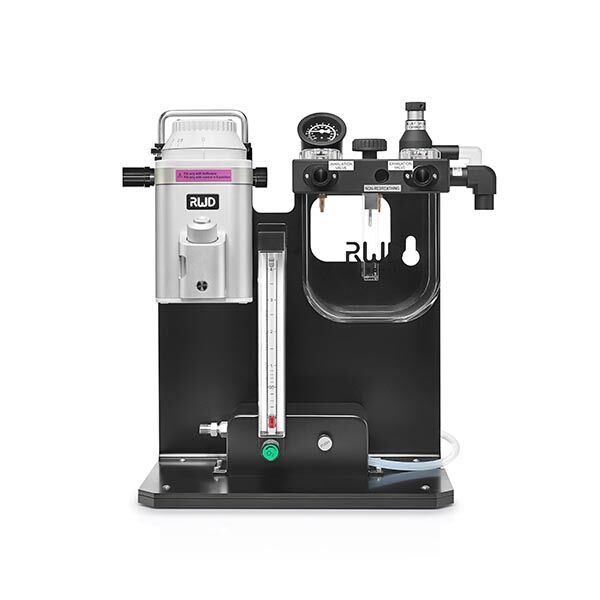

R610 Veterinary Anesthesia Machine - Tabletop

The R610 veterinary tabletop anesthesia machine is used for clinical anesthesia of animals weighing up to 100 kg. A mobile design is available as an option.

Overview
Specifications
Links

R610 is appropriate for clinical anesthesia use in animals weighing less than 100kg, such as dogs, cats, pigs, monkeys, rodents, reptiles, birds, and so on. Its tabletop/mobile (optional) structure adds versatility and value.

Features & Benefits

Compact tabletop structure
Vaporizer with high accuracy, each with an independent test report
To avoid waste anesthesia gas pollution, a high-efficiency gas filter canister is used
Breathing and non-rebreathing circuits should be supported
For first aid, use an oxygen flush
Can be expanded to include a mobile anesthesia machine

Technical Parameters

Applicable to animals that weight within 100kg.
0 to 4 L/min O2 flowmeter
-20- +100cm H2O pressure gauge
10L/min O2 flush.
1100cc CO2 absorber.
Rebreathing circuit system connection size: 22mm
Non-rebreathing circuit system connection size: 15mm
Vaporizer ???Work temperature:10-35?�?
Out concentration:0~5%(Isoflurane);0~8%(Sevoflurane)
Volume: >120ml

Standard Configuration

R610-A R610 Series Mounting Assembly (Silver) with O?�� Flowmeter (0.1-4LPM)
R580S Vaporizer for Isoflurane – Pour Fill – Cagemount
R580-IO Vaporizer Endcaps (1 pair)
R-BC-DL Breathing Circuit Duo-limb, 22mm(M)/15mm(F), 1.5m
R-NBC-F(JR) Mapleson F Non-rebreathing Circuit (Jackson-Rees), 1.5m
R-CT-18 Corrugated Tube – ID 22.0mm, L1.2m
R600-NL-0.5L Resuable Non Latex Breathing Bag, 0.5L
R600-NL-1L Resuable Non Latex Breathing Bag, 1L
R600-NL-2L Resuable Non Latex Breathing Bag, 2L
R-AH-80 Air Hose(3-layer Compounded Rubber) – ID8.0-9/16(SGL)-2m
R600-ET Cuffed Endotracheal Tubes (1 set)

You can also visit site of the manufacturer.
