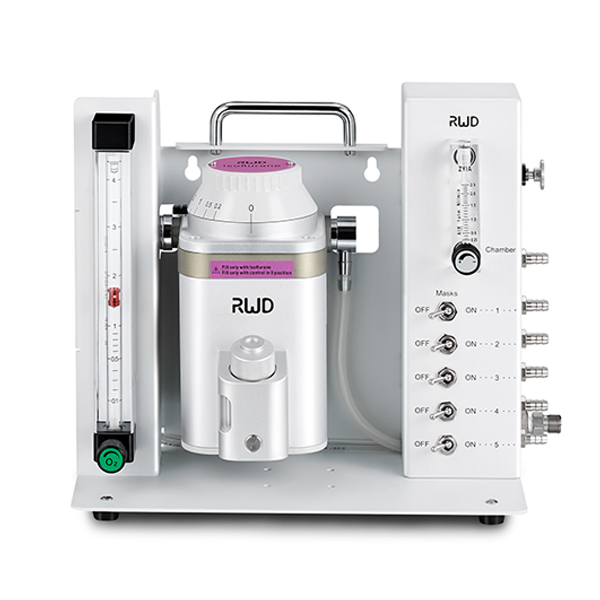

The RWD R550 is a Multi-output Laboratory Small Animal Anesthesia Machine that may be used to anesthetize 1 to 5 rats, mice, cats, rabbits, and other animals simultaneously. Anesthesia channels can all be independently controlled. It will enable you to do your research much faster. With a range of 0-2.5L/min, the induction box's gas flow can be independently changed.
Features:
- A multi-channel design can accommodate the needs of 1–5 small animals at once
- A precise oxygen flow meter with a 0–4 L/min flow control range is available
- High-precision vaporizer (Each one has an independent test report)
- Gas toggle switch, button toggling gas path, with a service life of more than 100,000 cycles
- Rapid oxygenation switches to clear the tube or anesthesia induction chamber of any remaining anesthetic mixture
- A gas supply can be either air or oxygen
- Drug addition using Easy Fill and Key Fill is optional
- To conserve space and make transportation easier, it can be converted into a portable anaesthetic machine
- The induction chamber's gas flow can be individually changed, ranging from 0 to 2.5 L/min
- Toggle switch with rapid gas circuit switching and a 100,000 cycle lifespan
Applicable to rats, mice, hamsters, guinea pigs, rabbits, cats and other animals within 7kg
meet the needs of multiple animals(1-5 small animals) simultaneously
1 to 4 L/min O2 flowmeter
10L/min O2 flush
Three kinds of filling type vaporizer is optional-Easy Fill and Key Fill
Anesthesia Concentration range: 0-5% or 0-8%, Accuracy range is low than 10%
Work temperature:10-35?„?
Ordering Information
- R550IE Enhanced Small Animal Anesthesia Device-Easy Fill, 0-4L
- R550IK Enhanced Small Animal Anesthesia Device-Key Fill, 0-4L
- R550SE Enhanced Small Animal Anesthesia Device-Easy Fill, 0-4L
- R550SK Compact Small Animal Anesthesia Device-Key Fill, 0-4L
- R510-S Portable Stand for R510 Series Anesthesia Machine
