R415 VentStar

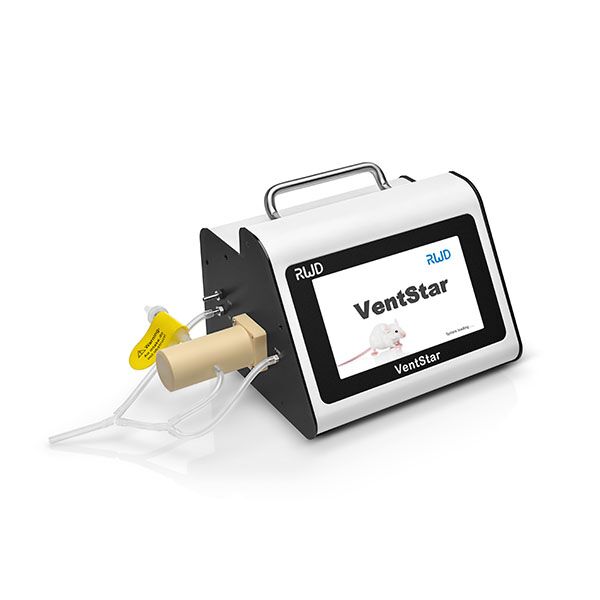

R415 VentStar Small Animal Ventilator

The RWD R415 VentStar small animal ventilator has been designed for research on subjects ranging in size from mice to guinea pigs. Provides easy adjustment by entering the animal's weight.

The RWD R415 is a mechanical ventilator that aids in animal breathing and is appropriate for species weighing between 10g and 1kg, including mice, rats, and guinea pigs.

It is extensively employed in clinical medicine, animal medicine, basic medical research, and other scientific research studies (such as myocardial ischemia model making, lung function evaluation).

Key Features:

  • Range from 10g to 1kg and are suitable for mice and guinea pigs.
  • Convenient for entering the animal's weight to configure the ventilator data.
  • VCV and PIPCV working modes are built-in.
  • Tracheal pressure is displayed graphically in real time.
  • Easy-to-use touch screen with a 75-degree visible surface design.
  • Volume and pressure modes are offered to provide intermittent positive pressure ventilation (IPPV) that is safe and efficient.
  • Alerts for various faults include sound, intelligent text, error codes, and more.

Technical Parameters

Suggested Weight Range: 10g???1kg

Species: Mouse/Rat???Guinea Pig

Tidal Volume Range (TV): 0.05ml???5ml    Resolution: 0.001ml

Peak Inspiratory Pressure (PIP): 1???50cmH2O Resolution: 1 cmH2O Accuracy: ±0.7 cmH2O

PEEP: 0???10 cmH2O   Resolution: 1 cmH2O

Breath Rate (bpm): 10???300 bpm

I:E Ratio: 20???80%

Sigh Breath: Frequency: Every 10???999 or Manual; Volume: 0???20% of tidal volume (in volume mode) or PIP (in pressure volume)

Display: 7'' LCD touchscreen, resistive

Remote Communication: RS-485

Power Supply: 100???240VAC, 50/60Hz

Input Power: 24V DC,   adaptor: 40W Max

Safety Alarms: Over-/Under-pressure, occlusion, high PEEP

Dimensions: 320*210*180mm

Weight: 5.1kg

Operating Temperature: 4?„????40?„?

Operating Humidity: 20???80%, non-condensing

Storage Temperature & Humidity: -10?„????70?„?, 20%???80% RH, non-condensing

Ordering Information

  • R415 Small Animal Ventilator
  • R415-AP Accessory package for Anesthesia and Ventilator
