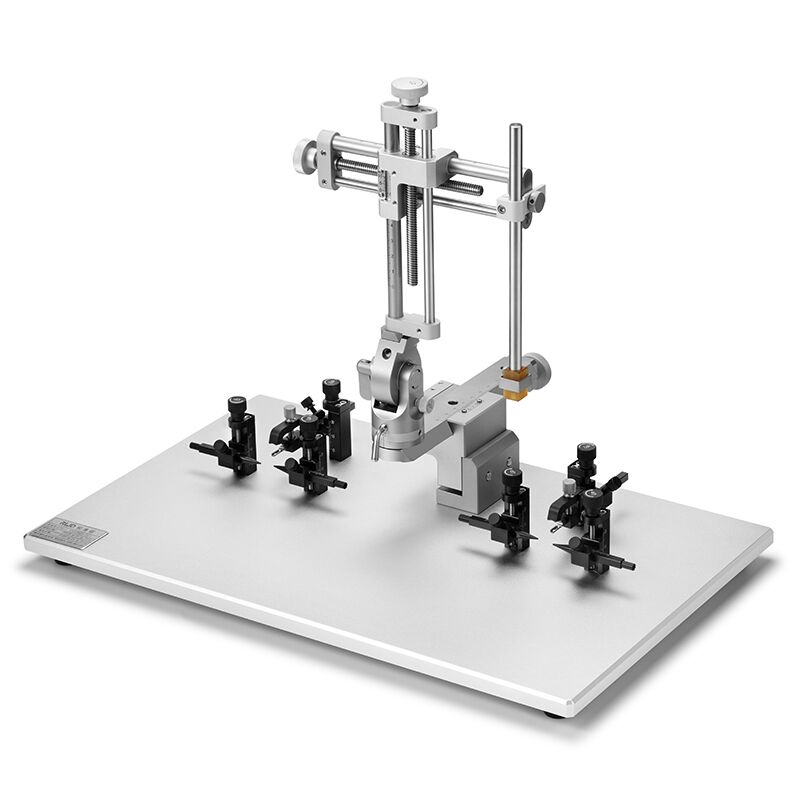

Portable Stereotaxic Instrument for 2 Mice

Technical Parameters

1. Size of the base plate: 400 x 255 mm.
2. Specifically created for simultaneous research involving two mice.
3. Unique and lightweight ear bars constructed of polyoxymethlene resin.
4. The palate clip's height adjustment range is 0 to 20 millimeters.
5. The ear bars' height adjustment range is 20mm (0–+20mm).
6. Scales on ear bars with laser engraving (1mm resolution).
7. Working distance in three dimensions is 80 mm, and alignment accuracy is accurate to 0.1 mm resolution.
8. Vertical rotation and locking at any angle of 180 degrees.
9. Rotate 360 degrees in the horizontal direction and lock at any angle.
10. Screws with two leads ensure steady, precise, and efficient manipulation.
11. At various temperatures, accuracy and flexibility can be preserved.
12. A distinctive UP symbol in the knob's anti-clockwise direction prevents improper rotation.
13. To guarantee proper operation at any angle, the vertical lock and fixation knob are separated.
14. Replace the U-frame for a larger, more reliable and cost-effective working area.
15. Scales with laser engraving make reading them comfortable.
16. Ear bar locked plate pushing rather than clamping provides greater stability.
17. The devices have attachment points for a drill, tiny camera, and syringe pump.
