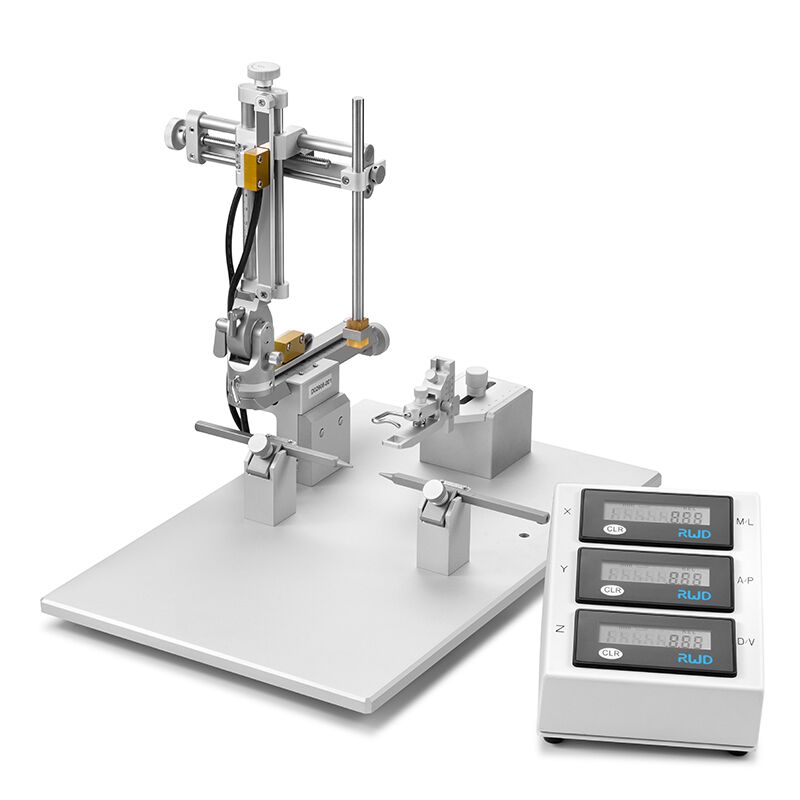

Portable Rat Stereotaxic Surgery Frame

This product is discontinued.

RWD portable stereotaxes for rats include 3 axes, a left hand manipulator, a rat adapter, 18° rat ear bars, and a standard probe holder. Other assemblies such as dual manipulator, digital stereotax, etc. are also available.

Overview
Specifications
References

This stereotaxic apparatus uses adaptors to expand the operating area rather than a U-frame design, making it easier to conduct rat brain study. The stereotaxic apparatus comes with three axis, a left-handed manipulator arm, rat adaptor, rat 18-degree ear bars, and a conventional probe holder. Additionally, there are other subassemblies like dual-arm, computerized, etc.

Technical Parameters

Size of the base plate: 400 x 255 mm.
35.5mm separates the ear bar from the base plate.
Ear bar slots with 0.1mm precision vernier.
Ear bars have a 35mm scale with a 1mm precision.
The adaptor has a 30mm (+10mm-20mm) dorsal/ventral adjustment range with 0.1mm precision.
Working distance in three dimensions is 80 mm, and alignment accuracy is 0.1 mm.
Vertical movement and locking at any angle of 180 degrees.
Rotate 360 degrees in the horizontal path and lock at any angle.
Screws with two leads guarantee steady, precise, and fluid manipulation.
Variable temperatures can be kept while preserving accuracy and flexibility.
The knob's distinctive UP mark, engraved counterclockwise, stops misuse.
To guarantee precise operation at any angle, the vertical lock and fixation knob are separated.
Replace the U-frame for a larger, more dependable and cost-effective working area.
Scales with laser engraving make reading them easy.
More stability is provided by ear bar fixed plate pressing rather than clamping.
The tools have attachment points for a drill, micro camera, and syringe pump.

Model Information

Model	Product Description	Adaptor	Ear bar	Three-dimensional manipulator	Holder	Base plate
68505	Stereotaxic for Rat	68021	18°	SGL-Left	68201	68864S
68508	Stereotaxic for Ra	68021	18°	Dual	68201	68864D
68511	Stereotaxic for Rat	68021	18°	Digital, SGL-Left	68201	68864S
68514	Stereotaxic for Rat	68021	18°	Digital, Dual	68201	68864D

The instrument was used in these investigations:

Reciprocal connections between cortex and thalamus contribute to retinal axon targeting to dorsal lateral geniculate nucleus.
Diao, Y., Cui, L., Chen, Y., Burbridge, T. J., Han, W., Wirth, B., ... & Zhang, J.
(2018). Cerebral Cortex, 28(4), 1168-1182.
Hypersensitivity of prelimbic cortex neurons contributes to aggravated nociceptive responses in rats with experience of chronic inflammatory pain.
Fan, X. C., Fu, S., Liu, F. Y., Cui, S., Yi, M., & Wan, Y.
(2018). Frontiers in molecular neuroscience, 11, 85.
CDYL suppresses epileptogenesis in mice through repression of axonal Nav1. 6 sodium channel expression.
Liu, Y., Lai, S., Ma, W., Ke, W., Zhang, C., Liu, S., ... & Shu, Y.
(2017). Nature communications, 8(1), 1-17.
