Portable Rat & Mouse Stereotaxic Surgery Apparatus

The portable stereotaxes support the installation of rat or mouse adapters and ear rods. Dual arm models as well as digital portable stereotaxes are available.

Overview
Specifications
References
Links

By using the same base that is perfectly fitted with adaptors and corresponding ear bars, the novel design makes it possible to execute surgery on both mice and rats more effectively. Three axes, a left-handed manipulator arm, rat and mouse nose clips, 18° and 60° ear bars, and a standard probe holder are included. Furthermore available are different subassemblies like dual arm, digital, etc.

Features:

Replace the U-frame for a larger, more reliable and cost-effective working area
There are adaptors for rat and mouse
Distinctive UP indicator to guard against improper use
More accurate and stable functioning thanks to the double-lead screw design
Relieve eyestrain by interrupting the light
Strongly securing the animal with curved nose clamp

Technical Parameters

Size of the base plate: 400 x 255 mm.
35.5mm separates the ear bar from the base plate.
Ear bar slots with 0.1mm resolution vernier.
Ear bars have a 35mm scale with a 1mm resolution.
The adaptor has a 30mm (+10mm-20mm) dorsal/ventral adjustment range with 0.1mm resolution.
Working distance in three dimensions is 80 mm, and alignment accuracy is accurate to 0.1 mm.
Vertical rotation and locking at any angle of 180 degrees.
Rotate 360 degrees in the horizontal direction and lock at any angle.
Screws with two leads ensure steady, precise, and fluid manipulation.
Variable temperatures allow for the maintenance of accuracy and flexibility.
A distinctive UP symbol in the knob's anti-clockwise direction prevents improper rotation.
To guarantee proper operation at any angle, the vertical lock and fixation knob are separated.
Replace the U-frame for a larger, more reliable and cost-effective working area.
Scales with laser engraving make reading them comfortable.
Ear bar locking plate pushing rather than clamping ensures greater stability.
The devices have attachment points for a drill, tiny camera, and syringe pump.

Model Information

Category	Model	Product Description	Remark
Stereotaxic host (without accessories)	68809	Portable Rat and Mouse Stereotaxic Instrument, SGL M	Standard configuration, non-digital model (accuracy is 100μm), including 68867S base, 68401 3-axis manipulator-left, without adaptor, ear bars, holder and mask.
	68810	Portable Rat and Mouse Stereotaxic Instrument, Dual M	Standard configuration, non-digital model (accuracy is 100μm), including 68867D base, 68401 3-axis manipulator-left, 68402 3-axis manipulator-right, without adaptor, ear bars, holder and mask.
	68811	Portable Rat and Mouse Stereotaxic Instrument, SGL M, Digital	Standard configuration, digital model (accuracy is 10μm), including 68867S base, 68409 3-axis digital manipulator-left, without adaptor, ear bars, holder and mask.

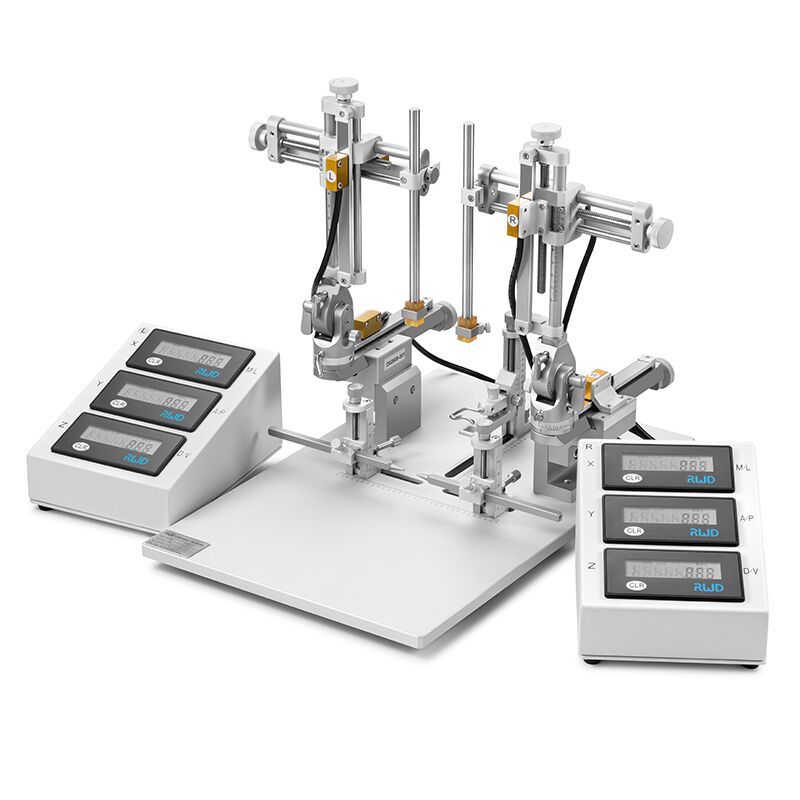

	68812	Portable Rat and Mouse Stereotaxic Instrument, Dual M, Digital	Standard configuration, digital model (accuracy is 10μm), including 68867D base, 68409 3-axis digital manipulator-left, 68410 3-axis digital manipulatorright, without adaptor, ear bars, holder and mask.
Required accessories (optional)*	68087	Mouse Adaptor	Only used for portable rat and mouse stereotaxic instrument
	68088	Rat Adaptor	Only used for portable rat and mouse stereotaxic instrument
	68301	Rat 18° Ear Bars
	68306	Mouse 60° Ear Bars
	68201	Standard Probe Holder-Corner, clamping range: 0.3-1.5mm.
	68217	Cannula Holder, clamping diameter: 3.5mm.	The clamping part is made of plastic.
	68205	Cannula Holder, clamping diameter: 3.5mm.	The clamping part is made of metal.
	68214	Ceramic Ferrule Holder, clamping diameter: 1.25mm.
	68215	Ceramic Ferrule Holder, clamping diameter: 2.5mm.
	68206	General Probe Holder, clamping range: 3-12mm.
	68218	Syringe Holder, the syringe barrel clamping range is 6mm-12mm, and the syringe needle clamping range is 0.3mm-1.5mm.
	68605	Microdrill Holder, clamping diameter: 14.5mm.	Suitable for 78001 microdrill.

*Indicates that other specifications can be selected, which can be viewed from the product catalog of RWD.

The instrument was used in these investigations:

Reciprocal connections between cortex and thalamus contribute to retinal axon targeting to dorsal lateral geniculate nucleus.
Diao, Y., Cui, L., Chen, Y., Burbridge, T. J., Han, W., Wirth, B., ... & Zhang, J.
(2018). Cerebral Cortex, 28(4), 1168-1182.
Hypersensitivity of prelimbic cortex neurons contributes to aggravated nociceptive responses in rats with experience of chronic inflammatory pain.
Fan, X. C., Fu, S., Liu, F. Y., Cui, S., Yi, M., & Wan, Y.
(2018). Frontiers in molecular neuroscience, 11, 85.
CDYL suppresses epileptogenesis in mice through repression of axonal Nav1. 6 sodium channel expression.
Liu, Y., Lai, S., Ma, W., Ke, W., Zhang, C., Liu, S., ... & Shu, Y.
(2017). Nature communications, 8(1), 1-17.

You can also visit site of the manufacturer.
