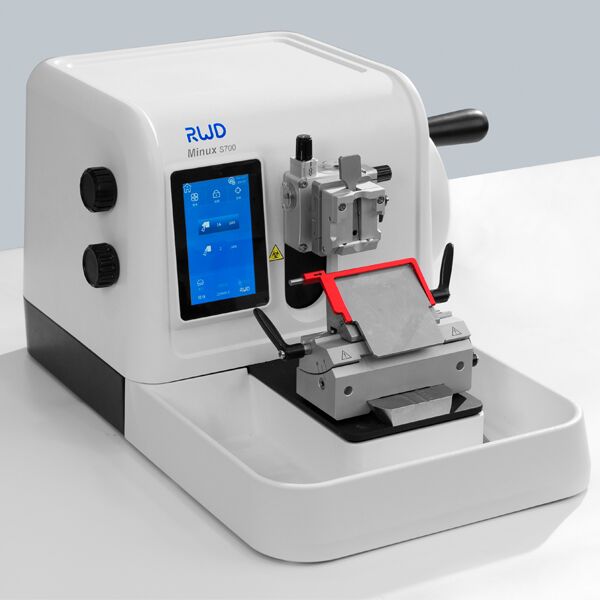

Minux® S700 Semi-Automatic Rotary Microtome

The RWD Minux® S700 paraffin rotary microtome allows you to make slices from 0.5 to 100 μm thick in semi-automatic mode. The device provides accurate and safe operation with history recording on the touch screen.

Overview
Specifications
Links

The S700 Rotary Microtome, built on the industry's best microtome machine design, allowing you to cut sections precisely, safely, and with extreme ease. It exhibits exceptional ergonomic qualities for convenient use. It is a semi-automatic design that better suits your cutting preferences.

The rotating microtome device will repeatedly produce thin, serial slices of the highest quality while working with fragile materials (brain samples, for instance). Specimen advance and retraction are more precisely controlled by a special side specimen knob and visual pointer design. Safety is improved by a handwheel double lock system, a knife ejector, and a guard.

Application field: Histopathology/Anatomical Pathology

Features & Benefits

Accurate

Accurate sampling: RWD rotary microtome machine is well-equipped with Cross roller bearings and Spindle, as well as a five-phase high-resolution Stepper motor and a Link block constructed of aeronautical aluminum, which together constitute a high-precision sample system to guarantee slice quality.

Precision positioning: RWD rotary microtome machine's revolutionary pointer identification technology allows for visual modification of the sample angle for pin-point accuracy in positioning. The knife holder's little lateral displacement also improves precision. The scale on the base makes it easy for the knife holder to locate and produce better slices.

Safe

Operator protection: The handwheel dual locking system has a lock prompt sound, a knife guard, and an ejector for the knife, allowing the operator to replace the sample and blade safely.

Intelligent

Information retrieval: RWD rotary microtome machine has a 5-inch touch screen and a history recording system that make it simple to look up previous data and address issues fast.

Convenient

Easy operation: The rotary microtome machine's German military-grade side injection knob complies with ergonomic design, making operation more coordinated and pleasant.

Easy maintenance: non-wax, unique material waste tank.

Technical Parameters

-Semi-automatic operation, motorized injection, manual sectioning.

Section thickness range:0.5 – 100 µm

0.5 – 5.0 µm in 0.5µm increments
5- 20µm in 1µm increments
20 – 30 µm in 2µm increments
30- 60 µm in 5µm increments
60- 100µm in 10µm increments

Trimming section thickness range:1 – 800 µm

1- 10µm in 1µm increments
10- 20µm in 2µm increments
20- 50µm in 5µm increments
50- 100µm in 10µm increments
100- 800µm in 50µm increments

Specimen retraction:0-250μm ajustable

Specimen Feed:28mm

Vertical Stroke:70mm

Maximum sample size:standard specimen clamp,55×50×30mm

Specimen orientation:X axis/Y axis8°,Z axis 360°

Horizontal feed speed:1800µm/s

-Maintain samples at the same angle and accomplish accurate sample positioning with the help of the proprietary sample positioning mechanism and visual pointer identification.

-Utilizing the 5-inch touch screen is simple. Easy to learn and understand, stylish and straightforward operation interface.

-The side sampling knob has been ergonomically created to enhance user comfort. The half-knife repair function streamlines the procedure, reducing time and labor requirements.

Dual handwheel locks allow the handwheel to be locked in any position. The knife guarding and retraction device, as well as the emergency stop button, improve the rotary microtome machine operator's safety.

The sectioning effectiveness is increased by the sample location memory feature and the one-click reset button.W

When remaining portion of the horizontal sampling stroke passes 1mm, an audible and visual alert will go off.

The historical record system makes information tracking and equipment utilization queries possible.

S700 Rotary Microtome Configuration

No.	Configuration	Model	Number	Note
1	Host of S700	S700	1
2	Blade holder assembly	S700-F7	1	Compatible with low and high profile blades
3	Universal clamp	S700-F3	1
4	Tool set	S700-F1	1	Screw tools, brush, etc
5	Easy of cleaning section waste tray (Large)	S700-F10	1	Easy of cleaning section waste tray (Large)
6	User manual		1
7	Power cable		1
8	Dust cover		1
Optional:
1	Standard clamp	S700-F4	1	Standard clamp

Semi-Auto VS Fully-Auto

Model	S700 Semi-Auto	S700A Fully-Auto
Section thickness setting range: 0.50 – 100 µm	√	√
Trimming section thickness setting range: 1 – 800 µm	√	√
Electric sectioning speed: 0-1800µm	√	√
Specimen retraction: 0-250µm	√	√
Specimen feed: 28mm	√	√
Vertical stroke: 70mm	√	√
Specimen orientation with zero position horizontal/vertical rotation: X/Y axis 8°	√	√
Maximum specimen size 555030mm	√	√
W x D x H: 470mm×553mm×305mm	√	√
Machine weight	28kg	36.4kg
Fully motorized and semi- motorized mode switch		√
Emergency stop button		√
Cut window function		√
Slice speed selection		√
Multiple slice modes		√
Pedals		√
