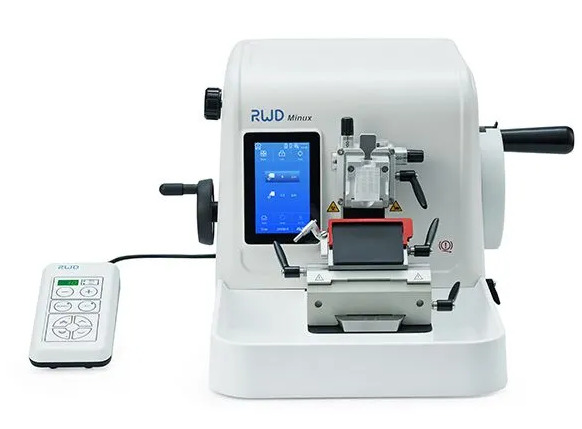

Minux® Rotary Microtome S712

The RWD Minux® S712 rotary microtome provides a blend of manual sectioning and semi-automated setup, accommodating the diverse habits of operators.

Its distinct control panel facilitates sample advancement and retraction, trimming and sectioning conversion, thickness adjustment, position memory, and a half-knife function.

Additionally, the historical record system displays operation and alarm logs on a 5-inch touch screen, enabling users to track microtome usage and streamline information management. Consequently, low-cost maintenance is attainable.

The 2-in-1 blade holder accommodates both high and low-profile blades.

Advantages of RWD Minux® S712

Precise

The precise sampling system features cross roller bearings and a screw rod, paired with a five-phase high-resolution stepper motor and a Link block crafted from aviation aluminum, creating a high-precision sampling system that guarantees section quality. The stable gantry structure design and high-hardness alloy transfer enhance the rigidity of the host, ensuring accurate hard tissue sections. The precise knife holder exhibits minimal positional change after the knife edge is altered by lateral movement. Scales on the knife holder assist in identifying the optimal position for the blade holder.

Safe

The dual handwheel lock located atop the handwheel ensures safe sample replacement. Any position can be locked to halt the handwheel, allowing it to be secured at any point, thereby enhancing user safety. The knife guard extends along the entire length of the blade to prevent potential injuries during operation.

Convenient

The unique visual pointer allows for visible angle adjustments, making sample positioning quicker and more accurate. Multiple devices can be adjusted to the same angle with ease and speed. The small handwheel injection method, combined with the side knob, facilitates slice thickness adjustments, designed ergonomically for greater comfort during operation. The single-turn sampling distance of the small handwheel can be modified to suit individual preferences. The torque at any position remains below 2.5 kgf·cm, ensuring ease of operation, making it user-friendly for extended periods.

Simple to maintain

Featuring a magnetic function, it is easy to disassemble and install. It has a large capacity and a specially coated waste tray, making cleanup effortless and reducing cleaning time to just a few seconds.

Data retrieval

Equipped with a historical record system, operational and alarm logs are displayed on a 5-inch touch screen, allowing for easy querying of microtome usage and enhancing information tracking.
