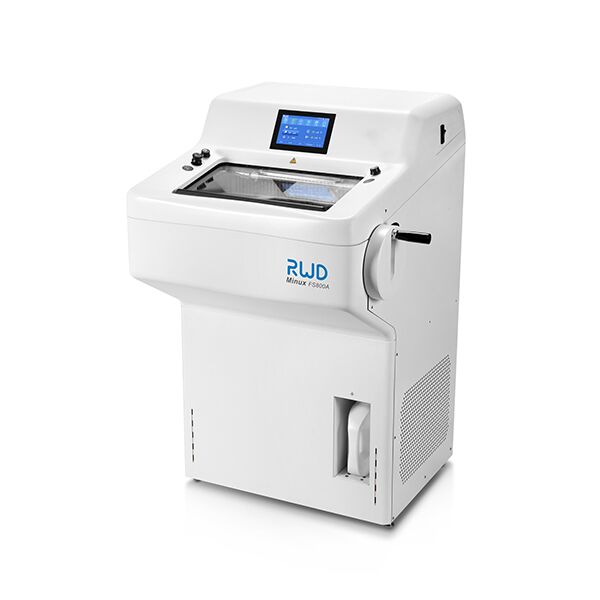

Minux?� FS800 Cryostats Semi-Automatic

The RWD Minux?� FS800 semi-automatic cryostats (UV, Specimen and Vacuum) can quickly cut tissue at low temperatures (down to -35 ?�C). They are characterized by stability, efficiency and safety for the user.

Overview
Specifications
Links

The RWD FS800 Cryostat, commonly known as the freeze microtome, is built to create frozen sections of the highest possible quality on a regular basis. It has exceptional capability and can quickly cut tissues at low temperatures (as low as -35 °C). For all research applications, including cutting-edge clinical cryo-sectioning requirements, FS800 is your best option.

Available Types:

UV: for greater user safety, huge specimen numbers, and a variety of specimen types.
Specimen: Regular design with independently adjustable temperature settings on the cabinet and the holder for the object specimen.
Vacuum: For maximum safety, a cryostat equipped with a vacuum cleaning system.

Applications:

Pathological diagnosis
Biological research
Neuroanatomical research
Pharmaceutical research

Features & Benefits

1. Stable

Temperature stability is precisely ensured by the sophisticated temperature control system, compressor, and cooling system.
Steady slice quality is ensured by a precise sample system that includes a high-precision cross rail and screw, five-phase high-resolution sampling motor, and a horizontal sampling slider constructed of aviation aluminum.

2. Safe

Using cutting-edge low-temperature UVC disinfection technology, the cabinet's interior surface and air are cleaned to effectively destroy bacteria and viruses and lower the danger of contamination by infectious materials.
Waste liquid management system: A touch screen will show the volume of waste liquid. Alarm when bottle is full to stop waste liquid from spilling and contaminating the ground.

3. Efficient

Operation efficiency: featuring a colourful touch-screen. An effective operating system combines coarse sample feeding, trimming and section switching, and slice parameter modification with a joystick.
Fast positioning: A precise positioning system with an 8° visual indicator makes it simple to change the specimen clamp's angle to the desired setting, reducing overall trimming and sample waste.
Automated sleep and wake-up: decrease waiting, automate manual tasks, and conserve energy

Technical Parameters

Model	FS800 Semi-Automated	FS800A Automated
Section thickness setting range: 0.50 – 100 µm	√	√
Trimming section thickness setting range: 1 – 800 µm	√	√
Electric sectioning speed: 0-1800µm adjustable	√	√
Specimen retraction: 0-250μm ajustable	√	√
Specimen feed: 28mm	√	√
Vertical stroke: 70mm	√	√
Specimen orientation with zero position horizontal/vertical rotation: X/Y axis 8°	√	√
Number of refrigerated sites: 15	√	√
Number of fast cooling sites: 2	√	√
Freezer refrigeration temperature: 0?�???????35?�?	√	√
Sample head minimum cooling temperature: ???50?�?	√	√
Fully automated and semi- automated mode switch		√
Emergency stop button		√
Cut window function		√
Slice speed selection		√
Multiple slice modes		√
Pedals(optional)		√

Model Information

Model	Type	UVC disinfection	Vacuum	Specimen cooling system	Note
FS800	UV	V			for large specimen numbers and varying specimen types with UVC for increased user safety.
	Specimen	V		V	Standard type with individually controlled temperature settings on both the cabinet and the object specimen holder.
	Vacuum	V	V	V	Cryostat with vacuum cleaning system for maximizing safety.
