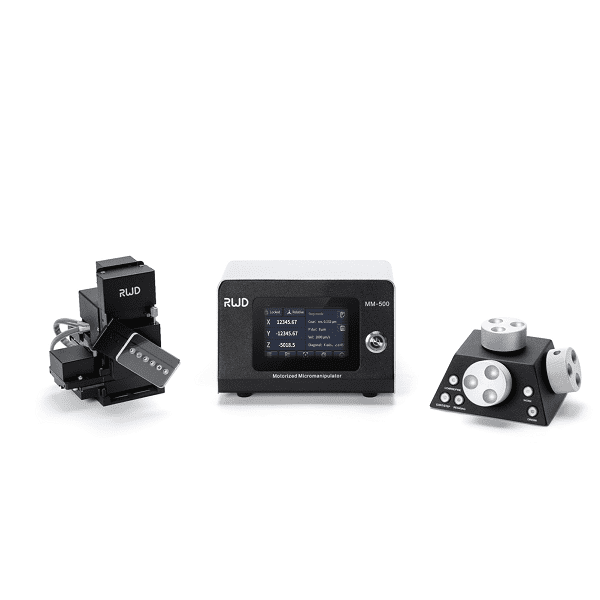

MM-500 Motorized Micromanipulator

The ultra-stable and small motorized micromanipulator RWD MM-500 is made for microinjection, in vivo and in vitro electrophysiological research, holding pipettes with high precision, and other tasks.

Multiple modes, such as continuous and step modes, general and diagonal modes, coarse and fine adjustments are supported. Researchers may easily and precisely position their equipment using the MM-500. It can hold a variety of probes, pipettes, and other objects, even ones that weigh 500g.

Main Applications:

• patch clamp electrophysiological experiments performed in vitro;
• intracellular and extracellular recording in vivo;
• ES cell nuclear transfer through microinjection in C. elegans, Drosophila, zebrafish, and mammals;
• injection into the eyeball.

Advantages

Reduce Drift to Maintain Signal Stability

During prolonged recording in patch-clamp investigations, ensure the signal stability. The MM-500 is  extremely accurate with repositioning to improve experiment stability. (One-axis, ≤1μm; three axes, ≤2μm).

Multiple Modes Make It Simple To Use

The manipulator's movement speed and range can be carefully controlled in the continuous/step mode. The speed can be changed by the researcher as needed between 0.033 μm/s and 2904 μm/s. When using the diagonal mode, you can simply change your approach angle from 1° to 89° by simultaneously moving the X and Y axes.

Position Accurately and Easily

To swiftly switch back and forth between the repeating locations for increased research efficiency, simply click the [ORIGIN] or [WORK] button.

Touch Screen, 4.3"

Featuring a spacious touchscreen and a built-in user-friendly UI interface.
