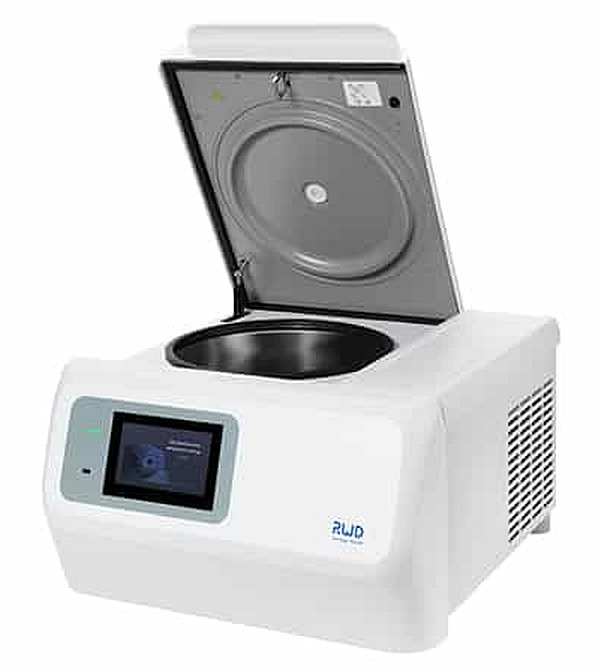

M1416R High-Speed Benchtop Refrigerated Centrifuge

The RWD M1416R high-speed benchtop refrigerated centrifuge provides intelligent centrifugation at speeds up to 18,000 rpm (31,152×g), a wide choice of rotors, and is adapted to various applications.

Overview
Specifications
Links

The RWD M1416R High-Speed Benchtop Refrigerated Centrifuge offers intelligent centrifugation, accommodating a range of applications from micro to medium throughput, with a maximum speed of 18,000 rpm (31,152×g). It provides a wide variety of rotors and adaptors, including swing-bucket and fixed-angle rotors, to satisfy diverse customer requirements.

The RWD M1416R centrifuge is a refrigerated unit capable of reaching speeds up to 18,000 rpm (31,152×g), suitable for various applications from micro to medium throughput. Its capacity ranges from 24 x 2mL to 4 x 400mL, and the plate rotor is designed to hold PCR and deep-well plates. Furthermore, the M1416R features a 7-inch touch screen that facilitates visual operation and includes a personalized account management system to ensure efficient quality control.

Advantages of M1416R High-Speed Benchtop Refrigerated Centrifuge

Extensive accessory options

Self-locking rotors allow for tool-free installation, removal, and exchange in just 3 seconds
Versatile device equipped with multiple rotors and adaptors

Ergonomically designed for ease of use

Scheduling reservations enable pre-cooling functions for streamlined experiments

Various guarantees provided

Static rotor identification feature enhances operational safety

Multipurpose functionality

Over 100 pre-programmed settings with customizable steps for continuous centrifugation.

Specifications for M1416R High-Speed Benchtop Refrigerated Centrifuge

Swing-out Rotor

Maximum Capacity: M-S4-400-P, 4*400mL

Maximum Speed: M-S4-180WS, 6300rpm

Maximum RCF: M-S4-180WS, 7188 x g

Fixed-angle Rotor

Maximum Capacity: M-F6-100CF，6*100mL

Maximum Speed: M-F24-2QG，18,000rpm

Maximum RCF: M-F24-2QG，31,152 x g

Details

Temperature range: -10℃ to +40℃

Noise: 56dB(A)

Acceleration/Deceleration ramps: 9 /10

Program Storage: 100 programs with the ability to do step programming

Dimension（W*H*D): 620*670*400 mm

Weight without rotor: 96.5kg

Order Information

Model Product Description

M1416R High-Speed Benchtop Refrigerated Centrifuge (Without Rotor)

Information about Rotors

Model	Product Description	Maximum Speed (rpm)	Maximum RCF(xg)
M-S4-400-P	4*400mL Swing-out rotor	5,000	4,696
M-S4-400-CP	4400mL Swing-out rotor (incl. 4M-A4-50 and 4*M-A9-15 adaptors)	5,000	4,696
M-S2-DWP-P	23 Standard 96-well plate (21 DWP)	4,000	2,272
M-F24-2QG	Aerosol-tight Lid , 24×2 mL tube quick- lock rotor	18,000	31,152
M-F30-2QG	Aerosol-tight Lid , 30×2 mL tube quick- lock rotor	15,200	25,830
M-F6-50QG	Aerosol-tight Lid , 6×50 mL tube quick- lock rotor	12,100	20,133
M-F30-15C	30×15 mL tube clinic rotor	5,650	4,997
S4-200-P	4200mL Swing-out rotor 4200mL Swing-out rotor	5500	5580
M-F48-2QG	Aerosol-tight Lid , 48×2 mL tube quick- lock rotor	15,200	25,314
M-F18-5QG	Aerosol-tight Lid , 18×5 mL tube quick- lock rotor	15,000	24,652
M-F8-50CF	8×50 mL tube carbon fiber rotor	14,500	24,446
M-F14-50CF	14×50 mL tube carbon fiber rotor	10,000	17,105
M-F6-100QG	Aerosol-tight Lid , 6×100 mL tube quick- lock roto	10,350	15,090
M-F6-100CF	6×100 mL tube carbon fiber rotor	15,000	24,652
M-S2-400M	Multi-function rotor	7,200	4,297
M-S4-180WS	4*180mL Swinging bucket rotor	6,300	7,188

You can also visit site of the manufacturer.
