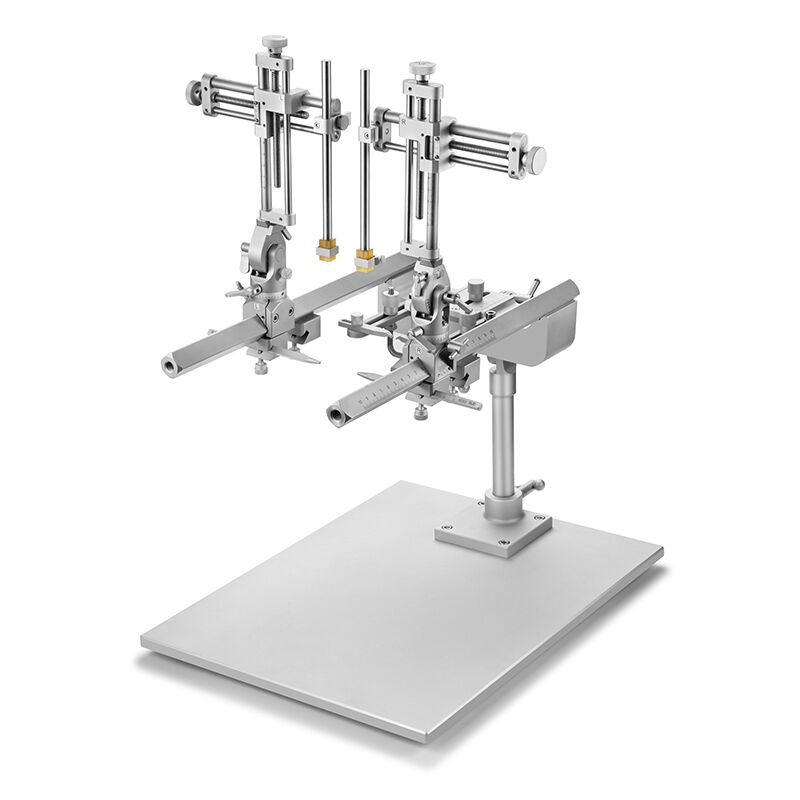

Large Animal Stereotaxic Instruments

The RWD stereotactic instruments for large animals are optimally adapted for neurophysiological experiments on cats, dogs, monkeys, pigs, etc.

Overview
Specifications
Links

Features:

The skulls of huge animals of various weights are better stabilized by a novel jaw plate design
Allows for the usage of up to six manipulator arms for separate operation
Longer movement range (±100mm) with Y-axis rail design
Distinctive UP indicator to guard against improper use
There are adaptors available for pigs, dogs, and other large animals

Technical Parameters

There are adaptors available for pigs, dogs, and other large animals.
Longer movement range: ±100mm, 1mm resolution, Y-axis slide design. Optional AP Micro-driver; 50 μm resolution on the Y-axis.
Working distance in X and Z axes is 80 mm, and alignment accuracy is 0.1 mm.
Allows for the usage of up to six manipulator arms for separate operation.
The heads of huge animals of various weights are better stabilized by the innovative jaw plate design.
Vertical rotation and locking at any angle of 180 degrees.
Rotate 360 degrees in the horizontal direction and lock at any angle.
Screws with two leads ensure steady, precise, and fluid manipulation.
Variable temperatures can be maintained while preserving accuracy and flexibility.
Several sizes of animals can fit on the extended base plate (400 x 255 mm).
An anti-clockwise UP symbol carved on the knob prevents inappropriate operation.
To guarantee proper operation at any angle, the vertical lock and fixation knob are separated.
Scales with laser engraving make reading them easy.
Ear bar locked plate pushing rather than clamping provides greater stability.
The devices have attachment points for a drill, tiny camera, and syringe pump.

Model Information

Category	Model	Product Description	Remark
Stereotaxic host (without accessories)	68813	Stereotaxic for Large Animals, SGL M.	Standard configuration, non-digital display model (accuracy 100μm), including 68868N base, 68941 2-axis manipulator-left, without adaptor, ear bars and holder.
	68814	Stereotaxic for Large Animals, Dual M.	Standard configuration, non-digital display model (accuracy 100μm), including 68868N base, 689412-axis manipulator-left, 68942 2-axis manipulator-right, without adaptor, ear bars and holder.
	68815	Stereotaxic for Large Animals, SGL M, Digital	Standard configuration, digital display model (accuracy 10μm), including 68868N base, 68944 2-axis digital manipulator-left, without adaptor, ear bars and holder.
	68816	Stereotaxic for Large Animals, Dual M, Digital	Standard configuration, digital display model (accuracy 10μm), including 68868N base, 68944 2-axis digital manipulator-left, 68945 2-axis digital manipulator-right, without adaptor, ear bars and holder.
Required accessories (optional)*	68041	Cat/Monkey Adaptor	It is suitable for large animal stereotaxic, and is generally used for cats, dogs, monkeys, etc. under 10kg. Before purchasing, please confirm the animal’s head width, distance from nose to eyes, mouth width and other information with RWD.
	68081	Dog/Monkey/Pig Adaptor	It is suitable for large animal stereotaxic, and is generally used for 10-30 kg cats, dogs, monkeys, etc. Before purchasing, ple se confirm the animal’s head width, distance from nose to eyes, mouth width and other information with RWD.
	68303	Cat/Monkey 18° Ear Bars
	68304	Cat/Monkey 45° Ear Bars
	68201	Standard Probe Holder-Corner, clamping range: 0.3-1.5mm.
	68217	Cannula Holder, clamping diameter: 3.5mm.	The clamping part is made of plastic.
	68205	Cannula Holder, clamping diameter: 3.5mm.	The clamping part is made of metal.
	68214	Ceramic Ferrule Holder, clamping diameter: 1.25mm.
	68215	Ceramic Ferrule Holder, clamping diameter: 2.5mm.
	68206	General Probe Holder, clamping range: 3-12mm.
	68218	Syringe Holder, the syringe barrel clamping range is 6mm-12mm, and the syringe needle clamping range is 0.3mm-1.5mm.
	68605	Microdrill Holder, clamping diameter: 14.5mm.	Suitable for 78001 microdrill.

*Indicates that other specifications can be selected, which can be viewed from the product catalog of RWD.
