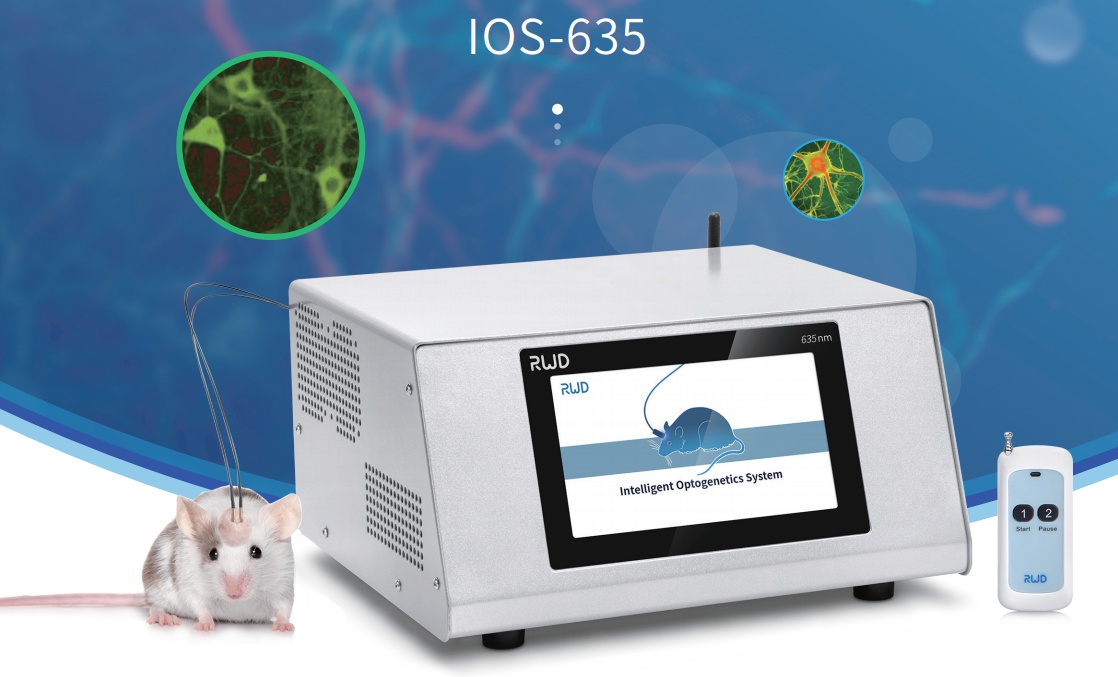

IOS-635 Intelligent Optogenetics System

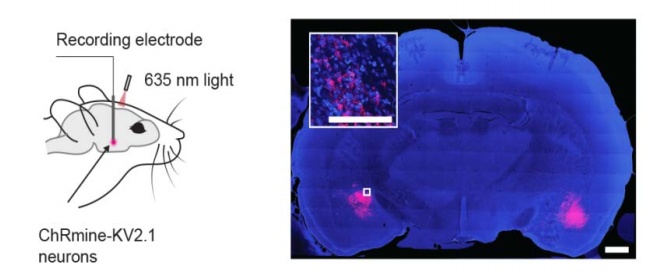

Optogenetics employs proteins that respond to light to regulate biological functions. Optogenetics is a potent method for researching complicated biological systems and the brain due to its unmatched spatiotemporal precision, high tunability, reversibility, and minimal side effects.

Based on the previous iteration of integrated machines (a laser and waveform generator combined into one), RWD's new intelligent optogenetics system has advanced further. To accommodate various experimental needs, the new system has three signal triggering options, one-click test conversion, and remote control functionality.

Edge Mode 1???

The program will operate if the trigger voltage is greater than or equal to the set value of trigger voltage; the trigger is only featured by the "on" function, and the program's duration is determined by its defined duration.

Real-time Mode 2:

The trigger is featured by the "on/off" functions; if the trigger voltage is greater than or equal to the set trigger voltage, the program will run; if it is lower than that value, the program will stop. The duration of the trigger determines the duration of the program.

Gate Mode 3???

Only square waves at a frequency of less than 500 Hz are responded to, and the running power depends on the first subprogram chosen. Other parameters are specified by the external device.
