Fusion Fiber

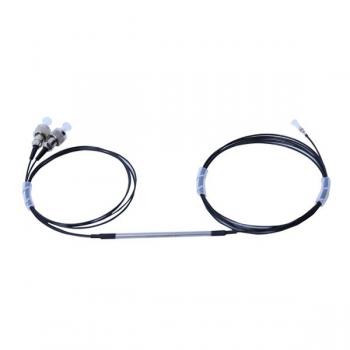

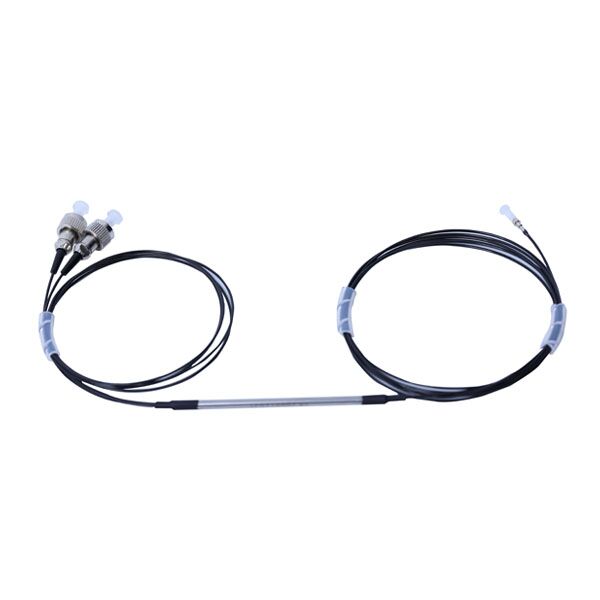

A fused fiber (or fusion fiber) RWD, consisting of a beam end and two beam splitting ends, is a solution designed to stimulate the same target brain area with two different light sources.

Overview
Specifications
Links

Using two distinct light sources to stimulate the same target brain region is possible with RWD's Fusion fiber. Two beam dividing ends and a bundle end make up the fusion fiber.

Two FC/PC ports are used as the beam splitting ends, where light is output to the beam combining end after being connected to two devices with distinct light source wavelengths. As a result, it can concurrently stimulate the same area of the brain with two different types of light.

Features???

Applicable wavelength: 400nm-1100nm
Numerical aperture: 0.22, 0.37
Core diameter: 200μm
FC/PC Adapter with φ1.25mm or φ2.5mm, the bundle end is optional for 1.5m/2m, and the beam splitting end is optional for 0.5m/1m.

Product Name	Model
Fusion fiber-200μm,NA0.22,FC/PC Adapter with Ø1.25 mm Ceramic Ferrule,bundle end-1.5m,beam splitting end-0.5m	YX0S-1*2-473-200/220-2.0-Φ1.25(FC)(150/50cm)
Fusion fiber-200μm,NA0.22,FC/PC Adapter with Ø1.25 mm Ceramic Ferrule,bundle end-2m,beam splitting end-1m	YX0S-1*2-473-200/220-3.0-Φ1.25(FC)(200/100cm)
Fusion fiber-200μm,NA0.22,FC/PC Adapter with Ø2.5 mm Ceramic Ferrule,bundle end -1.5m,beam splitting end-0.5m	YX0S-1*2-473-200/220-2.0-Φ2.5(FC)(150/50cm)
Fusion fiber-200μm,NA0.22,FC/PC Adapter with Ø2.5 mm Ceramic Ferrule,bundle end-2m,beam splitting end-1m	YX0S-1*2-473-200/220-3.0-Φ2.5(FC)(200/100cm)
Fusion fiber-200μm,NA0.37,FC/PC Adapter with Ø1.25 mm Ceramic Ferrule,bundle end-1.5m,beam splitting end-0.5m	YX0S-1*2-473-2.0-Φ1.25(FC)(150/50cm)
Fusion fiber-200μm,NA0.37,FC/PC Adapter with Ø1.25 mm Ceramic Ferrule,bundle end-2m,beam splitting end-1m	YX0S-1*2-473-3.0-Φ1.25(FC)(200/100cm)
Fusion fiber-200μm,NA0.37,FC/PC Adapter with Ø2.5 mm Ceramic Ferrule,bundle end-1.5m,beam splitting end-0.5m	YX0S-1*2-473-2.0-Φ2.5(FC)(150/50cm)
Fusion fiber-200μm,NA0.37,FC/PC Adapter with Ø2.5 mm Ceramic Ferrule,bundle end-2m,beam splitting end-1m	YX0S-1*2-473-3.0-Φ2.5(FC)(200/100cm)

You can also visit site of the manufacturer.
