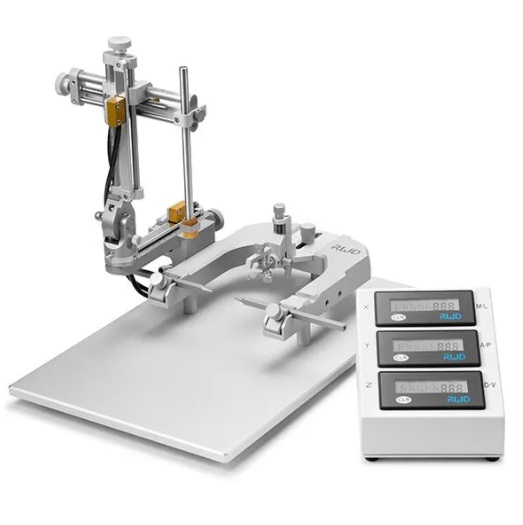

Digital Stereotaxic Instruments

Technical Details

1. There are adapters available for guinea pigs, rats, mice, and rabbits.
2. LCD digital display with 10μm accuracy and real-time displacement distance display
3. Reset with a single key; no additional readings or computations
4. No electrical interference, runs on an AA battery
5. Each dimension's working distance is 80 mm, and alignment is exact to within 0.1 mm.
6. Vertical direction: lock at any angle and rotate 180 degrees.
7. In the horizontal plane, lock at any angle and rotate 360 degrees.
8. Stable, precise, and seamless manipulation is guaranteed by dual-lead screws.
9. It is possible to retain flexibility and accuracy in a changing temperature.
10. The 400 x 255 mm extended base plate may accommodate a range of animal sizes.
11. Error-proof operation is ensured by the knob's unique anti-clockwise UP mark engraving.
12. To guarantee precise operation from every angle, the vertical lock and fixing knob are separated.
13. The knob and U-shaped frame are 28 mm apart to guarantee an exact planned lateral rotation operating space.
14. Scales with laser engraving make reading comfortable.
15. Animal heads are secured by a curved nose clamp design.
16. More stability is ensured by pressing the ear bar locking plate rather than clamping it.
17. Instruments include drills, tiny cameras, and syringe pumps.

Model Information

*Indicates that other specifications can be selected, which can be viewed from the product catalog of RWD.
