C200FL

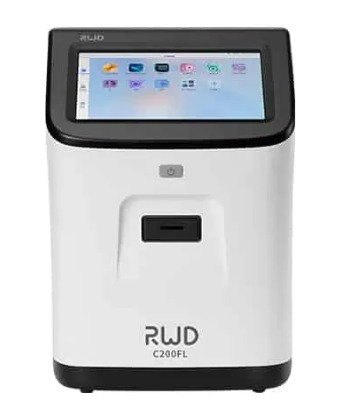

C200FL Fluorescent Cell Counter

Intelligent algorithms of C200FL Fluorescent Cell Counter by RWD effectively identify live and dead cells, enabling rapid imaging and accurate cell counting in just 5 seconds.

With the use of sophisticated optical imaging technology and clever image recognition, the RWD Fluorescent Cell Counter C200FL is a cell analysis instrument that provides accurate cell counting. Its in-house sophisticated algorithms efficiently distinguish between living and dead cells, allowing for quick imaging and precise cell counting in as little as five seconds. With a single click, the app-style counting program launches, importing samples and carrying out cell counting automatically. After counting, data can be exported that includes cell count, viability, agglomeration rate, and growth curves.

Application:

  • Tumor research - passage cell line, pre-detection of apoptosis
  • Immunological research - PBMCs, lymphocytes
  • Cell biology research - primary cells
  • Cell quality control - stem cells, CIK
  • Cell expression level detection - fluorescent protein, transfection efficiency detection

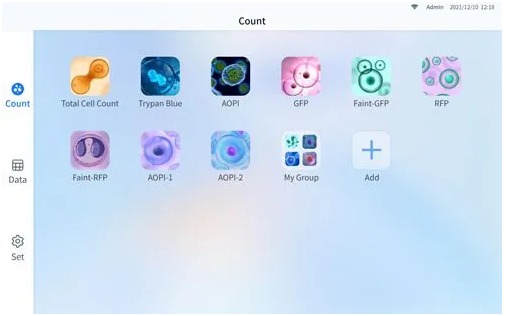

Single-click counting APP type software

Single-click counting APP type software.

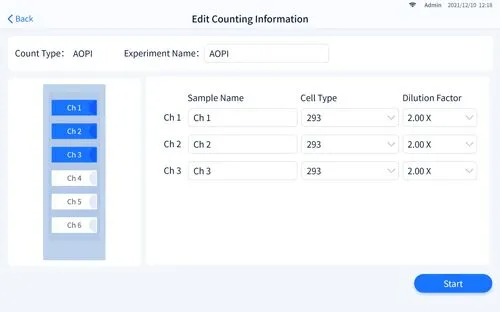

Automatic 6-channel sampling

Automatic 6-channel sampling.

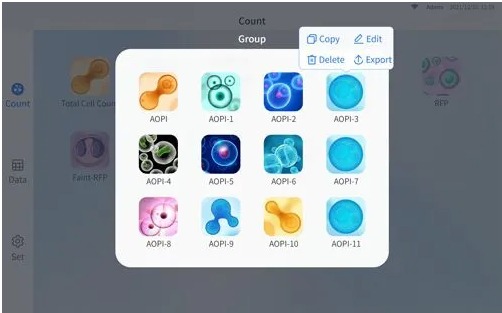

Apps can be handled as a group

Apps can be handled as a group.

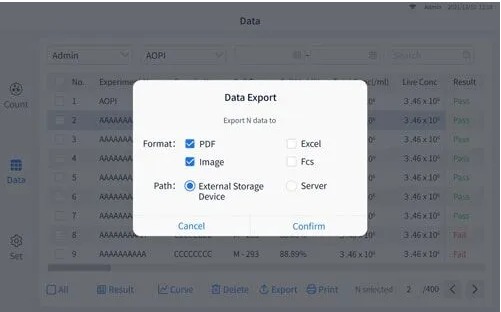

There are several data formats that can be exported

There are several data formats that can be exported.

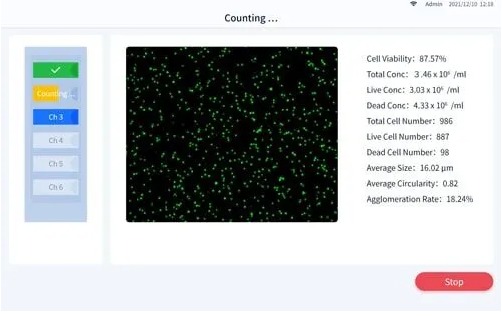

Results of the counting are displayed in real time

Results of the counting are displayed in real time.

Specifications of RWD C200FL Fluorescent Cell Counter

Optical parameters: 5X,5.0 Megapixel

Optional fluorescence:

AO/GFP:Ex: 480 / 30 nm , Em: 535 / 40 nm

PI/RFP:Ex: 525 / 30 nm, Em: 590 LP

Cell size range: 3-180 μm(Optimal:5-30 μm)

Cell concentration range: 1×10^4 – 3×10^7/mL

Counting area: 1.72 mm × 1.3 mm  (Optional 1-3 zones)

Cell counting time: 5 s/sample (bright field)

Storage: 500 G

Dimensions: 310 mm(W)*420 mm(H)*270 mm(D)

Weight: ~11 KG

Languages: Chinese and English

Display: 10.1-inch LCD touch screen

Consumables: 6-channel counting slide, 20 μL /sample

Disposable Slide

Model: DS-66

Chamber volume: 20uL

Number of chambers: 6

Dimensions of slide: 75*25*2.1mm

Dimensions of chamber: 16.2*6.2*0.2mm

Package: 50PCS/box

You can also visit site of the manufacturer.
