77002 Surgical Binocular

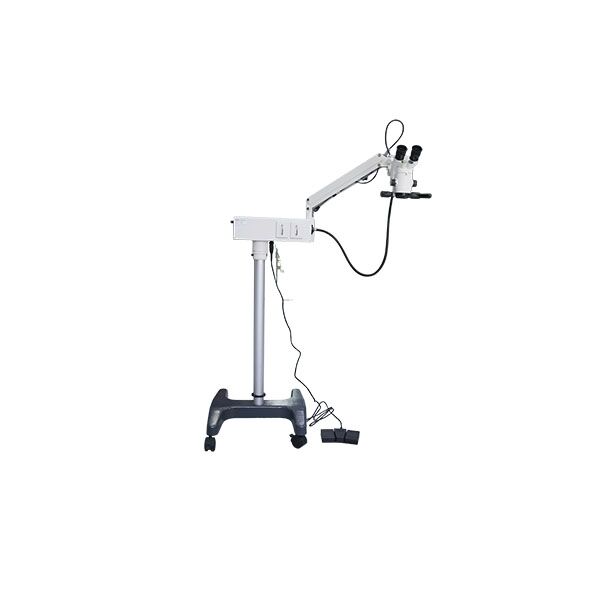

77002 Binocular Surgical Microscope

The RWD 77002 Binocular Surgical Microscope is a coaxial microscope with simple illumination for one person, compact and lightweight, meets the requirements of general microsurgery, suitable for mobile use.

A single-person binocular coaxial lighting easy operation microscope that can meet the needs of general ophthalmic microsurgery is available for transportable medical use. It is small, light, and flexible.

Features:

  • The lens has a multi-layer coating to improve transmission and stop mildew.
  • Cataract surgery can be performed with foot control and focusing, triple shift, good depth of field, and binocular fusion.
  • The application of sophisticated achromatic technology to close the focus of various light wavelengths behind the lens and improve the clarity of the operator's field of vision.
  • The machine is small and lightweight, ideal for mobile medical treatment, weighing only 41KG.
  • The machine can be adjusted to fit varied surgical demands, including ophthalmology, ent, and other surgical procedures; optional desktop elements make it more portable.
  • F250, F300, or F400 objective options.

Technical Parameters

  • Eyepiece multiplier 12.5×
  • The focal length of the objective is 200 mm
  • Working distance: 190 mm
  • Magnification of main mirror: 5.3×, 8×, 12×
  • ShiChangZhiJing ??†37 mm?????†25 mm?????†7 mm
  • Visual adjustment range ±6 D
  • The adjustment range of pupil distance is 50 mm ~ 80 mm
  • Maximum resolution 100
  • Line to/mm
  • Lighting source 12 V/100 W, cold reflection medical halogen tungsten bulb
  • Lighting type 6°+0° cold light source coaxial lighting
  • Surface illumination of coaxial illumination ≥30000 lx
  • Arm extension radius 870 mm
  • Vertical adjustment range (ground to large objective) 700 mm ~ 1100 mm
  • Fine-tune the focal stroke to 30 mm
  • Voltage AC 220 V/110V±10%, Hz?‚ /60Hz 50
  • Power 120 va
  • Fuse AC250V t1.25a, AC125V t2.5a
