76301 Illuminator

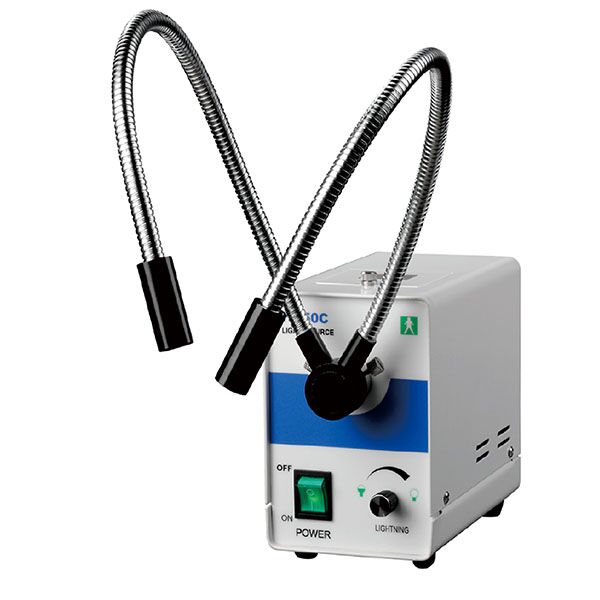

76301 Fiber-Lite Illuminator

The Fiber-Lite RWD 76301 illuminator is suitable for a variety of applications, including creating a clear field of view under a microscope in an ordinary room.

A clear field of vision under a microscope in a typical indoor setting can be ensured by using a Fiber-Lite cold light source because of its double fiber-optic coaxial lighting, good brightness of field of view, stable output voltage, safe and reliable use of the bulb, compact design, and attractive features. It also has a minimal impact on the observation indicators.

Fiber optic cold light source: The temperature of the experimental lighting apparatus should not be higher than the animal's body temperature, ideally between 25 and 30°C, to prevent vascular dilation and abnormal micro-flow. Illuminate lamplight should also not change the natural tone of the blood, as this makes it more difficult to determine the blood's oxygen saturation level. The fiber beam cold light source, which has double fiber coaxial lighting, good field brightness, stable output voltage, safe and reliable use of the bulb, convenient appearance, beautiful characteristics, and can ensure a clear field of vision under the microscope in the ordinary room, is the lighting device that is most ideal. It also has a minimal impact on the observation indicators.



Technical Parameters

Power supply input AC 230V/50Hz

Power 150 w

Bulb 21V 150W (domestic) or PHIP21V 150W halogen lamp

Rated life is about 200h

Color temperature 3200K, different color temperature tablets (3000-6500k) can be selected.

Function of sustainable dimming

Cooling by air cooling

The weight is about 3.0 Kg

Dimension length x width x height: 280x100x165mm
