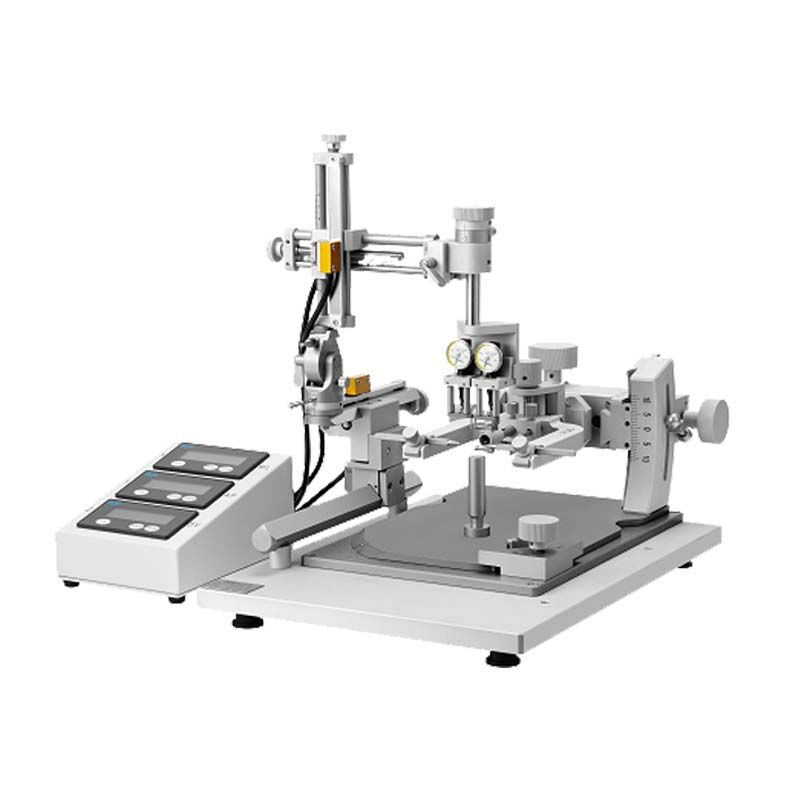

69100 Rotational Digital Stereotaxic Frame for Mice and Rat

The RWD 69100 rotating digital stereotactic device allows to manipulate the head position of the subject animal in three-dimensional space.

Overview
Specifications
References
Links

The level of the skull may be readily adjusted by rotating the mouse head with flexibility. When you inject into the venous sinus, the bleeding problem is totally solved by the accuracy of mediolateral rotation. The animal's head height can be determined using the alignment indicator. Bregma and Lambda points can be located by centering the scope. Moreover, Bregma does not require repeated setup.

Features:

Equipped with a sagittal positioning plate to reduce the skull's levelness, tilt, and alignment.
The fixation procedure in animals is not repeated thanks to apparatus, which increases experiment efficiency.
Other sites' needs can be satisfied by more precise five-dimensional space positioning.
The motor has tested the functioning arm 100,000 times, making it more durable.
The accuracy of situating the brain areas is higher and the speed of flattening the skull is faster with the 40X Central Magnifier and Alignment Indicator.
Animal mortality is low, and the danger of surgery is minimal when used in combination with an inhalation anesthetic machine.

Technical Parameters

Tri-axial displacement Range in Sagittal plate (X, Y, Z axis): 30mm

left and right rotation Angle adjustment range in Sagittal plate: ±30°

Swing the Angle up and down to adjust the range in Sagittal plate: ±10°

horizontal Angle adjustment range in Center floor: ±10°

Displacement distance of operating arm (X, Y, Z axis): 80mm

Plate size: 400mm X 325mm

The mirror is still served at magnification: 40X

Alignment Indicator resolution: 0.01mm

Model Information

Model	Product Description	Remarks
69108	Rotational Digital Stereotaxic for Mouse, SGL.M, 69110, 69113, 69114, 69133, 69137	Standard configuration, contains 69110 Mouse Anesthesia Adaptor with Tubing, 69113 15° Angle Adaptor, 69114 60°Ear Bars for Mouse, 69133 40X Central Magnifier and 69137 Alignment Indicator.
69118	Rotational Digital Stereotaxic for Mouse, Dual M, 69110, 69113, 69114, 69133, 69137
69109	Rotational Digital Stereotaxic for Rat, SGL.M, 69112, 69113, 69116, 69133, 69137	Standard configuration, contains 69112 Rat Anesthesia Adaptor with Tubing, 69113 15° Angle Adaptor, 69116 18° EarBars for Rat, 69133 40X Central Magnifier and 69137 Alignment Indicator.
69119	Rotational Digital Stereotaxic for Rat, Dual M, 69112, 69113, 69116, 69133, 69137
69136	Operating Platform for Stereotaxic
69110	Mouse Anesthesia Adaptor with Tubing(<30g)	69108, 69118 contains.
69111	Mouse Anesthesia Adaptor with Tubing(30～70g)	Not included in standard configuration, optional according to experimental needs.
69112	Rat Anesthesia Adaptor with Tubing(<300g)	69109, 69119 contains.
69114	60° Ear bars for Mouse	69108, 69118 contains.
69116	18° Ear bars for Rat	69109, 69119 contains.
69120	3-axis Digital Manipulator, Left Hand	69108, 69118, 69109, 69119 contains.
69121	3-axis Digital Manipulator, Right Hand	69118, 69119 contains.
69207	Attachment for Rotational Digital Stereotaxic Holder

The instrument was used in these investigations:

blocks bursting in the lateral habenula to rapidly relieve depression.
Yang Y, Cui Y, Sang K, Dong Y, Ni Z, Ma S, Hu H.
Nature. 2018 Feb 14;554(7692):317-322.
Astroglial Kir4.1 in the lateral habenula drives neuronal bursts in depression.
Cui Y, Yang Y, Ni Z, Dong Y, Cai G, Foncelle A, Ma S, Sang K, Tang S, Li Y, Shen Y, Berry H, Wu S, Hu H.
Nature. 2018 Feb 14;554(7692):323-327.
The interhemispheric CA1 circuit governs rapid generalisation but not fear memory.
Zhou H, Xiong GJ, Jing L, Song NN, Pu DL, Tang X, He XB, Xu FQ, Huang JF, Li LJ, Richter-Levin G, Mao RR, Zhou QX, Ding YQ, Xu L.
Nat Commun. 2017 Dec 19;8(1):2190.

You can also visit site of the manufacturer.
