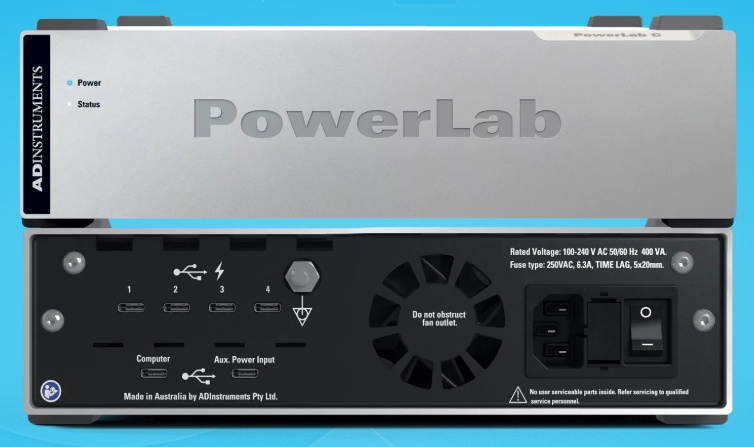

PowerLab C - modular digital data acquisition device

For researchers wishing to invest in adaptable, dependable solutions for the present and the future, PowerLab C serves as the central component of a modular system with unmatched flexibility.

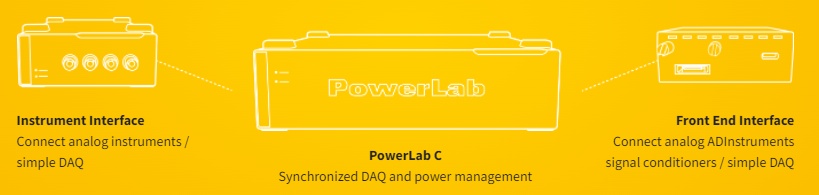

Modular System Options

Key Features of PowerLab C

Analog Compatible

PowerLab C integrates data from up to four C Series compatible USB-C devices and is based on contemporary digital architecture. The Instrument Interface and the Front End Interface are the first two of ADInstruments' products that are compatible with the C Series. These interfaces, when coupled with a PowerLab C, enable the seamless integration of any analog technology, including ADInstruments, with sub-S synchronization and data streaming into a single software platform (LabChart 8 or LabChart Lightning) for analysis. Therefore you may make investments for the future while still using your lab's current tools!

Digital Framework for the Future

ADInstrument team is preparing a full line of C Series digital DAQ devices in the future, allowing you to sample data with unmatched accuracy and time synchronization throughout all areas of your research.

Modular

Gives you access to a flexible data gathering solution that you may expand as your research needs change.

• Make a straightforward configuration with one device linked to a computer using a C Series Interface.

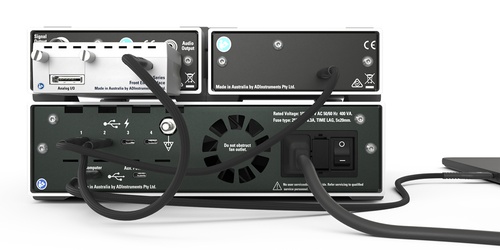

• With a PowerLab C, connect numerous devices using C Series Interfaces.

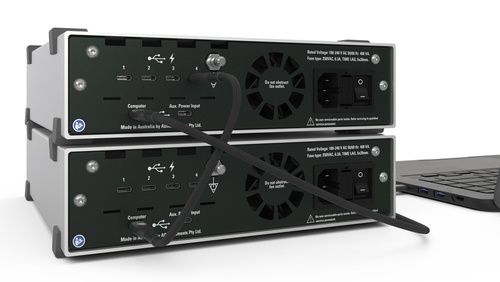

• For even more sample capacity, you can connect multiple PowerLab C devices in a chain.

Powerful and Portable

Unique power management solutions from PowerLab C enable more portability and system customisation.

• For enhanced portability in various experimental configurations, can be powered by a laptop, mains, or portable battery pack.
• Other USB-PD certified devices can be powered... It is the most potent USB-C power delivery device available, which is a fun fact!
• Advanced power management for up to 4 devices, each consuming 100W.

C Series Interfaces

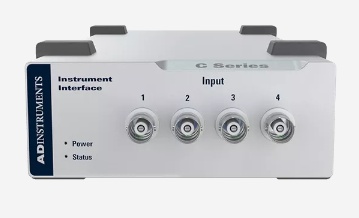

Instrument Interfacece PLCI1

Gives the PowerLab C access to 4 channels of input from any analog instrument. Up to 100kHz sampling on 4 channels. 20mV to 10 V range.

Configuration Options

With PowerLab C

Benefits from sub-µS time synchronization with other C Series compliant devices and adaptive mains filtering.

Connect directly to computer

Excellent choice for straightforward setups that just need one instrument interface.

Front End Interfacece PLCF1

Translates analog data from current (and most legacy) ADInstruments Front-Ends, like Bridge Amps and Bio-Amps, into digital samples that the PowerLab C can use. 4 channels at 100 kHz or up to 8 channels at 50 kHz. available in 1, 2, 4, and 8-channel versions (different cables).

Configuration Options

With PowerLab C

Adaptive mains filtering, sub-µS time synchronization with other C Series compatible devices, and sufficient power for any Front End are all advantages.

Connect directly to computer

Ideal for quick setup; does not work with octal front ends.

Hardware for Data Collection that Leads the Industry

The series of data collection products from ADInstruments is designed for unmatched precision and accuracy in data capture. With specialized DAQ gear, which includes DAQ devices, transducers, instruments, and signal conditioners, you may maximize your research potential. The core of this modular system is the PowerLab platform, which offers unmatched configuration and flexibility for data collecting applications in both science and teaching.

PowerLabs' integration of the DAQ system makes it easier to convert physical phenomena into digital signals, calibrate measurement apparatus, and condition signals. Acquiring data is precise and trustworthy thanks to high sampling rates. LabChart DAQ software and PowerLab work together smoothly to provide comprehensive data analysis, automation, and real-time data recording that significantly outperforms that of conventional data loggers.

The PowerLab C is a high-quality, future-proof DAQ device. Unparalleled time synchronization across all digital input modules is made possible by contemporary digital signal architecture and USB-C. Analog signal compatibility with any current analog input devices or measurement applications is also made possible by integration with our Instrument and Front-End Interfaces. Your workflow will advance in the future with the help of ADInstruments' line of data collecting devices and PowerLab C.
