Perivascular and Tubing Flow Systems

Any combination and configuration of perivascular flowmeter or tubing flowmeter modules can be accommodated by one or two channel systems, even keeping a channel empty to accommodate the addition of a second flowmeter module in the future.

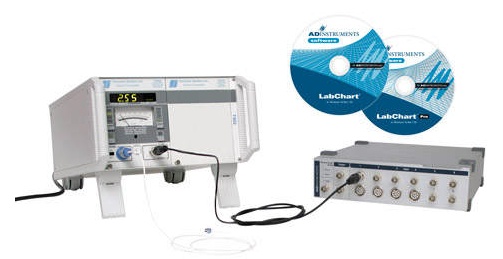

System Components:

• PowerLab 8/35
• LabChart Pro software
• One or Two Channel Perivascular/Tubing Flowmeter
• BNC to BNC Cable (1 m) (2)

To measure blood flow, an appropriate Flowprobe is placed around a single vessel and utilized in conjunction with the Transonic Perivascular Flowmeter. There are flowprobes for all artery types, acute or chronic research, and a variety of animal species, from mice to pigs and sheep.

To measure fluid flow in laboratory tubing, the Transonic Tubing Flowmeter can be coupled with inline flowprobes. They already have the correct calibrations for the temperature, flow rates, perfusate solutions, and tube type. Please talk to your ADInstruments salesperson about your needs before purchasing flowprobes and flowsensors separately.

Configurations

One Channel Perivascular Flow System

PL3508B11

With appropriate Flowprobes that are exterior to the vessel, you may measure the perivascular blood flow from a single type of vessel in a variety of animal species.

One Channel Tubing Flow System

PL3508B12

Using the appropriate Flowsensors, determine the tubing fluid flow from a single laboratory tube.

Two Channel Perivascular Flow System

PL3508B13

Take two measurements of the perivascular blood flow from a variety of animal species using appropriate Flowprobes that are exterior to the vessel.

Two Channel Tubing Flow System

PL3508B14

Using the appropriate Flowsensors, measure the tubing fluid flow from two different laboratory tubes.

Two Channel Tubing/ Perivascular Flow System

PL3508B15

Measure the tubing fluid flow from a single laboratory tube as well as the perivascular blood flow in a single blood vessel from a variety of animal species using compatible Flowprobes and Flowsensors.

Features

• System for comprehensive flow analysis and acquisition
• Incredibly precise volume flow measurement
• The gold standard in ultrasound transit-time technology
• Analog outputs for a direct PowerLab connection
