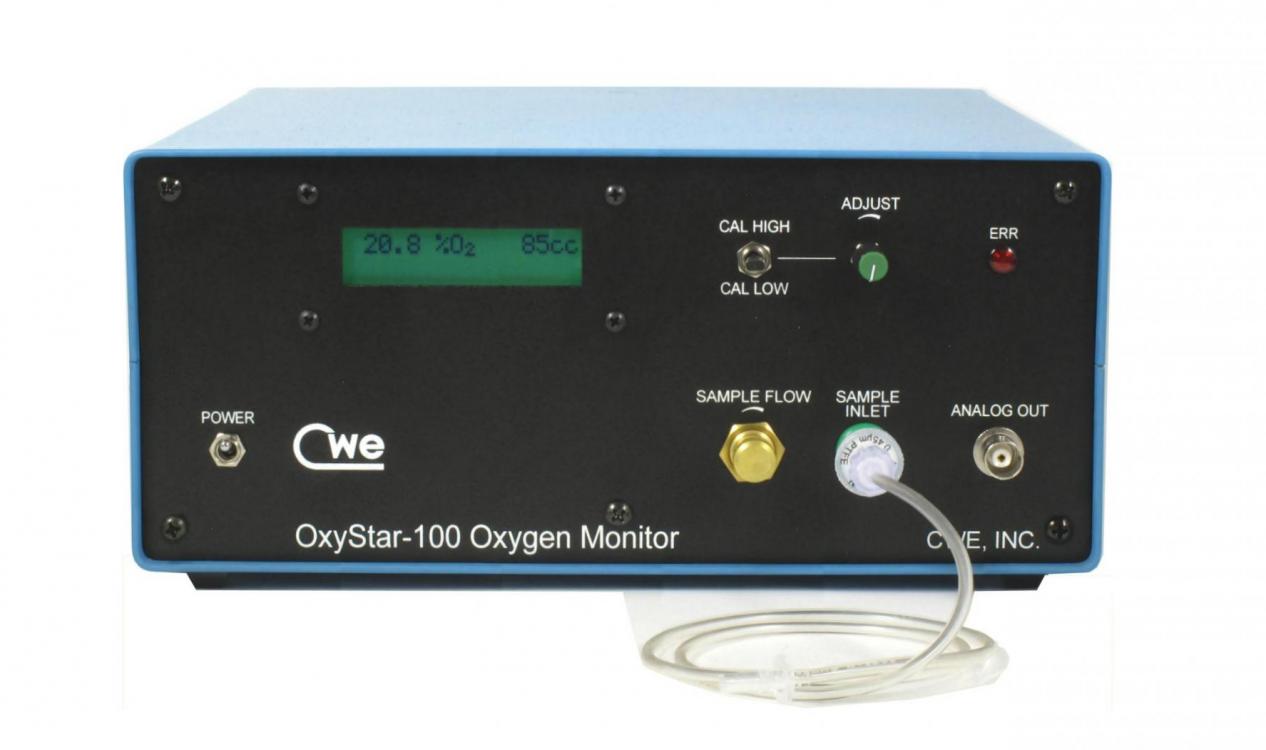

OxyStar-100 - Fast-Response Respiratory Oxygen Measurement

Features:

• O2 analyzer with high accuracy and quick reaction
• Because the sample flow can be adjusted between 10 and 200 ml/min, tests of respiratory oxygen can be performed on both small and big animals
• Main applications include research of hypoxic gases, respiratory monitoring, and general laboratory use

The sophisticated paramagnetic oxygen transducer used by CWE's OxyStar fast response O2 monitor is totally digital in nature. A straightforward two-point approach is used for calibration, often using nitrogen (for 0.0%) and room air (20.9%). Over the course of its full measurement range, the analyzer provides high linearity and stability.

Simple one-knob calibration, an analog voltage output signal, and a serial data output for remote monitoring or data collecting are all standard features of the OxyStar. Rapid changes and trends are displayed over three user-selectable ranges in a bar-graph format. Standard Luer-loc fittings are used for the sample inlet and outflow connections. Together with sample tubing, the instrument also includes an accessory pack of tubing and adapter fittings for providing customized sample tubing configurations.
