Model 3500 16-Channel Extracellular Differential Amplifier

The 16 high-gain, low noise, fully functional extracellular amplifier channels of the Model 3500 16-Channel Extracellular Differential Amplifier are intended to amplify microvolt-level input signals.

Overview
Specifications
Links

16 CHANNELS. TOUCH SCREEN. COMPUTER CONTROL.

Key Features:

Low Noise: 1 µV p-p
Flexible: Touch Screen and Computer Control
Integrated MATLAB, LabVIEW Drivers

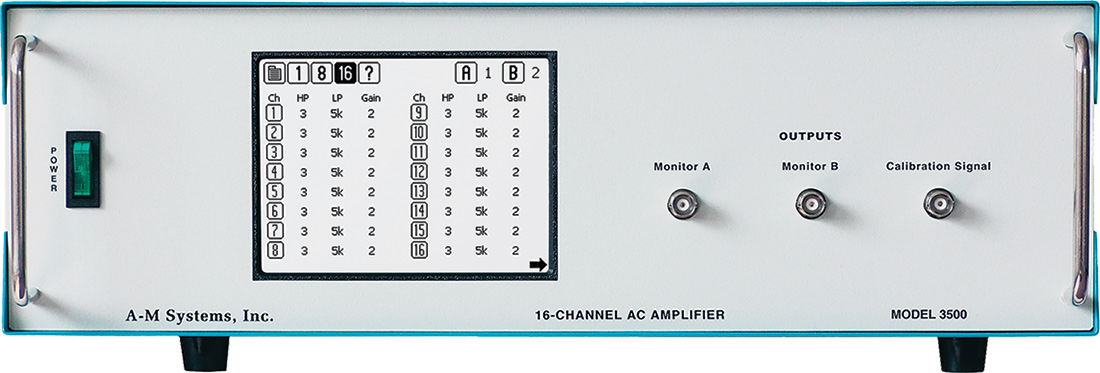

The Model 3500 has a front panel touch screen, 16 separate channels, or amplifiers, computer control capabilities, and an integrated calibrator.

The front panel BNC signal monitors are convenient and allow users to readily monitor activity on any two channels.

A solitary computer software can manage numerous devices and channels.

The Model 3500 offers:

13 gain settings from x2 to x20,000
8 high-pass filter settings from 0.3 Hz to 500 Hz
8 low-pass filter settings from 100 Hz to 20.0 kHz
TTL Control of instrument mode
Twin stimulation busses to pass current
Channel Monitors
Built-In Calibration signal
Common Reference Bus
Blanking
PC control capability
MATLAB® and LabVIEW SDK and drivers available
3U rackmount enclosure accommodates all 16 channels

Model 3500 Control Software

Software for Windows control is an optional feature of the Model 3500. Through a USB port (cable included), this program manages every aspect of the amplifier.

A real-time notepad that records modifications to parameter settings or annotations written by experimenters is provided by the application, which also allows for the storage of an infinite number of 16-Channel parameter files.

Specifications of Model 3500 16-Channel Extracellular Differential Amplifier

Noise

Voltage, fB = 10 Hz-10 kHz, typical: 1.0 µV, p-p

Offset Voltage

Average Drift, typical: ±4.0 µV/Deg C

Average Drift, maximum: ±30.0 µV/Deg C

Bias Current

Initial Bias Current, maximum: ±0.4 nA

Offset Current

Input Offset Current, maximum: ±0.4 nA

Input Impedance

1012 Ω || 4 pF

Inter-channel Crosstalk

100 dB at 1 kHz

Input Voltage Size

VDC: 1 Volt

VAC: Gain / 10 Volts

Common Mode Rejection (CMR): 100 dB

Rated Output

Voltage Output: ±11 V

Output Resistance: >100 Ωs

Low Cut-Off Filter

Cut-Off Frequencies: 0.3, 1.0, 3.0, 10.0, 30.0, 100, 300, 500 Hz

Cut-Off Rate: 40dB/decade

High Cut-Off Filter

Cut-Off Frequencies: 0.1, 0.3, 0.5, 1.0, 3.0, 5.0, 10.0, 20.0 kHz

Cut-Off Rate: 40 B/decade

Notch Filter

Center Frequency: 50 Hz or 60 Hz

Rejection: >35 dB

Gain

13 values from x2 to x20,000

The Model 3500 includes:

USB Cable: Type A to Type B
16 40-inch input cables
Control software
Operator's manual
Rack mount hardware
Power supply
