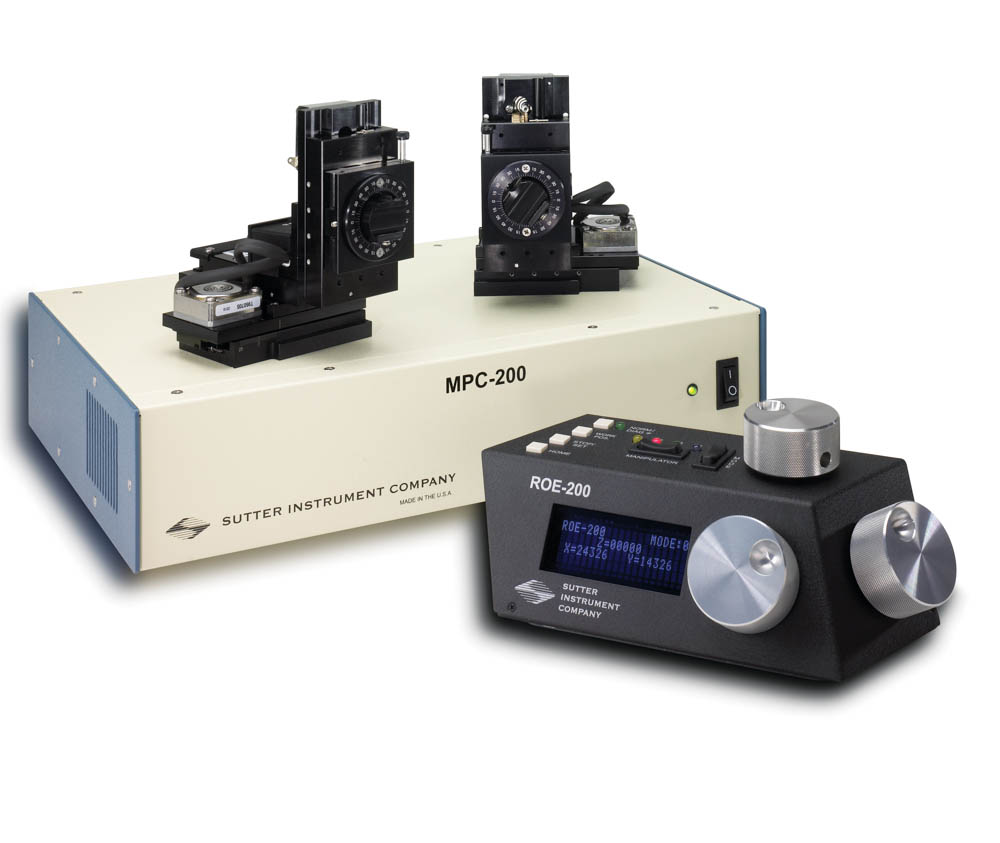

MPC-200 (MPC-325/MPC-365/MPC-385) - multi-arm controller and ROE-200

The complexity of neurobiological experiments is rising. Multiple manipulators are frequently required, which increases prices and takes up space. Your issues can be resolved with the MPC-200. It is the sole controller capable of managing two manipulators. Designed with dual-machine support and improved around the MP-225, MPC-200 utilizes compatible manipulator mechanisms like MP-285 (MPC-385) and MP-225 (MPC-325). The controller automatically recognizes the connected components; further setting is not necessary.

Two controllers can be joined to create a system that allows up to four manipulators to be operated from a single ROE-200 if two manipulators are insufficient. This qualifies the system for experiments that are moderately complex.

The Sutter MPC-200 does not produce any electromagnetic hum. DC current is used to operate the manipulators. The optional manipulators that are attached to the controller don't have breaker motors, which could be noisy.

There is a fast automatic pipette change provided (accelerated Home and Work functions). The same interface as the MP-225 controller is used for operation automation, however it is quicker.

For those who favor manual pipette changes, there is a rapid manual ROE mode. In the accelerated mode, all actions are carried out as quickly as they can be.

The MPC-200 can be ordered alone or as a component of the MP-385, MP-365, or MP-325 systems for flexibility.

Features of the MPC-200 controller:

• Two stepper motors are controlled by one ROE wheel
• Automatic equipment detection
• Combining two controllers to use one ROE to control four manipulators
• Straightforward user interface
• For quick manual placement, use the faster mode
• Modes (speed/precision, diagonal, quick mode) are simple to choose between
• Shown are X, Y, Z, mode, and the active arm
• Positioning at home and work automatically
• More rapid positioning than earlier systems
• Definition of the 4th axis angle using DIP switches
• A simple USB interface
• Switch manipulators with toggles
• Active manipulator display using LCD and LED
• Dependable performance without drift
