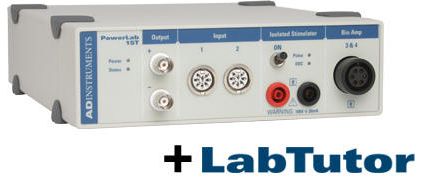

PowerLab 15T

The PowerLab 15T is capable of recording biological signals at a high sampling rate (up to 100,000 samples per second). It can be used for a variety of natural science workshops.

Overview
Specifications
Links

PowerLab is a data acquisition (DAQ) tool designed for accurate, dependable, and consistent data collecting.

PowerLab, which was created in 1985, has served as a dependable tool for a whole generation of researchers and teachers, providing a quick and adaptable solution for practically all kinds of physiological data collection.

PowerLabs is compatible with instruments, signal conditioners, and transducers supplied by ADInstruments and many other top brands, and it can record at speeds of up to 400,000 samples per second continuously to disk (aggregate).

PowerLab for Education

The best DAQ option for experiments in biology classes. PowerLab facilitates interactive, hands-on learning with a straightforward setup and high-quality data. Will support students' heavy and frequent use while maintaining the correctness and dependability of the data.

The T Series PowerLab is a reasonably cost, high-quality DAQ device with a two-channel bio amplifier that is entirely isolated, an isolated stimulator, independent non-isolated analog inputs, and a differential-mode analog output.

PowerLab 15T

A dual Bio Amp, an isolated stimulator, and two analog inputs are included in the entry-level integrated data recording system. Each channel will have a separate ADC to maintain perfect data synchronization.

Product codes:

PL26T04 PowerLab 26T (LTS)
PL15T02 PowerLab 15T (LTS)

	26T	15T
Included Software	None, LabChart, LabStation or Lt purchased separately	None, LabChart, LabStation or Lt purchased separately
Data communication	USB 2.0	USB 2.0
Trigger Input	Yes	No
Analog input channels	4	2
Single ended inputs	4	2
Differential inputs	4	2
Input voltage range	± 20 mV to ± 10 V	± 20 mV to ± 10 V
Data Resolution	16 bit	16 bit
Min sampling rate	1 S/10 min	1 S/10 min
Max sampling rate per channel	100 kS/s	100 kS/s
Input crosstalk	> 90 dB	> 90 dB
Frequency response	- 3 dB (37 kHz, 10 V)	- 3 dB (37 kHz, 10 V)
CMRR	>95 dB @100 Hz, 20-100 mV	>95 dB @100 Hz, 20-100 mV
Input impedance	1 MΩ @ 150-200 pF	1 MΩ @ 150 pF
Output amplifier	Yes	Yes
Output channels	1	1
Output resolution	16 bit	16 bit
Output voltage ranges	± 200 mV to ± 10 V	± 200 mV to ± 10 V
Digital output channels	8	0
Digital input channels	8	0
Built-in bio-amplifier	Yes	Yes
Safety rating	IEC60601-1	IEC60601-1
Bio-amplifier channels	2	2
Amplification range	± 200 µV to ± 20 mV	± 200 µV to ± 20 mV
Bio-amplifier CMRR	110 dB	110 dB
Isolated stimulator	Yes	Yes
Isolated stimulator current range	0-20mA	0-20mA
Pulse duration	50 – 200 μs	50 – 200 μs
Pulse rate	Software selectable	Software selectable

A USB 2 or 3 interface is necessary for a PowerLab to connect to your PC.

LabChart 8 or LabChart Lightning software for research, or LabStation, Lt, or LabChart for Education software for teaching, are both compatible with PowerLabs. Most of the time, any desktop or laptop PC or Mac with a current AMD or Intel processor and 2 Gb or more of system memory will be adequate. Please see the system requirements for LabChart for more specific details.

You can also visit site of the manufacturer.
