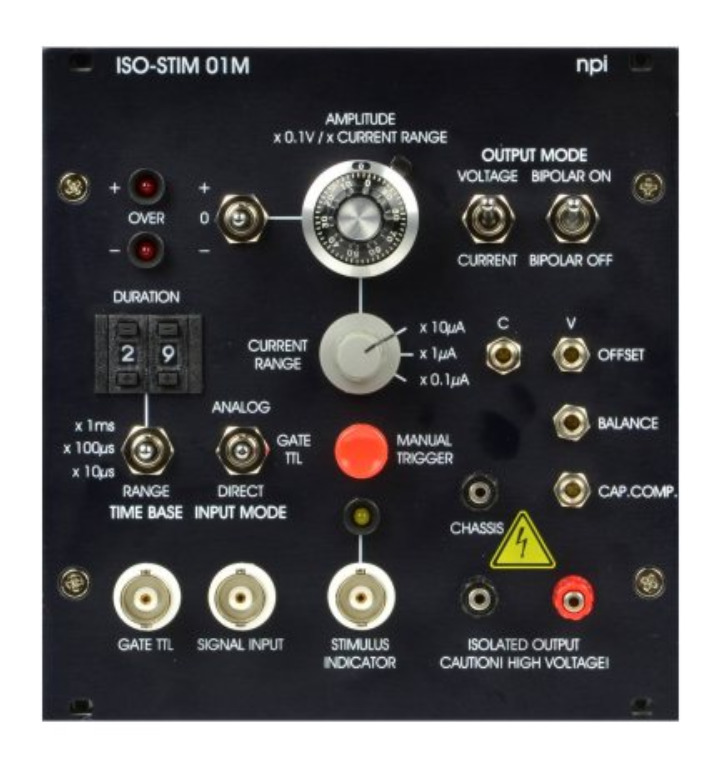

ISO-STIM-01M – Isolated Stimulator Module

Npi's ISO-STIM-01M isolated stimulator module provides bipolar stimulation capable of delivering up to +/- 100 V (+/- 10 mA).

Advantages of the ISO-STIM-01M

No batteries required
ISOLATED OUTPUT
Three input modes: ANALOG, GATE TTL, DIRECT
Stimulus AMPLITUDE adjusted via a three-digit control and a RANGE switch (CURRENT) or through an external source, such as a data acquisition system
Stimulus duration configured using a two-digit control from an internal digital timer (10 µs to 99 ms) or via an external source
Stimulus polarity determined by a switch (+, 0, -) or by a data acquisition system
Current (±10 mA) or voltage (±100 V) source output
“Overrange” and “active” LED indicators
Capacitance compensation for electrode capacitance

Combine with

for a comprehensive system for stimulating, as well as for extracellular and intracellular recording.

INPUT OPERATING MODES: DIRECT, ANALOG TRIGGER, TTL TRIGGER, selectable with toggle switch

FUNCTION MODES: voltage source, current source, selectable with toggle switch

SOURCE RANGES: ±10 mA (current source), ±100 V (voltage source), selectable with toggle switch

TIME RANGE FACTORS: x10 µs, x100 µs, x1ms, selectable with toggle switch, time range up to 99 ms

AMPLITUDE POTENTIOMETER: 3 digits, ±10 V or ±10 mA max., polarity selectable with toggle switch

CURRENT RANGE FACTORS: x0.1 µA, x1 µA, x10 µA, selectable with toggle switch

TIME POTENTIOMETER: 2 digits, 0 – 99 as multiplication factor selectable

INPUT VOLTAGE RANGE: ±10 V, amplified internally with gain of 10 (voltage source) or gain of 1 (current source)

OUTPUT VOLTAGE: ±100 V max., isolated

OUTPUT CURRENT: ±10 mA max., isolated

ISO-STIM 01M-100 Stimulus isolation module (+/-100V, +/- 10 mA), with bipolar stimulus output, width = 2
ISO-CAB-M Cable set for connecting the stimulation electrode
